JBL CSS-1S/T Compact 5.25" 2-Way Loudspeakers - Pair
JBL CSS-1S/T Compact 5.25" 2-Way Loudspeakers - Pair
JBL CSS-1S/T Compact 5.25" 2-Way Loudspeakers - Pair
By JBL Professional

JBL CSS-1S/T Compact 5.25" 2-Way Loudspeakers - Pair

Write a Review
Part #:
CSS-1S/T
Model #:
CSS-1S/T-PAIR
$320.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The JBL CSS-1S/T is a versatile, compact loudspeaker designed for use on 70V speaker lines, or 8 ohm direct mode and produces full-range sound quality for foreground or background music.

Description

JBL CSS-1S/T Compact 5.25" 2-Way Speakers

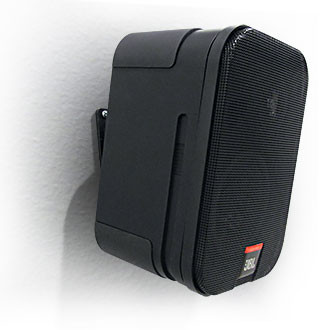

The rugged enclosure is fitted with an included, easy-to-install ball-type wall-mount bracket that can pivot to aim the speaker in a variety of directions, or the speaker can be aimed straight out from the wall. The flat bottom surface of the cabinet allows the speaker to be set on a surface such as a shelf.

A multi-tap, multi-voltage transformer provides taps of 10 and 5 Watts when driven from a 100V distributed speaker line and 10, 5 and 2.5 Watts when driven from a 70V distributed speaker line. Tap selection is accomplished via a switch that is accessed from the back panel. The speaker has a power handling of 60 Watts continuous average pink noise (100 hrs continuously) when set in its 8 Ohm Direct setting.

Features
  • 10 watt multi-tap transformer for 100V or 70V distributed speaker lines
  • 8 ohm direct setting
  • Included wall-mounting brackets
  • Professional drivers and network

Specifications
Frequency Range 85 Hz – 18 kHz
Power Capacity 60 Watts
Maximum SPL 106 dB at 8 ohm direct setting
Nominal Coverage 120º H x 120º V
Nominal Impedance 8 ohms (in 8Ω DIRECT mode, selectable on back panel)
Transformer Taps 10W, 5W (& 2.5W @ 70V)
Crossover Frequency 4.3 kHz
LF Driver 135 mm (5.25") low frequency driver
HF Driver 19 mm (0.75") polycarbonate dome tweeter
Dimensions (H x W x D) 9" (229 mm) x 6.3" (159 mm) x 5.6" (143 mm)
Net Weight 4.5 lbs (2 kg)
Shipping Weight (Pair) 10.5 lbs (4.8 kg)
