Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849.

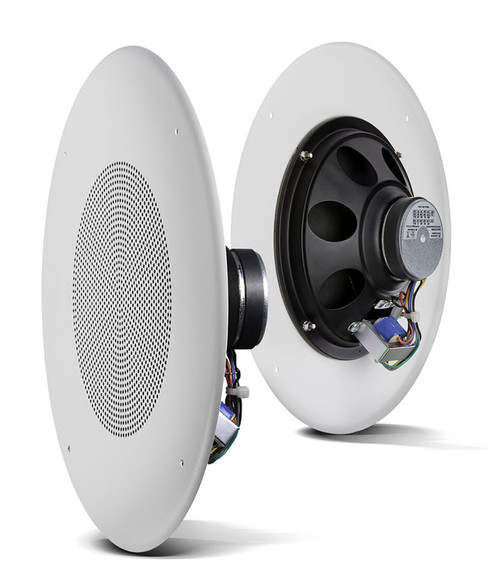

| Driver Size (Dual-Cone) | 8" (200 mm) |
|---|---|
| Driver Sensitivity (Mid-Range) | 96 dB |
| Frequency Range (-10 dB) | 55 Hz – 16 kHz |
| Installed in CSS-BB Backcan | 100 Hz – 16 kHz |
| Coverage (2 kHz) | 120° |
| Driver Continuous Power Handling | 15W |
| 100V Taps | 5W, 2.5W, 1.3W |
| 70V Taps | 5W, 2.5W, 1.3W, 0.7W |
| 25V Taps | 5W, 2.5W, 1.3W, 0.7W |
| Transformer Insertion Loss | 1.5 dB Maximum |
| Transformer Connection | Bare Wire |
| Motor Mass | 0.44 lbs (0.2 kg) |
| Safety Agency | Suitable for use in air handling spaces per UL1480, UL2043, NFPA 90 & NFPA 70, when installed with corresponding UL Listed backcan, below. S7232/UL Listed, Signaling Speaker. Transformer UL registered per UL1876. In accordance with IEC60849/EN60849 |
| Matching CSS Backcan | CSS-BB8 (0.15 cu ft) |

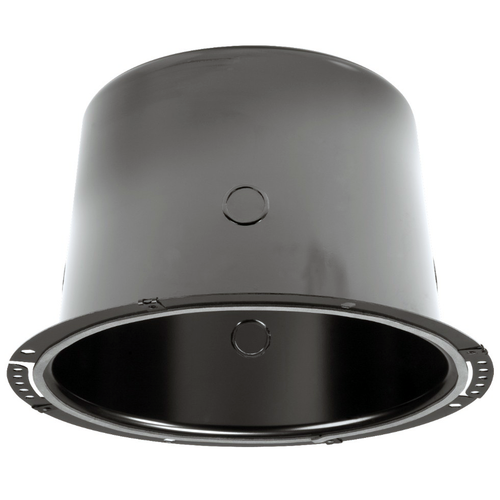

| Other Compatible Backcans | MTC-81BB8 (0.26 cu ft) MTC-200BB6 (0.5 cu ft) MTC-300BB8 (1.0 cu ft) |
| Included Accessories | (4) M4 x 1.57" sheet metal screws attaches speaker/driver/transformer assembly to backcan |
| Bolt Mounting Circle to Backcan | 4 Points on 11.25" (286 mm) Diameter |
| Cutout Diameter Open-back | 8.5" (216 mm) |
| In CSS-BB Backcan | 11.7" (295 mm) |
| Depth (Behind Grille) | 2.8" (71 mm) |
| Grille Diameter | 12.9" (327 mm) |
| Net Weight (ea) | 2.8 lbs (1.27 kg) |
| Shipping Weight (ea) | 4.3 lbs (1.94 kg) |
