JBL EON ONE All-in-One Linear Array PA System with 6-Channel Mixer (Discontinued)

Part #:
EON ONE
Model #:
EON ONE
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The JBL EON ONE combines the superior sound quality of a professional system with the convenience and streamlined look of a compact, column-style solution. Features Bluetooth audio, a six-channel mixer and a unique design that can be carried with one hand.

Description

JBL EON ONE all-in-one linear-array P.A. system. The EON ONE combines the superior sound quality of a professional system with the convenience and streamlined look of a compact, column-style solution. Featuring Bluetooth® audio, a six-channel mixer and a unique design that can be carried with one hand, EON ONE is ideal for gigging musicians and DJs, coffee houses, fitness studios, corporate environments and more.

JBL All-in-One Linear-Array P.A. System with 6-Channel Mixer. With a maximum SPL of 118 dB, the EON ONE provides detailed, distortion-free audio. An unobstructed 10” bass-reflex subwoofer delivers tight, accurate low-frequency response that is ideal for DJs and playing back recorded music. The high-frequency section features JBL’s patent-pending Directivity Control Geometry, which optimizes the spacing and angles of the six two-inch high-frequency drivers. This creates extraordinarily even front-to-back coverage, ensuring that everyone in the listening area hears the sound accurately and consistently. The built-in, six-channel mixer enables users to connect microphones, instruments, such as acoustic guitars, electric guitars and keyboards, and other sources. The mixer also features bass, treble and reverb controls to optimize the sound. Bluetooth audio streaming makes it easy to play back recorded music from smartphones, tablets and more.

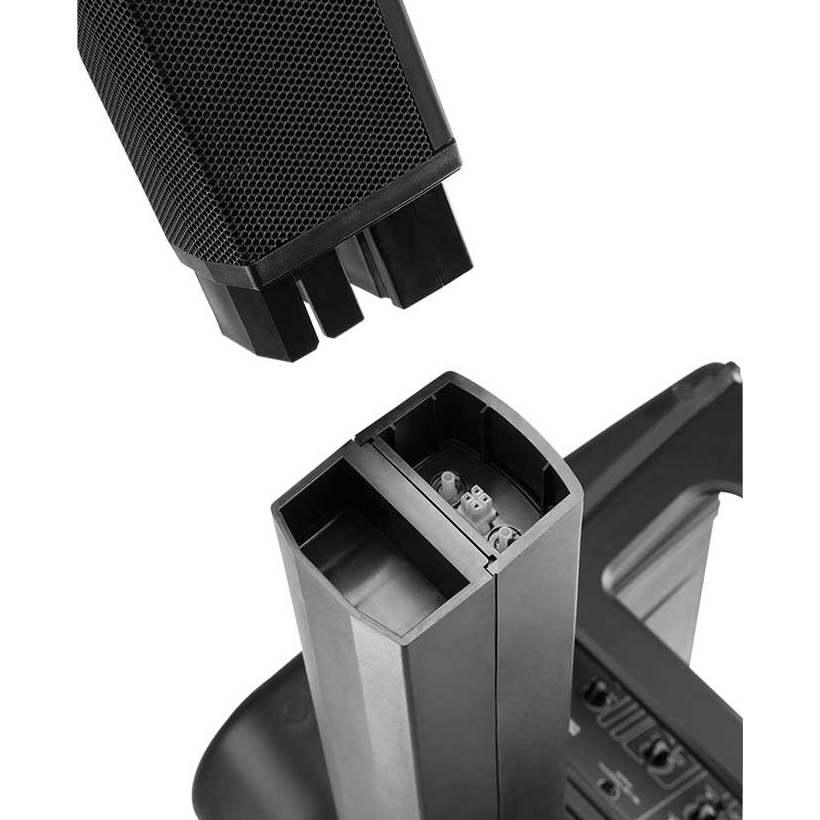

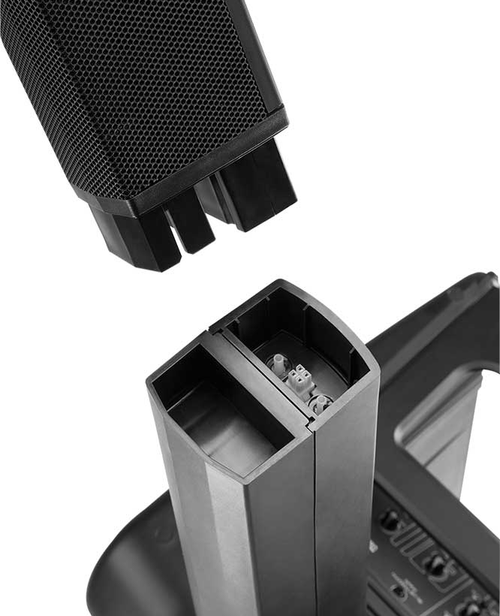

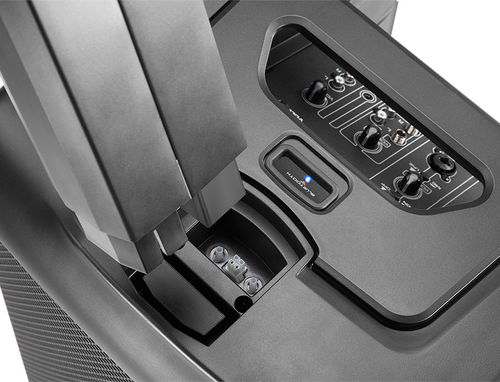

As the first truly all-in-one linear-array P.A. system, the EON ONE is easy to carry with just one hand. The high-frequency section and two spacers fit conveniently into the base unit, providing a streamlined package. Users can set up the system in seconds, choosing the right number of spacers to optimize the sound for each application. Two spacers provide a long throw for live performances and large crowds, while a single spacer is ideal for conferences, gyms and medium-sized groups. For small meetings and intimate events, users can place the high-frequency section directly atop the base unit.

Features

  • Proven JBL Professional sound quality

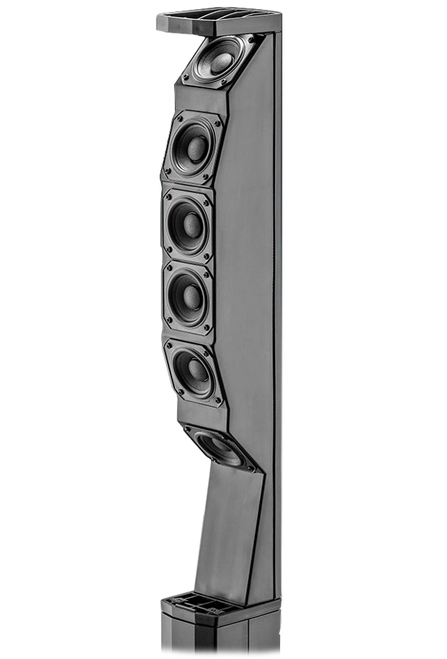

  • Patent-pending linear-array configuration (six 2” HF drivers) offers exceptional sound coverage
  • Unobstructed 10” bass-reflex subwoofer for accurate low-frequency response
  • Bluetooth connectivity for streaming audio from your mobile device

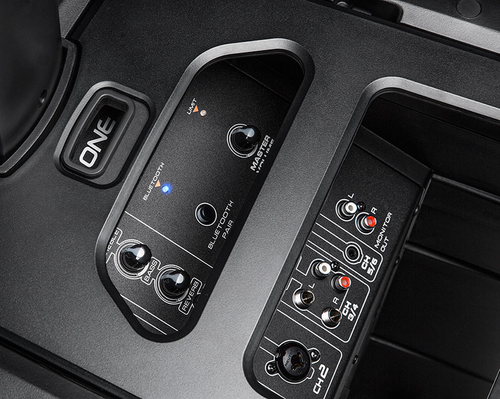

  • Powerful 6-channel mixer with easy-to-use controls
  • 380 watts of power, 118 dB max SPL for clear, detailed audio
  • Carry the entire system with one hand, set up in seconds
  • Perfect for live music, conferences, events and more
  • 3 listening positions for different environments

Specifications

System
System Type Portable Line Array with powered mixer
Maximum SPL Output 118 dB peak system output (pink noise)
Frequency Range (-10dB) 37.5Hz – 18.5kHz
Frequency Response (-3dB) 45Hz – 18kHz
AC input 100 - 120 VAC, 220-240 VAC 50/60 Hz
Amplifier
Design Class D
System Power Rating 250W LF, 130W HF

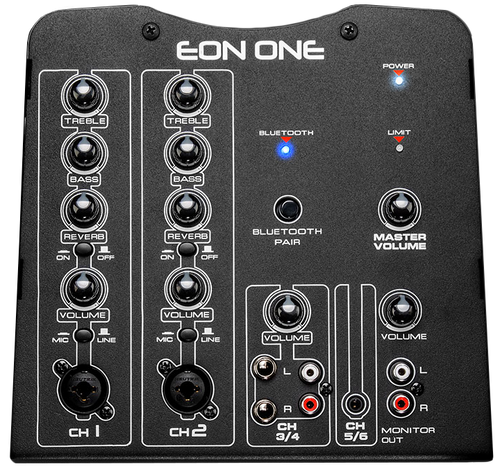

Mixer
Input Connectors 6 inputs (2 Mono Mic/Line, 2 x Stereo)
Channels 1-2 are XLR / 1/4" jack combo connectors
(XLR is a mic level input, 1/4" is a line level input)
3-4, one pair of 1/4" balanced TRS jacks (stereo), and a pair of RCA jacks (stereo)
5-6 is a 3.5 mm stereo jack
Input Impedance Ch 1-2 Combo: XLR 40 K Ohms Balanced
Ch 1-2 Combo: TRS 40 K Ohms Balanced
Ch 3-4: TRS 20 K Ohms Balanced
Ch 3-4: RCA 5 K Ohms Unbalanced
Ch 5-6: 3.5 mm 10 K Ohms Unbalanced
Output Connectors Monitor outputs: one pair of RCA jacks (stereo)
Signal Indicators Limit: Yellow LED indicates limiter active condition
EQ Individual channel Bass and Treble controls, center detent, +/-12 dB cut and boost
System Limiter On Board DSP Limiting and Tuning
Speaker
LF Driver One 10" (254 mm) woofer
HF Driver Six 2" (50.8 mm) drivers
Coverage Pattern 100º x 50º nominal
Enclosure Polypropylene
Grille Powder coated perforated steel
Dimensions (H x W x D) 23.3" (593 mm) x 14.5" (369 mm) x 17" (434 mm)
Shipping Dimensions (H x W x D) 30.2" (767.08 mm) x 20.2" (508 mm) x 24.7" (627.38 mm)
Net Weight 40.8 lbs (18.5 kg)

DOCUMENTS

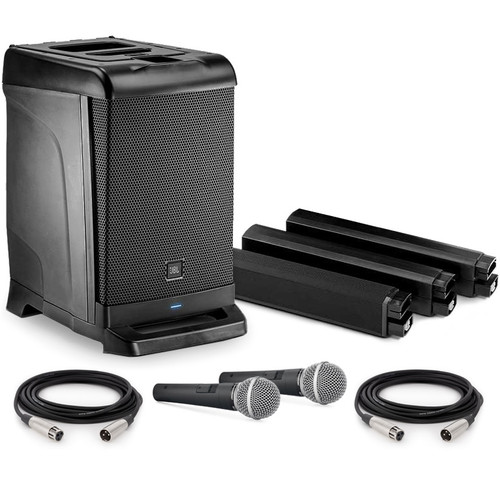

System Includes

  • JBL EOB ONE:
    • (1) JBL EON ONE Base
    • (2) Listening Height Spacers
    • (1) Column Speaker Array
    • (1) Power Cable
    • Quick start guide
