JBL EON618S 18" 1000W Powered Subwoofer (Discontinued)

Description

Details

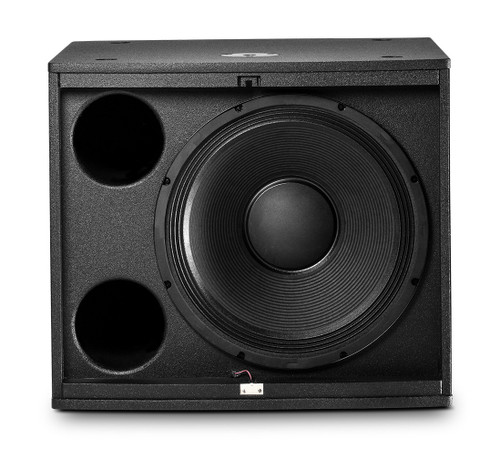

JBL EON618S 18-inch 1000W Powered Subwoofer

The EON618S is a powered portable PA subwoofer in the EON600 series from JBL Professional. It has been designed to deliver class leading performance in a variety of applications supporting EON600 and other full range systems. A lightweight, highly useful enclosure allows the speaker to be easily transported and set up wherever low frequency reinforcement is needed.

Features

Features

JBL Premium Transducers
1000 W highly efficient Class-D amplification
Maximum SPL Output: 134dB
System Type: Self powered 18" Subwoofer
Frequency Range (-10dB): 31Hz - 150Hz
Frequency Response (- 3dB): 42.5Hz - 150Hz
Bluetooth Control
JBL Engineered Crossover Presets
M20 Pole Cup
Rugged, stage-ready Duraflex enclosure

Specification

System Type	Self powered 18" Subwoofer
Maximum SPL Output	134 dB
Frequency Range (-10 dB)	31Hz –150Hz
Frequency Response (-3 dB)	42.5Hz – 150Hz
System Power Rating	1000W Peak, 500W Continuous
Input Impedance	22k (balanced)
Line Input Gain	0 to 36 dBu
Line	+14dBu
Connectors	2 x Balanced XLR-1/4" combination inputs; 2 x male XLR loop thru out
LED Indicators	Front Power LED (Defeatable, white) Rear Power LED (White), Bluetooth (Blue), EQ+ (Green) Preset (Green) Signal (Green) Limit (Orange)
Cooling	Passive
AC Power Input	100-120VAC 50/60Hz; 230-240VAC 50/60Hz
AC Power Consumption (120V~)	1/8th Power – 1.14A (Max), 1/4th Power – 1.71A (Max), 1/3rd Power – 2.03A (Max)
LF Driver	1 x JBL 618H 457mm (18") woofer with 2" voice coil
Crossover Frequency	Selectable; 80 Hz, 100 hz, or 120 Hz
Material	Duraflex coated wooden enclosure
Suspension/Mounting	M20 Threaded Pole Cup
Handles	2
Grille	Powder coated, Obsidian, perforated steel with acoustically transparent black cloth backing
Dimensions (H x W x D)	25.4" (645 mm) x 26.3" (668 mm) x 22.9" (582 mm)
Shipping Dimensions (H x W x D)	25.1" (631 mm) x 26.3" (668 mm) x 31.6" (803 mm)
Weight	72 lbs (35.5 kg)
Shipping Weight	91 lbs (41.2 kg)
