The compact, weather-resistant JBL GSF3 landscape loudspeaker provides superior fidelity and wide coverage in a range of outdoor commercial applications, with a custom two-way coaxial 3-inch driver system that delivers full-range, crystal-clear sound. (Extend system bass response with JBL GSB8 or GSB12 in-ground landscape subwoofers.) This versatile speaker features a 15-watt multi-tap transformer for use on 70V/100V distributed systems, and is switchable for 8-ohm direct operation.

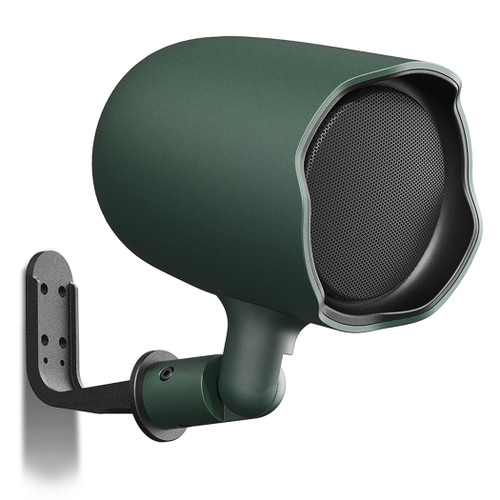

Versatile mounting options include an included ground stake for in-ground installation and an L-bracket for secure mounting on either horizontal or vertical surfaces. A low-profile, unobtrusive speaker, the GSF3 blends right into its surroundings, and is aimable for precise coverage via an adjustable hinge. Available in hunter green and tan finishes.
The elegant, discreet GSF3—winner of the prestigious RedDot international design award for industrial design excellence—is the perfect sound solution for diverse outdoor applications including shopping malls, theme parks, sports venues, hospitality venues, and any application calling for a stylish, robust, great-sounding landscape speaker system.
| Frequency Response (-10dB) | 90 Hz – 20 kHz |
|---|---|
| Frequency Response (±3 dB) | 130 Hz – 17 kHz |
| Power Rating | 60W Continuous Program (2 hrs) 30W (120W Peak), Continuous Pink Noise (2 hrs) 20W (80W Peak), Continuous Pink Noise (100 hrs) |
| Transformer Taps | 70V: 15W, 7.5W, 3.75W 100V: 15W, 7.5W |
| Maximum SPL | 101 dB peak (95 dB continuous, 2 hr) @ 1m |
| Sensitivity | 80 dB (120 Hz – 20 kHz) |
| Nominal Coverage Angle | 80° conical |
| Nominal Impedance | 8Ω (at 8Ω tap) |
| Drivers | 76 mm (3") woofer, polypropylene cone 25 mm (1") voice coil on Kapton™ voice coil former 20 mm (0.8") titanium dome, Neodymium magnet assembly, Kapton™ voice coil former |
| Terminals | Bare wire with dielectric-gel-filled wire nuts (1 meter single jacked cable 7 wires with 14 AWG) |
| Enclosure Material | Polycarbonate + ABS, UL94V-0 flammability rated |
| Color | Hunter Green (RAL 6018) |
| Included Accessories | (1) Ground Stake Bracket; (1) L-Bracket |
| Dimensions (H x Dia) | 6.6" (167 mm) x 5.2" (131 mm) |
| Net Weight | 3.8 lbs (1.7 kg) |
