JBL IRX ONE 1300W All-in-One Column PA System with Built-in 3-Channel Mixer and Bluetooth

Part #:
IRXONE-US
Model #:
IRX ONE
Was $949.00
Now: $799.00
You save $150.00
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The JBL IRX ONE all-in-one column PA system with built-in 3-channel mixer and Bluetooth delivers powerful, portable sound with a six-driver C-shaped array, 8" bass-reflex woofer, 40 Hz to 20 kHz response, Bluetooth 5.0, and easy one-hand setup.

Description

JBL IRX ONE All-in-One Column PA System

The IRX ONE all-in-one column PA system combines powerful JBL sound, flexible mixing, and effortless portability in a compact column PA design. Its C-shaped array features six 2" high-frequency drivers for clear, consistent sound and a wide sweet spot, while the advanced 8" bass-reflex woofer delivers smooth low-frequency performance down to 40 Hz. The system provides a 40 Hz to 20 kHz frequency response for full-range audio reproduction.

Built for presentations, education, hospitality, houses of worship, live music, and mobile performance, the IRX ONE features a built-in 3-channel mixer with 1/4" and XLR inputs, 48V phantom power, and a 1/4" balanced mix output. Bluetooth 5.0 enables convenient wireless audio streaming, while dbx Automatic Feedback Suppression, five EQ presets, fixed bass and treble controls, and Soundcraft Easy Ducking help simplify sound management.

Designed for fast setup and easy transport. Column spacers and the array cabinet store conveniently inside the base, while the speaker automatically adjusts its tuning based on the number of spacers used. A lightweight, road-tough cabinet and ergonomic carry handle make the system easy to carry with one hand, while the quick setup and teardown make it a practical choice for users who need professional sound without a complicated PA system.

Features

  • Six 2" high-frequency drivers form a C-shaped column array for clear, wide sound coverage
  • Advanced 8" bass-reflex woofer delivers smooth low-frequency response down to 40 Hz
  • 40 Hz to 20 kHz frequency response provides full-range sound

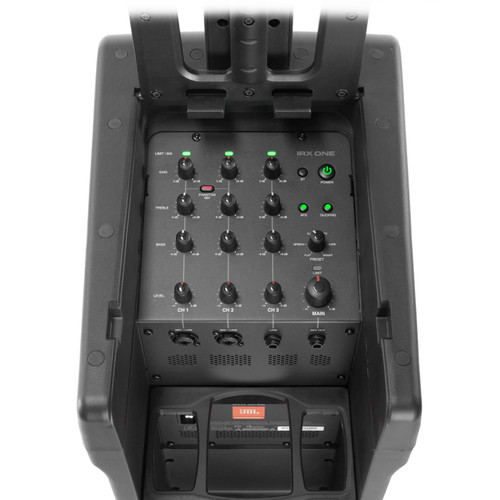

  • Built-in 3-channel mixer simplifies live sound setup
  • 1/4" and XLR inputs support microphones and line-level sources
  • 48V phantom power supports compatible condenser microphones
  • 1/4" balanced mix output provides flexible system connectivity
  • Bluetooth 5.0 enables convenient wireless audio streaming
  • dbx Automatic Feedback Suppression helps reduce unwanted feedback
  • Five EQ presets provide quick sound optimization for different applications
  • Soundcraft Easy Ducking automatically lowers music when speech is detected
  • Fixed bass and treble controls provide simple tonal adjustment
  • Automatic tuning optimizes performance based on the number of column spacers used
  • Column spacers and array cabinet store inside the base for convenient transport
  • Ergonomic carry handle makes the PA easy to carry with one hand
  • Lightweight, road-tough cabinet is built for portable use
  • Sets up and tears down in seconds for fast deployment
  • Designed for educators, presenters, musicians, hospitality, and house of worship applications
  • Includes a complete three-year warranty

Specifications

System Type Column Speaker with Bluetooth
Woofer Size 8 inch bass-reflex woofer
Woofer Magnet Ferrite Magnet
Woofer Voice Coil 38.4 mm
Tweeter Size 6 x 2 inch HF drivers
Tweeter Magnet Neo Magnet
Transducer Impedence Woofer: 2 ohm
Tweeter unit: 4 ohm (Tweeter Array: 2 ohm)
Max SPL 118 dB (peak)
Freq Range -10 40 Hz ~ 20 KHz @ 4pi
Freq Range -3 50 Hz ~ 18 KHz @ 4pi
Hor Dispersion 160
Vert Dispersion 80
Power Rating 1300 W Peak
AC Power Input 100 V - 120 V or 220 - 240 V
Cooling No fan
Input Impedance Mic 4.4 KΩ
Input Impedance HiZ 1 MΩ
Input Gain Mic 55 dB
Input Gain HiZ 48 dB
Crossover Freq 260 Hz
I/O x2 Mic/line XLR Combo
x1 HiZ In - 6.3 mm jack
Bluetooth SBC
Mix Out - 6.3 mm jack
Cabinet PP
Grille Steel
Suspension/Mount None
Handles Top
Dimensions (H x W x D) 23.50" (597 mm) x 15.77" (400.5 mm) x 10.53" (267.5 mm)
Weight 34.28 lbs (15.55 kg)

DOCUMENTS

In The Box

  • (1) IRX ONE Base
  • (2) Listening Height Spacers
  • (1) Column Speaker Array
  • (1) Power Cable
  • Quick Start Guide
