JBL JRX212 12" 2-Way Passive Stage Monitor

Part #:
JRX212
Model #:
JRX212
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The JBL JRX212 12 inch 2 Way Stage Monitor is easily portable and designed specifically for live performance stage monitoring applications.

Description

JBL 12 in low frequency driver with a 64 mm (2.5 in) diameter edgewound ribbon voice coil which provides more cross-sectional wire area in the voice coil gap than round wire designs, for greater efficiency and power handling.

JBL 2414H-C 25 mm (1 in) polymer diaphragm compression driver improves high frequency performance as well as system reliability.

The advanced network topology crossover design shapes frequency response and delivers "coherent summation" in the crossover region.

The rugged, acoustically superior enclosure is constructed from 19 mm (.75 in) MDF (Medium Density Fiberboard) using advanced adhesives and mechanical fastener technology for extreme durability and improved low-frequency performance.

JRX200 delivers the performance and prestige JBL is known for at an affordable price point. To meet these conflicting design goals, we looked at every element of the speaker system design. We kept everything that makes a speaker perform and sound its best and we eliminated things that don't. With performance, value and popular price points, we are going to be building a lot of JRX200 speakers. This means we can apply efficient, high-volume production methods and purchase materials at the lowest cost. That's how JRX200 delivers unprecedented value.

Features

  • High-voltage capacitors and inductors with massive cores and heavy gauge wire enable the crossover network to handle high power without saturating
  • Progressive Transition high frequency waveguide provides superior coverage control, reduced distortion, and smoother frequency response
  • SonicGuard protects the high frequency driver from excess power without interrupting the performance
  • Non-resonant, all-steel handles are used
  • Attractive 18-gauge hexagon perforated, steel grille protects components from damage
  • Dual-angle pole-mount socket allows the speaker to tilt 10°for more uniform audience coverage

Specifications

Power Rating 250 W / 1000 W
Frequency Range (-10 dB) 60 Hz - 20 kHz
Frequency Response (±3 dB) 70 Hz - 19 kHz
Sensitivity (@1m) 99 dB SPL (1w/1m)
Nominal Impedance 8 ohms
Recommended Amplifier Power 250 W to 500 W into 8 ohms
Maximum SPL 129 dB
Nominal Dispersion 90º x 50º
Crossover Frequency 1.8 kHz
High Frequency Driver JBL 2414H-C 25mm (1 in) polymer diaphragm compression driver
Low Frequency Driver JBL M112-8

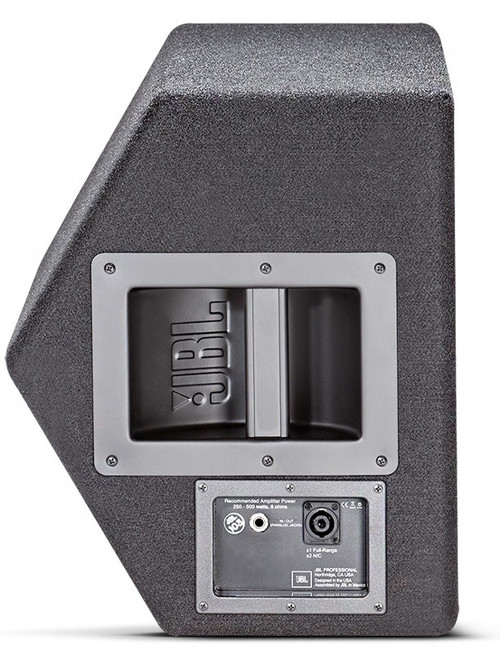

Input Connectors Neutrik® Speakon® NL-4 (x1); .25 inTS phone jack (x1); parallel
Dimensions (H x W x D) 23" (584 mm) x 15.7" (399 mm) x 12.8" (325 mm)
Weight 43 lbs (19.5 kg)
Shipping Weight 49 lbs (22 kg)
