JBL LSR4312SP 12 inch Powered Subwoofer (Discontinued)
By JBL Professional

JBL LSR4312SP 12 inch Powered Subwoofer (Discontinued)

Write a Review
Part #:
LSR4312SP
Model #:
LSR4312SP
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The JBL LSR4312SP Powered Subwoofer provides powerful bass performance extending frequency response of the system when networked with LSR4300 Studio Monitors.

Description

The JBL LSR4312SP Powered Subwoofer provides powerful bass performance extending frequency response of the system into the 20Hz region. When networked with LSR4300 Studio Monitors, the LSR4312SP Sub provides revolutionary capabilities including JBL RMC Room Mode Correction technology to ensure accurate mixes in any room. 450 Watts Amplification; 12" Low Frequency Transducer with magnetically-shielded Neodymium motor structure.

Features
  • 450 Watts Amplification; 12” Low Frequency Transducer with magnetically-shielded Neodymium motor structure
  • RMC™ Room Mode Correction system analyzes and compensates for room modes that can give a misleading impression of low frequency content at the mix position
  • Six balanced XLR inputs with selectable +4dBU / -10 dBv sensitivity
  • AES/EBU and S/PDIF Digital plus analog LFE inputs
  • Comprehensive Bass Management System for professional surround sound production
  • Harman HiQnet™ network protocol allows all settings to be controlled from the LSR4300 wireless remote control or LSR4300 Control Center Software
  • When used in a system with LSR4328P or LSR4326P Studio Monitors

Specifications
Frequency Response -6 dB: 27 Hz - 250 kHz
SPL / 1m (Continuous/Peak) 116 dB / 125 dB
Transducers 12" model 432G; Self Shielded,Neodymium
Sensitivity +4 dBU, -10 dBV 94 dB / 1 m
Amplification 450 w
Digital Processing 24 Bit, 96 kHz
Analog Inputs: L, C, R, L Surround, R Surround, LFE Six XLR , Two 1/4", Balanced,+4 dBU, -10 dBv, LFE +10 dB Gain
Digital Inputs AES/EBU XLR IN, OUT: S/PDIF RCA IN/OUT
Data Connections Harman HiQnet™ Network, USB
Dimensions (H x W x D) 19.75" (502 mm) x 16" (406 mm) x 19.5" (489 mm)
Weight 66 lbs (29.5 kg)

Related Products

Sold Out

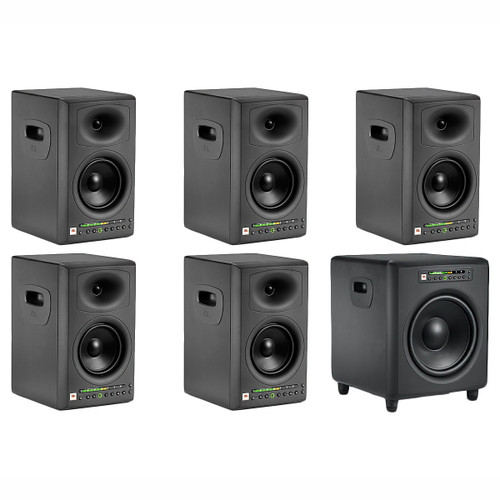

JBL LSR4326P5.1 Surround Sound Studio Monitor System (Discontinued) JBL LSR4326P5.1 Surround Sound Studio Monitor System (Discontinued)

JBL LSR4326P5.1 Surround Sound Studio Monitor System (Discontinued)

The LSR4300 Series Studio Monitors are designed for critical stereo and multi-channel audio production applications that require exceptional spectral accuracy and high SPL capability. Acknowledging...
$0.00

Usually arrives in 5-9 business days.

$0.00
Sold Out

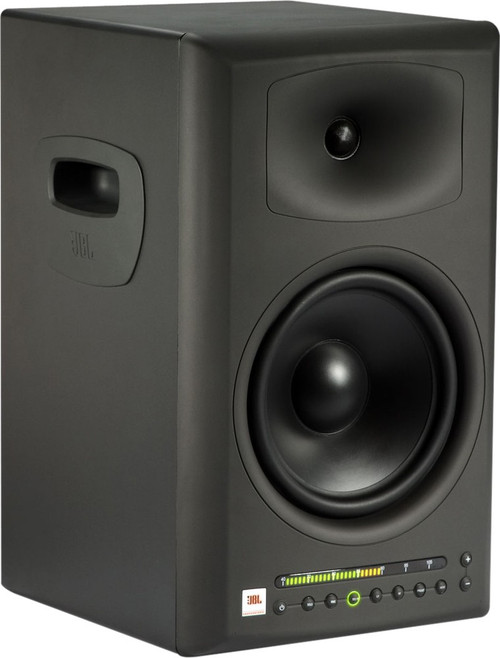

JBL LSR4328P 8 Inch Powered Studio Monitor (Discontinued) JBL LSR4328P 8 Inch Powered Studio Monitor (Discontinued)

JBL LSR4328P 8 Inch Powered Studio Monitor (Discontinued)

The LSR4328P series automatically analyzes the frequency response of the speakers at the listening position and automatically applies a corrective filter to minimize low frequency resonance. When the...
MSRP: $955.00
$779.00

Usually arrives in 5-9 business days.

MSRP: $955.00
$779.00
Sold Out

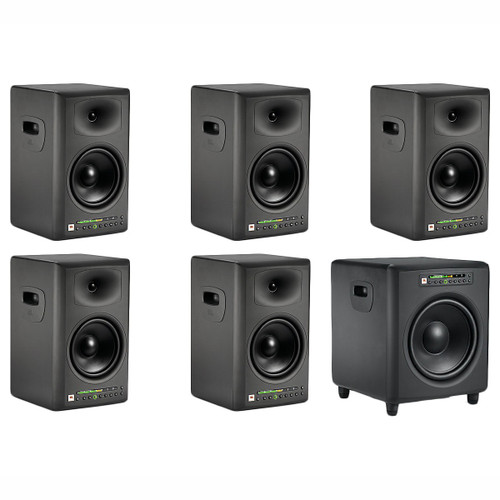

JBL LSR4328P5.1 Surround Sound Studio Monitor System (Discontinued) JBL LSR4328P5.1 Surround Sound Studio Monitor System (Discontinued)
