The JBL PRX715XLF extended low frequency subwoofer was designed and engineered to provide sub bass frequencies with accuracy and power. Used as a single sub in a sub/sat system or in multiples as part of a scalable, large format sound reinforcement system, the PRX715XLF performs with exceptional efficiency and control. The subs are stackable and light-weight ensuring quick set-ups and tear-downs. And due to their rugged construction are perfect for AV rental inventories. With a pole receptacle (that accepts a SS4-BK or SS4-BK24) on the top panel and integrated stereo pass-thru this is the most powerful low-frequency complement to the PRX full-range systems. The addition of a polarity reverse option further enables system optimization.
The PRX715XLF is a high performance self-powered subwoofer system. The PRX715XLF is comprised of a powerful 2275H Differential Drive® dual voice-coil and magnetic gap, woofer driven by a 1500 Watt Class-D power amplifier. Sophisticated DSP is at the core of a fully featured input section, providing user selectable cross-over functionality, polarity optimization, protection, dynamic limiting and discrete component optimization.
The PRX715XLF is the next step in the highly successful PRX Series and introduces the first use of JBL’s patented Differential Drive® Technology with ferrite drivers. Differential Drive Technology incorporates lower mass in the ferrite magnet for reduced weight while maximizing power amp efficiency for greater heat dissipation and increased power handling.- Features
Features
- 131 dB peak SPL
- 15" Differential Drive® low-frequency driver for low-distortion and higher SPL
- Efficient Class-D amplifier technology
- DSP Input limiter circuit, crossover, dynamic limiting, component optimization, selectable system EQ

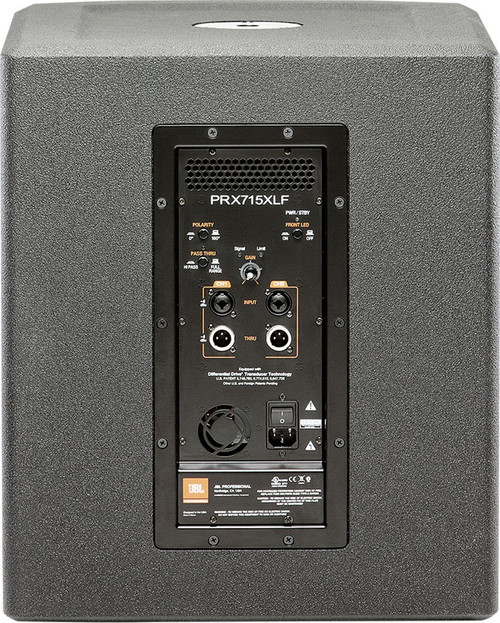

- Integrated stereo pass-thru, with selectable HP filter, and polarity reverse
- 2 x XLR-¼" combination inputs, with 2 x XLR loop-thru
- Pole receptacle accepts a SS4-BK or SS4-BK24 on the top panel
- Multiple handles with comfort rubber grips for easy transport
- Lightweight poplar plywood cabinets made structurally sound with tongue and groove joints and protected by JBL’s tour proven DuraFlex™finish
- Cloth backed, dent-resistant 16 gauge steel grilles
- Specification
Power Rating 1500 W Frequency Range (-10 dB) 37 Hz - 113 Hz Frequency Response (±3 dB) 44 Hz – 91 Hz Internal Crossover Frequency 90 Hz DSP controlled 48 dB filter slope Loop out Crossover Frequency 120 Hz analog 24 dB filter slope Maximum SPL 131 dB Dynamic Control (Input) dbx Type IV™ limiter circuit Input Impedance 20K Ohms (balanced) Polarity Normal or reverse polarity LF Driver 1 x JBL 2275H 15 in woofer Enclosure Rectangular, 18 mm & 25mm, plywood Transport 2 x injection molded handles with backing cup Finish Obsidian DuraFlex™ finish Grille Powder coated, Obsidian, 16 gauge perforated steel with acoustical transparent black cloth backing Input Connectors Two Balanced female XLR/ 1/4" combo connectors Output Connectors Two balanced male XLR connectors Dimensions (H x W x D) 21.54" (547.1 mm) x 17.52" (445 mm) x 22.48" (580 mm) Net Weight 56 lbs (25.4 kg) - Reviews
