JBL SLP14/T 4" Sleek Low-Profile On-Wall Loudspeaker - White Pair

Part # JBL-SLP14/T-WH
Model # SLP14/T
The JBL SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a coaxial 4-inch driver complement that delivers the legendary sound that JBL is known for.
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Description

Details

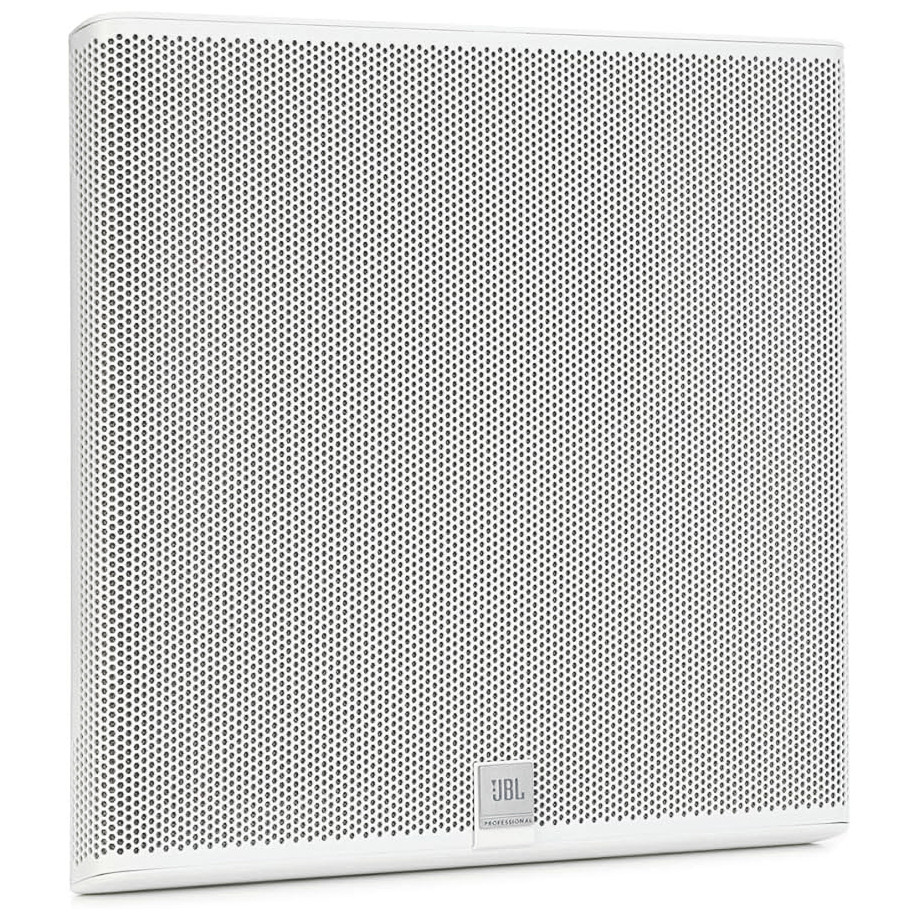

JBL SLP14/T 4-inch Sleek, Low-Profile On-Wall Loudspeakers

The SLP14/T two-way on-wall loudspeaker provides rich, detailed wide-range sound and broad, consistent coverage in a sleek, low-profile enclosure, thanks to a 4-inch driver complement that delivers the legendary sound that JBL is known for. The SLP14/T is an ideal foundation for a range of applications: It features a 25-watt multi-tap transformer for use in 70V/100V systems, and is switchable for direct 8-ohm operation. This robust speaker boasts 50-watt power handling, delivering clean, clear sound at any volume.

Installation is fast and easy using the included slide-in wall bracket; 15° down-tilted coverage allows mounting flush against a wall. An included rain cover protects the terminal compartment in outdoor applications. This elegantly finished speaker—winner of international design awards for industrial design excellence—complements any décor and is available in black or white finishes.

The stylish, great-sounding JBL SLP14/T is perfect for venues such as high-finish restaurants, hotels, resorts, retail stores, and any installation application calling for a discreet yet elegant look.

Features

Features

  • Transducers: 100 mm (4 in) polypropylene cone woofer and 1" silk-dome tweeter
  • Power handling: 45W continuous pink noise, 60W continuous program

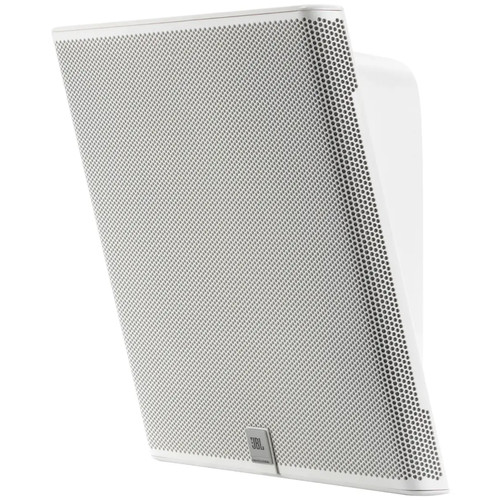

  • 15° down-tilted coverage allows flush-to-wall mounting
  • Included slide-in wall bracket makes installation a breeze
  • Sonically matched to JBL Control 14C/T ceiling speakers
  • Included rain cover protects terminal compartment in protected outdoor applications
  • Multi-tap transformer for use in 70V/100V systems
  • ADA-compliant at less than 4 inches deep
  • Available in black or white finishes
Specification
Frequency Range (-10 dB)70 Hz – 20 kHz
Frequency Response (±3 dB)80 Hz – 18 kHz
Nominal Coverage140° horizontal x 120° vertical
Directivity Factor (Q)6.9
Directivity Index (DI)8.4 dB
Power Rating100W Continuous Program (2 hrs)
50W (200W peak) Continuous Pink Noise (2 hrs)
30W (120W peak) Continuous Pink Noise (100 hrs)
Sensitivity85 dB (60 Hz – 20 kHz) half-space (mounted on a wall)
Rated Maximum SPL108 dB peak (102 dB continuous, 2 hr) @ 1m
Nominal Impedance8Ω (at 8Ω tap setting)
Transformer Taps70V: 25W, 12.5W, 6.3W, 3.2W
100V: 25W, 12.5W, 6.3W
Driver120 mm (4.5 in) woofer, polypropylene cone 25 mm (1 in) voice coil on Kapton™ voice coil former, plus 20 mm (0.79 in) titanium dome tweeter with neodymium magnet with aluminum former
Terminals4-pin Euroblock connector for bare wire
Enclosure MaterialPolycarbonate + ABS Fireproof, UL94V-0 flammability rated
Included AccessoriesWall-mount slide-on bracket (speaker and wall sides), 4-pin Euroblock plug, protective terminal cover for outdoor use
ColorsWhite
Dimensions (H x W x D)10.4" (263 mm) x 11.3" (286 mm) x 3.9" (100 mm)
Net Weight6.2 lbs (2.8 kg)
