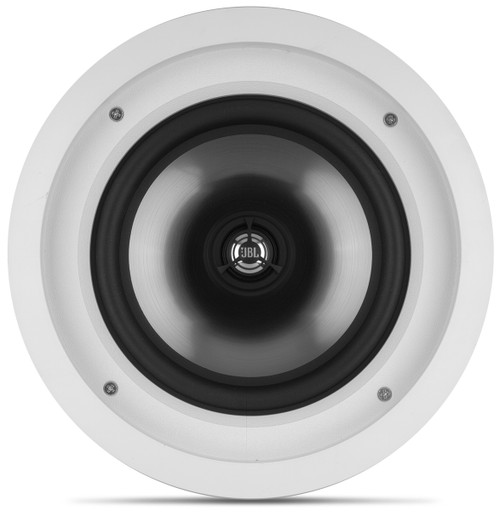

JBL SP8CII 8" 2-Way In-Ceiling Loudspeaker - Pair (Discontinued)

Description

Details

A pair of JBL® SP8CII in-ceiling loudspeakers offers any home true JBL-quality sound, yet without taking up valuable floor and shelf space. The SP8CII’s 8-inch (200-millimeter) titanium-laminate woofer delivers exceptional bass, while a swivel-mounted, titanium-laminate tweeter produces accurate, clear high-frequency output. A proprietary waveguide and 100 watts of peak power handling ensure that the SP8CII distributes sound evenly and smoothly. Movies sound more enveloping within your home theater, and your favorite music comes alive throughout the house. Shallow mounting depths increase your installation options; and the SP8CII’s paintable frame and grille let the in-ceiling loudspeakers blend into any room décor.

Features

Features

25 – 100W suggested amplifier power range
8" (200 mm) titanium-laminate cone for enhanced bass response
Detailed high-frequency sound reproduction
Elliptical Oblate Spheroidal (EOS) waveguide for “sit-anywhere” sound
Low profile and easy installation
Paintable grille and frame

Specification

General
Series	SoundPoint Series
Audio
Sensitivity	(2.83V@1m) 89dB
Frequency Response	(-10dB) 32Hz – 20kHz
Nominal Impedance	8 Ohms
Crossover Frequencies	2.4kHz
Recommended Maximum Amplifier Power	100W
Speaker
Midrange Transducer	100
High-Frequency Transducer	1" (25 mm) Titanium-laminate dome with swivel mount
Low-Frequency Transducer	8" (200 mm) Titanium-laminate cone with rubber surround
Dimensions
Plate Size	10.88" (275 mm)
Mounting Cutout Size	9.50" (240 mm)
Mounting Depth	4.25" (108 mm)
Weight	5.6 lbs (2.5kg)
Shipping Weight (Pair)	17 lbs (7.71 kg)
