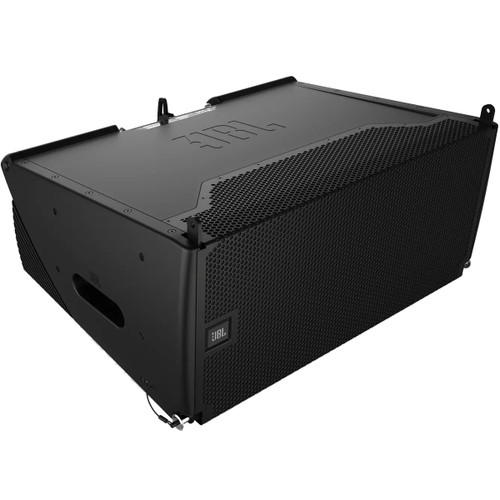

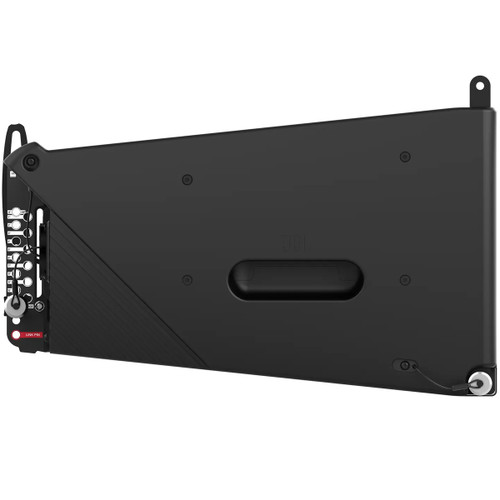

JBL SRX910LA Dual 10" 2-Way Powered Line Array Loudspeaker

Part # JBL-P3234MX
Model # SRX910LA
The JBL SRX910LA dual 10" powered line array loudspeaker with built-in Class-D amplification, DSP, and Differential Drive woofers. Compact, lightweight, and riggable for mid- to large-sized applications, ideal for touring, rental, and installed sound.
Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Description

Details

JBL SRX910LA Dual 10-Inch Line Array Loudspeaker

The SRX910LA is a two-way, dual 10-inch powered line array element designed for professional sound reinforcement in touring, rental, and installed applications. Featuring JBL Differential Drive woofers and a three-inch compression driver, it delivers high-fidelity sound with low distortion and class-leading output. Its computer-optimized composite enclosure provides a compact, lightweight, and durable solution for scalable line array systems.

Built-in Class-D amplification and DSP ensure a plug-and-play experience with consistent performance anywhere in the world. LevelMax limiting protects transducers, while rear-panel LCD access and dual Neutrik etherCON Ethernet ports allow for full system control via JBL Performance software and HARMAN HControl Ethernet.

The SRX910LA features an innovative three-point rigging system and a complete set of accessories, making it easy to scale systems for a variety of mid- to large-sized venues. With JBL's proven transducer technology and versatile software control, the SRX910LA delivers transparent, powerful sound and flexible deployment for any professional audio environment.

Features

Features

  • High-performance, truck-pack friendly design
  • High-power transducers for low distortion and high fidelity
  • Built-in passively-cooled Class-D amplifier with universal power supply
  • Dual Neutrik etherCON Ethernet ports
  • Supports HARMAN HControl Ethernet for system management
  • User-controllable DSP for flexible sound shaping
  • LevelMax limiting protects drivers with advanced excursion-control
  • Rear-panel LCD for full access to control features
  • Durable composite loudspeaker enclosure
  • Innovative three-point rigging system for scalable array setups
Specification
Frequency Range (-10 dB)53 Hz-19 kHz (array preset)
Coverage Pattern105 degrees nominal (400 Hz-16 kHz)
System TypeLine Array, two-way active
Maximum SPL135 dB
Amplifier DesignClass-D
Continuous Power Rating600 Watts | LF: 400 Watts | HF: 200 Watts
LF Driver(2) JBL 261G-1, 10" diameter, dual 2.0 in diameter voice coil, neodymium Differential Drive
HF Driver(1) JBL 2432H-3, 1.5 in exit neodymium compression driver with 3 in voice coil
EnclosurePolypropylene, aluminum baffle, plywood internal bracing, four integral recessed handholds
Inter-Enclosure Angles0.5, 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 11, 12
Dimensions (H x W x D)12" (305 mm) x 28.2" (716 mm) x 20.5" (519 mm)
Weight59 lbs (26.7 kg)
Shipping Weight67 lbs (30.3 kg)
