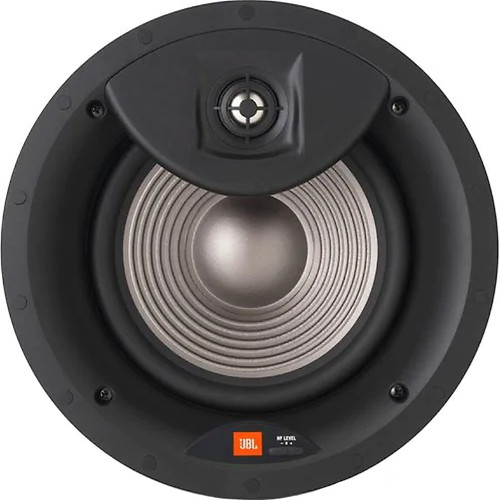

JBL Studio 2 8IC Premium 8" In-Ceiling Speaker (Discontinued)

Part #:
STUDIO28ICAM
Model #:
Studio 2 8IC
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

The JBL Studio 2 8IC architectural series premium loudspeaker represents best in class architectural audio and ensures low distortion and accurate sound reproduction.

Description

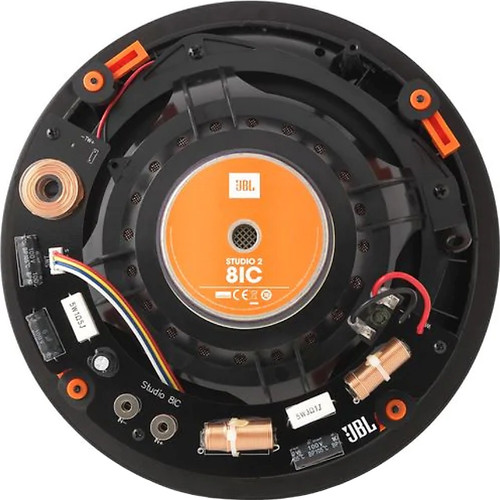

The JBL Studio 2 architectural series premium loudspeakers represent best in class architectural audio. A PolyPlas® woofer cone, CMMD@ lite tweeter, and advanced crossover network ensure low distortion and accurate sound reproduction, and the pivoting, adjustable-level tweeter can compensate for any acoustical room conditions. The proprietary JBL High Definition Imaging (HDI) waveguide ensures that the loudspeaker fills the room with cinema-quality sound from any location - even high elevations or off-axis listening locations. The JBL Studio 2 architectural series features a nearly invisible, paintable, zero-bezel profile that blends into any environment. The sturdy, reliable design features the XL-2 bracket, suitable for installation in any wall or ceiling up to 2" thick. The series is engineered to match the award-winning JBL Studio 2 component loudspeakers and is perfect for a complete custom home theater or whole-house audio applications.

Features

  • Sound Inspired by JBL's legendary M2 Master Reference Monitor
  • Paintable, nearly invisible zero-bezel magnetic grille
  • Superior XL-2 installation bracket
  • Pivoting tweeters
  • Tweeter audio level adjustment

Specifications

Impedance 8 ohms
Recommended Amplifier Power 100W
Frequency Response 30Hz - 20kHz
Loudspeaker Sensitivity 88dB 2.83V @ 1m
LF Driver Size and Material 8" (203mm) Polyplas® Woofer
HF Driver Size and Material 1" (25mm) Pivoting CMMD® Lite Tweeter
High Frequency Control +/- 3dB
Compatible Wall Material Thickness 0.5" – 2.0" (12 mm – 51 mm)
Mounting Depth 5.2" (132 mm)
Cutout Dimensions (Dia) 9.63" (244 mm)
Grille Finished Dimensions (Dia) 10.69" (272 mm)
