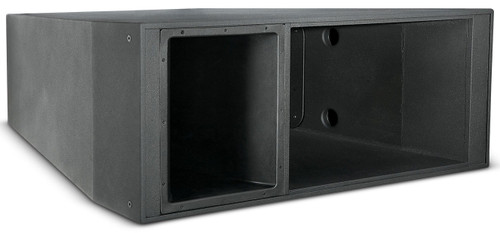

The JBL VLA301 offers 30° of horizontal coverage, the vertical coverage will vary with the array size and configurations.
Variable Line Array Series (VLA Series) is a revolutionary product providing high-impact sound reinforcement at throw distances beyond the reach of traditional loudspeaker designs. The modular design concept provides the system designer the ability to build large line array systems for larger venue applications or to design smaller line array systems for use as distributed clusters in arenas, domed stadiums and larger performance spaces, including large housesof- worship. VLA is designed specifically for permanent installation applications where even coverage, intelligibility, and levels capable of overcoming crowd noise are required.
VLA modules are based on the same advanced engineering used in the highly successful VERTEC® Series line array systems. VLA goes one step further than VERTEC by providing six large format horn-loaded modules with three horizontal horn coverage patterns (30°, 60°, & 90°). This modular concept provides the designer the additional flexibility to vary the horizontal pattern within a vertical array by incorporating different modules with wider or narrower coverage patterns while still maintaining the vertical directivity.
| Frequency Range (-10 dB) | 42 Hz - 15 kHz |
|---|---|
| Frequency Response (+/-3 dB) | 58 Hz - 12 kHz |
| Horizontal Coverage | 30° |
| Vertical Coverage | Varies with array size and configuration |
| Directivity Factor (Q) | 100 |
| Directivity Index (DI) | 20 dB |
| System Power Ratings (AES) | LF: 1600W (6400W peak), 2 hrs 1200W (4800W peak), 100 hrs |
| Maximum SPL | LF: 132 dB SPL continuous avg MF: 139 dB SPL continuous avg HF: 144 dB SPL continuous avg |
| Low-Frequency Driver | 2 x 2226H 380 mm (15 in) driver with 100 mm (4 in) voice coil |
| Nominal Impedance | 4 ohms |
| Sensitivity (1 w @ 1 m) | 100 dB SPL |
| Mid-Frequency Driver | 2 x CMCD82H 200 mm (8 in) cone midrange compression driver withdual 75 mm (3 in) voice coils |
| Nominal Impedance | 4 ohms |
| Sensitivity (1 w @ 1 m) | 111 dB SPL |
| High-Frequency Driver | 3 x 2431H 38 mm (1.5 in) exit compression driver with 75 mm (3 in) voice coil |
| Nominal Impedance | 16 ohms |
| Sensitivity (1 w @ 1 m) | 120 dB SPL |
| Enclosure | 16 mm (5/8) exterior grade 12-ply birch plywood |
| Suspension Attachments | 16 points (4 each top bottom & rear, 2 each side), M10 threaded hardware (eyebolts NOT included) |
| Finish | Black DuraFlex finish. White (-WH) available upon request. WRC &WRX available upon request |
| Grille | Powder coated 14 gauge perforated steel, zinc-phosphate dipped |
| Environmental Specifications | Mil-Std 810; IPx3 per IEC529. For higher environmental ratings, use WRC or WRX. |
| Dimensions (H x W x D) | 21" (533 mm) x 53.2" (1351 mm) x 54.5" (1384 mm) |
| Weight | 309 lbs (140 kg) |
