JBL VP7212MDP 12 inch Integrated Stage Monitor (Discontinued)

Description

Details

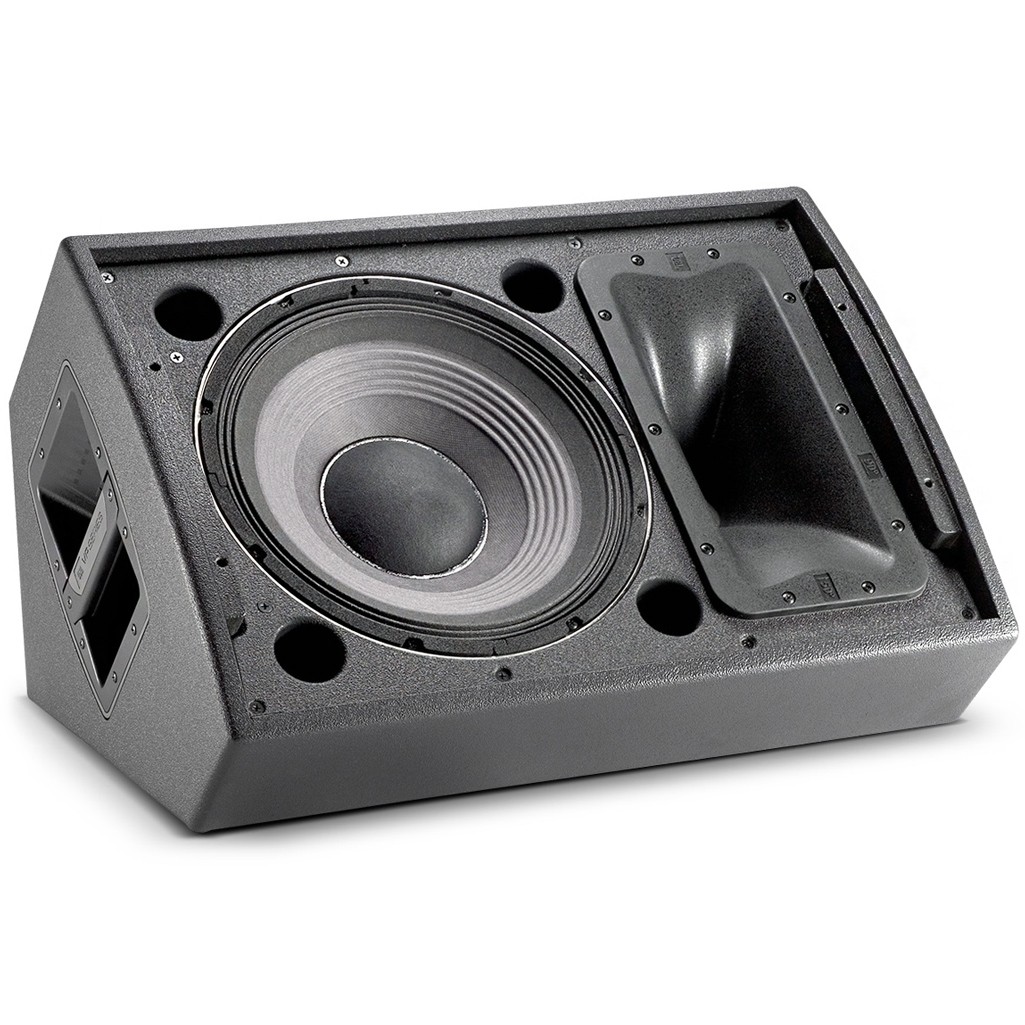

The VP7212MDP is a powered 12-inch 2-way integrated loudspeaker system designed specifically as a high-impact stage monitor.

The VP7212MDP features 1750 watts of peak output power and integrated onboard digital signal processing.

Designed in cooperation with Crown International, the ultra compact, high-power JBL Drive Pack DPC-2 amplifier module features Crown’s Class D digital power amplification circuitry.

DBT (Dual-Bridged Technology™) directly links discrete amplifier channel outputs to each voice-coil in the Differential Drive loudspeaker. Electrical power transfer to the transducer is optimized for maximum system performance.

VP7212MDP transducers are JBL’s 2262FF 12" diameter Differential Drive woofer and the JBL 2452H-SL compression driver. The high frequency driver is coupled to a JBL PT-F95HF Progressive Transition™ (PT) Waveguide for excellent 50° x 90° pattern control, smooth frequency response and low distortion.

Features

Features

Powered bi-amplified full-range loudspeaker with JBL Drive Pack® technology for stage monitor use
High-impact system with premium fidelity
Field rotatable baffle for easy left/right configurations
1750 watts peak output power, 875 watts continuous
12-inch Differential Drive® low-frequency driver for extended low frequency output
50° x 90° coverage optimized for use as stage monitor
Robust powder-coated die cast aluminum handles, designed for strength and comfort

Specification

Frequency Response	80 Hz - 18 kHz ( ± 3 dB)
Frequency Range	55 Hz - 20 kHz (-10 dB)
Coverage Pattern	50° x 90°
Directivity Factor (Q)	12.6
Directivity Index (DI)	11 dB
Maximum Peak Output	134 dB SPL 1m
Low Frequency Section	JBL 2262FF, 304 mm (12 in) dia., 76 mm (3 in) Dual Coil neodymium Differential Drive®, Direct Cooled
Bandpass Nominal Impedance	2 x 2 ohms
High Frequency	JBL2452H-SL, 100 mm (4 in) titanium damped diaphragm, 1.5 in. exit
Bandpass Nominal Impedance	8 ohms
DPC-2 Internal Amplification Output	3600 Watts Peak, 1800 Watts Continuous
DPC-2 Output	1-Channel, Class I
DPC-2 Output Section	LF: Dual Bridged Technology™, Class D HF: Bridged Class D
Audio Input connector	XLR with loop-through
User Controls	System EQ Selection: Full Range or Speech/Vocal 0-16 dB IN Attenuator with 32 precision 0.5dB steps
Signal Processing	DSP Based, resident in Input Module
System Management	DSP based limiters for mechanical and thermal protection
AC Power Operating Range	90-132 VAC/216-264 VAC, 50/60 Hz
AC Line Voltage	50/60 Hz, Auto-Detect; 120V/240V (-15%, +10%)
AC Input Connector	Neutrik PowerCon (NAC 3MPA)
AC Loop-thru	Neutrik PowerCon (NAC 3MPB)
AC Current Requirement	6A per system at 120V, 3A per system at 240V
Box Construction	5/8in. multi-ply exterior grade Baltic birch. Internally braced. Black DuraFlex™ finish
Grille	14 Gauge Black powder-coated perforated steel with foam backing
Dimensions (H x W x D)	13.6" (346 mm) x 22.3" (565 mm) x 16.2" (413 mm)
Net Weight	45.5 lbs (20.7 kg)
