JTS RU-8011DB/RU-850LTB UHF PLL Single Channel Diversity Wireless Bodypack System

RU-8011DB:

• Frequency Preparation PLL Synthesized Control
• Carrier Frequency Range 470 - 960 MHz
• Frequency Setting REMOSET U
• Receiving Mode Antenna Diversity
• Bandwidth 36MHz
• S/N Ratio >105dB(A)
• T.H.D <0.6%@1kHz
• Sensitivity -95dBm,S/N>80dB
• Rejection Ratio >80 dB
• Frequency Response 50Hz - 16kHz±2dB
• Antenna Type BNC Socket
• Antenna Booster Power DC12~15V/100mA
• Display LCD
• Display Contents Group, Channel, Frequency, Battery Level, Antenna A/B, Mute Display, AF Meter, RF
• Meter, Frequency Scan, Audio Level, Volume
• Controls Power ON/OFF, Group, Channel, Frequency, Mute Display, Key Lock, Volume, Output
• Attenuation (XLR), Frequency Scan (ON/OFF)
• Audio Output Level Ref/ ±22.5kHz Dev@1kHz Tone
• ψ6.3 Phone Jack/ -10dBV
• XLR Jack/ -4dBV(Line), -24dBV(MIC)
• Audio Output Impedance 600Ω
• Squelch Pilot Tone & Noise Mute
• Output Connector 1 independent balanced XLR and one Ø6.3mm unbalanced.
• Power Supply DC12~15V/300mA
• Dimension 212.3 mm (W) 38.3 mm (H) 144 mm (D)
• Notes Actual product specifications may vary depending on region

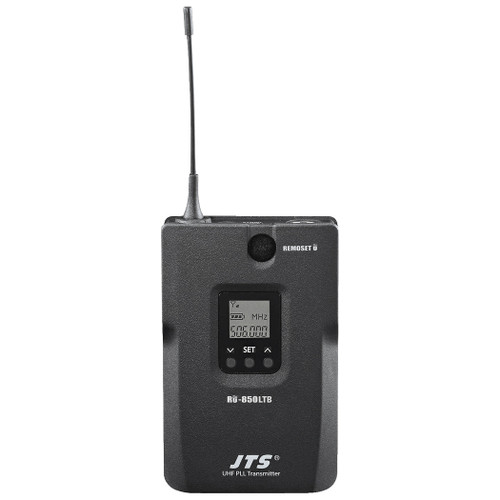

RU-850LTB:

• Frequency Preparation PLL Synthesized Control
• Carrier Frequency Range 470 - 960MHz
• Frequency Setting REMOSET U(Receive)
• RF Outpus Low / High
• Stability <±10kHz@Fc
• Frequency Deviation ±48kHz
• Spurious Emissions <-50dBc
• Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
• Display LCD+LED
• Input Connector 4P Mini XR
• Controls Power, Mute, Group, Channel,
• Frequency, Gain Adjust, Auto Power Off, Key
• Lock
• Battery UM3, AA x2
