JTS RU-8012DB/RU-850LTH UHF Dual Channel Diversity Wireless System (Open Box)

Open Box. NEW Condition. Authorized JTS Dealer. Documentation and Packaging as new product.

JTS RU-8012DB/RU-850LTH UHF Dual Channel Wireless System with 2 Handheld Microphones

The RU-8012DB/RU-850LTH UHF PLL dual-channel diversity wireless system is built on the proven performance of the US-8002DB platform and enhanced with JTS 2nd-generation wireless technology. Designed to operate efficiently in today's crowded RF environments, the system offers a higher number of compatible channels within limited bandwidth, ensuring stable and interference-free operation. General noise and hiss have been reduced to extremely low levels, delivering clean, clear audio suitable for critical sound applications.

Equipped with patent-pending REMOSET technology, the receiver can scan available frequencies and transfer channel data directly to the handheld transmitters with the push of a single button. Each RU-850LTH handheld microphone supports both REMOSET U synchronization and full onboard control, allowing users to adjust frequency, group/channel, sensitivity, RF power, and Auto Power Off settings directly on the transmitter when needed.

With a dependable operating range of up to 100 meters, the system meets the demands of live performances, presentations, houses of worship, and professional installations. A built-in quick Lock-On key prevents accidental setting changes, while an optional integrated charging system and built-in recharge circuitry provide an environmentally friendly upgrade path and extended battery life for long-term use.

RU-8012DB:

• Bandwidth: 36 MHz
• 6 groups, each with up to 22 compatible preset channels
• 1,441 selectable individual frequencies
• REMOSET ULTRASONIC technology for receiver/transmitter synchronization
• Removable antennas (BNC connection)
• Auto-scan function
• Pilot tone squelch and noise mute
• Backlit display with status indications, e.g. group/channel, frequency, battery, antenna A/B, RF receiving level, AF audio level
• 2 x XLR output (bal.) and 2 x 6.3 mm jack output (unbal.)

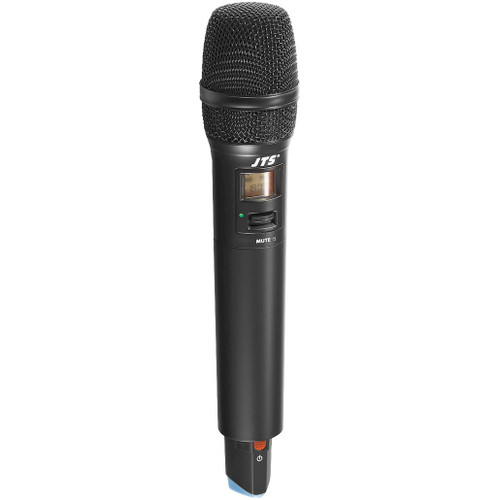

RU-850LTH:

• Frequency Preparation PLL Synthesized Control
• Carrier Frequency Range 470 - 960MHz
• Frequency Setting REMOSET U (Receive)
• RF Outputs Low / High
• Stability <±10kHz@Fc
• Frequency Deviation ±48kHz
• Spurious Emissions <-50dBc
• Function Mute, Auto Power Off, Sensitivity Adjust, Low Battery
• Display LCD+LED
• Controls Power, Mute, Group, Channel,
• Frequency, Gain Adjust, Auto Power Off, Key
• Lock
• Battery UM3, AA x2
