Open Box. NEW Condition. Authorized Juice Goose Dealer. Documentation and Packaging as new product.

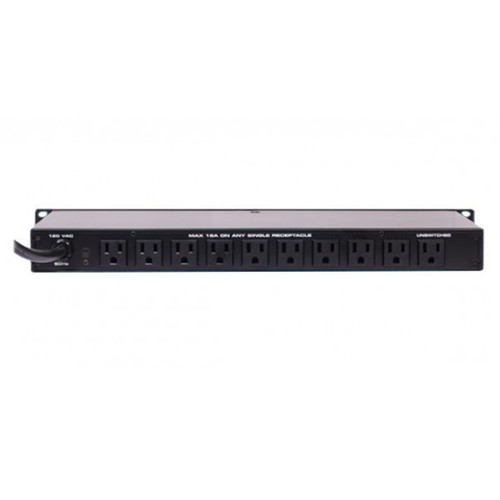

Juice Goose JG 11-20A
Power and convenience for higher current applications, the JG 11-20A has an amp circuit breaker, switch, wiring, and power cord - all the features required for heavier commercial and industrial applications. Note: The NEMA 5-20P plug connects only to a 20 amp rated receptacle.
This very economical package has 11 AC receptacles with one unswitched on each the front and back. In addition to a 20 amp capacity, the JG 11-20A has a front-mounted circuit breaker and a 15-foot-long power cord to use in difficult to reach applications.- Features
Features
- 11 AC receptacles for use with more densely packed
- 20 amp circuit breaker and a technical current rating of 16 amps
- 14.75 ft cord to allow use in difficult to reach applications
- Circuit breaker mounted on the front of the chassis to protect against current overload
- Specification
Input Voltage 120vac, 60 Hz Technical Current Capacity 12 or 16 Amps (80% of circuit breaker rating) Current Overload Protection Circuit Breaker, 15 or 20 Amp, Thermal on Front Power Cord 14.75 ft 12/3 SJT with NEMA 5-20 Plug Power Output Receptacles Eleven NEMA 5-15, 15 Amp Rating Each Ac Line Filtration Line Capacitor (Line & Neutral) Voltage Spike Protection Metal Oxide Varistor (Line & Neutral) Dimensions (H x W x D) 1.75" (44.5 mm) x 19" (483 mm) x 7" (177.8 mm) Weight 5.5 lbs (2.49 kg) - Documents
