Juice Goose SQ-1500 Sequenced Power Control System

Juice Goose SQ-1500 Power Sequencer Control System

The SQ-1500 sequenced power control system is an economical power sequencer for single rack applications when local or remote control is required. Remote activation with a latching contact closure makes installation and operation simple and efficient. It has a 15 amp capacity with 7 AC power outputs on the rear of the chassis. One output is unswitched. The remaining 6 outputs are grouped into 3 Power Pods of two outputs each. Each Power Pod is an individual sequence event. All outputs have Juice Goose quality surge and spike protection as well as line noise filtration.

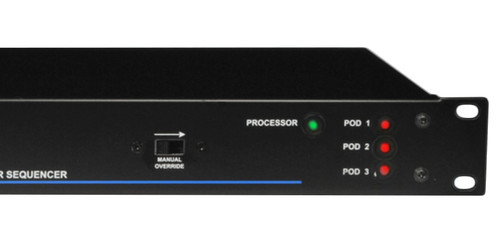

This product features LEDs on the front of the chassis for real-time monitoring of the processor and sequencing functions. A green flashing LED indicates the continuing operation of the processor that controls and drives the sequencer. Individual red LEDs are tied to the output of each of the relays. Each LED lights when its relay latches. The LED can only be on when the relay is latched.

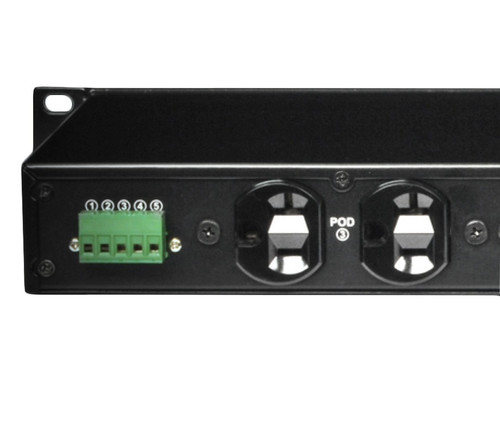

The sequence process of the SQ-1500 can be controlled with the switch on the front of the unit or by way of a remote latching contact closure connected to a terminal strip on the back. The SQ-1500 features three sequenced duplex receptacles and one unswitched AC receptacle. Each duplex has its own preset turn on and off timing. Signal source and processing equipment can be powered by the first sequence stages while amplifiers are powered by the last ones. All power-down sequences are exact reversals of the power-up sequences.

The SQ is a great choice for single rack applications where fifteen amp sequential power control is sufficient. For installations involving higher current or where multiple racks are involved see the Juice Goose CQ-1520 and other CQ Series products.
