Gym Sound System with 16 Bose Professional ArenaMatch Speakers, 8 DesignMax Speakers, 4 Subwoofers and Bluetooth Mixer (Discontinued Components)

Inside the Design

This large, high output distributed gym speaker system can cover the entire gymnasium, including the locker rooms, ticket area, and other auxiliary areas and provides high-quality sound reproduction with a high-SPL up to 121 dB for foreground music and clear intelligible vocals for play-by-plays, announcements and paging. This gym sound system comes with twelve Bose ArenaMatch AMU108 8" speakers with 90° x 60° of coverage, four AMU105 5.25" 100° x 100° speakers, eight 5.25" DesignMax in-ceiling speakers, and four 10" wall mount or floor subwoofers. Other features of this system include a Bose CC-64 wall control system for the entire gym, and two CC-16 wall controls for the locker room and ticket booth. An in-wall XLR input and Bluetooth mixer make it easy for multiple users to control the system or connect additional mics or audio sources for superb flexibility. You can easily adjust each individual input via the in-wall mixer, giving you full control of the audio mix.

Sound System Features:

• Superb intelligible speech for play-by-play and announcements
• Incredible foreground music reproduction with high SPL of 121 dB
• Durable IP55 weather-rated Bose loudspeakers with wide coverage and powerful subs
• Bose PowerMatch PM8500N configurable professional power amplifier provides concert-quality sound with a high level of scalability and configurability
• Shure QLXD124/85 handheld and lavalier wireless microphone combo delivers outstanding wireless functionality
• Denon DN-350UI internet radio and media player with Bluetooth for commercial applications

About the System Components

This high-quality gymnasium sound system includes twelve Bose ArenaMatch Utility AMU108 8" loudspeakers with 90° x 60° coverage and four Bose ArenaMatch Utility AMU105 5.25" loudspeakers with 100° x 100° coverage, both IP55 rated. Eight DesignMax DM5C 5.25" 60W in-ceiling speakers and four MB210-WR 10" weather-resistant compact subwoofers that can be wall mounted. Also included is a Bose PowerMatch PM8500N 8-channel power amplifier with Ethernet network control, that's 8 x 500W channels at 4 ohms and also has a USB port dual voltage Auto-Standby/Auto-Wake feature. We've also included a Bose AmpLink 24-channel input card to receive 24 digital audio channels from a Bose DSP via a shielded CAT 5 cable. The Atlas Sound WTSD-MIX31K indoor outdoor 3x1 analog wall mic / line / Bluetooth / aux mixer and all-weather security cover with lock and key provides flexibility and security. This system also includes two Shure QLXD124/85 handheld and lavalier combo wireless microphone systems, an SBC200-US dual docking battery charger with a PS45US power supply, and two Shure SB900B Lithium-Ion rechargeable batteries for extra backup. A Denon Professional DN-350UI internet radio and media player with Bluetooth, a Bose ControlSpace ESP-880A DSP 8-channel sound processor, an ART PS8-II professional power sequencer, a Bose ControlSpace CC-64 control center, a Bose ControlSpace CC-PS1 universal power supply, two Bose ControlSpace CC-16 zone controllers, an RDL TX-J2 unbalanced input transformer, a Gator GRW2012509 12U 21" deep sectional wall rack with a locking glass door, a GRW-DRW3 3U rack drawer with lock to safely store your mics, three Atlas Sound PPR1 1U recessed vent rack panels, a 50-pack of rack screws, two 3' prep wire to prep wire cables, two 3' female XLR to prep wire cables and 1,000' of West Penn 227 12/2 non-plenum speaker wire to complete your sound system.

Not sure if this is the right Gym Sound System solution for you?
Call our sales team at (888) 256-4112 or click the Add to Quote button to request a customized sound system that fits your needs.

Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeaker with 90° x 60° Coverage:

• Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
• Deploy to provide high-level foreground music in any outdoor venue
• Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant woofer cone coating, industrial polyurethane exterior coating, and molded cover to protect inputs
• Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for more consistent frequency and polar response
• Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSPs
• Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting brackets
• Provide wide, even coverage with 90° x 60° constant-directivity high-frequency horn, which can be rotated for horizontal or vertical installation
• Perform in the most demanding applications with 80 Hz – 18 kHz frequency response and 121 dB maximum peak SPL Support lowest vocal range with 1x Bose LF8 8-inch woofer featuring a 2-inch long-excursion voice coil, which extends response to 80 Hz

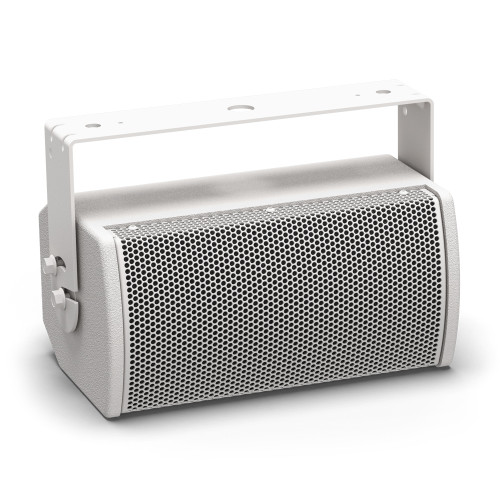

Bose ArenaMatch Utility AMU105 5.25" IP55 Rated Outdoor Loudspeakers:

• Deploy as zone-fill to support ArenaMatch arrays systems, delivering powerful, intelligible sound and ensuring consistent tonal balance with EMB2S compression drivers in every speaker
• Deploy for high-level foreground music in any outdoor venue
• Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurethane exterior coating, and molded cover to protect inputs
• Adapt to a variety of configurations — all models ship standard with 70/100V transformer inputs and passive crossover with optimized filters for more consistent frequency and polar response
• Streamline the design process by combining with complementary Bose Professional products, such as PowerMatch amplifiers and ControlSpace DSP
• Mount easily with included stainless-steel U-bracket; rear enclosure panel also includes M8 threaded inserts to accept third-party accessory mounting bracket
• Provide wide, even coverage with 100° x 100° constant-directivity high-frequency horn that provides the same coverage in either horizontal or vertical installation
• Perform in the most demanding applications with 100 Hz – 18 kHz frequency response and 118 dB maximum peak SPL
• Support lowest vocal range with 1x Bose LF5 5.25-inch woofer featuring a 1.5-inch long-excursion voice coil, which extends response to 90 Hz

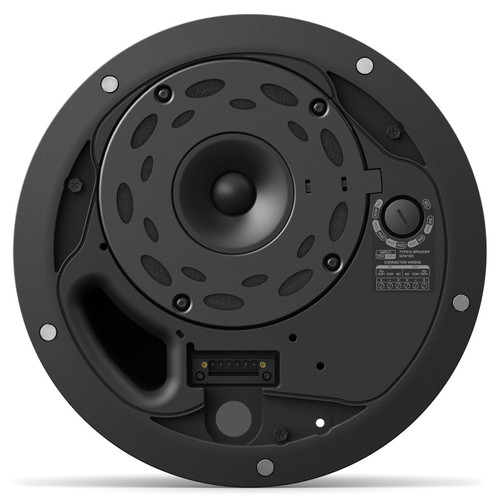

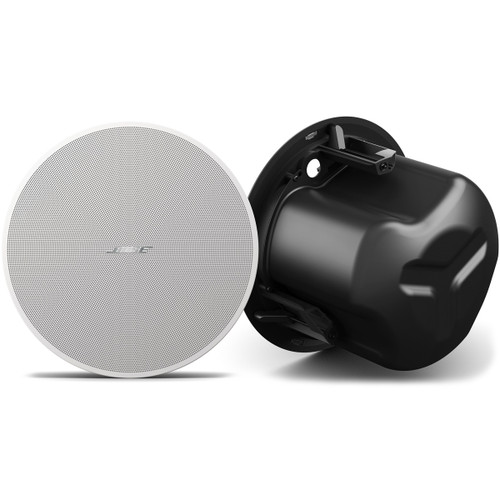

Bose DesignMax DM5C 5.25" In-Ceiling Loudspeakers 60W UL Plenum Rated:

• Combine models to complete any design, big or small — 12 loudspeakers to mix and match, from 2-inch, low-profile models to 8-inch, high-SPL compression-driver loudspeakers and outdoor-rated options
• Deliver instantly impressive sound with custom Bose drivers — no DSP or EQ required. For even better sound, use select Bose DSPs and amplifiers to enable Bose loudspeaker EQ and SmartBass processing, which expands performance and response at any listening level
• Ensure a consistent listening experience throughout the room with the Dispersion Alignment system, which matches the coverage of the woofer to the pattern of the tweeter
• Blend into any room design with elegant form factors, minimum-bezel grilles available in black or white, and removable logos
• Reduce installation time with the patented QuickHold mounting system, which also reduces strain, hassle, and the chance of product damage
• Install easily — all models include Euroblock connectors; ceiling-mounted models include plenum-rated backcans, tile-bridges, and front-access audio wiring that makes installation and troubleshooting easier



Bose MB210-WR Outdoor-Rated 10" Compact Subwoofers:

• 2 x 10" high-excursion woofers for high-output bass in a compact enclosure. Transducers derived from award-winning Bose F1 portable, powered subwoofer
• 500W long-term power handling for high sound output and reliability
• Low-frequency extension down to 37 Hz for impactful, deep-bass music reinforcement
• 123 dB maximum continuous SPL, 129 dB peak SPL
• Exterior-grade plywood enclosure with compact size for installations
• Install outdoors with an IP55 weather rating, three-layer stainless steel grille, water-resistant coating on woofer cone, industrial polyurea exterior coating, and molded cover to protect inputs
• U-bracket included for easy mounting to walls or ceilings



Bose PowerMatch PM8500N 8-Channel Configurable Power Amplifier with Ethernet Network Control:

• QuadBridge™ Technology
• Bose ControlSpace® Designer™ software
• Auto-Standby/Auto-Wake function
• Dual voltage and current feedback loop
• PeakBank power supply
• Fast-tracking power factor correction
• Class-D PowerMatch amplifier

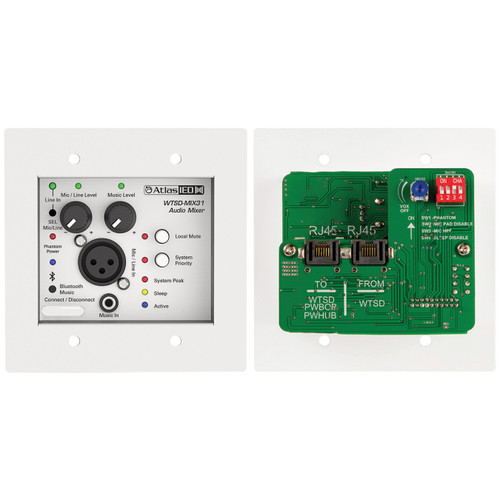

Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer:

• Indoor/outdoor use
• XLR balanced mic or line input with individual level controls
• 3.5 mm stereo actively summed input with level control
• Commercial grade Bluetooth input with level control
• Fits most 2-gang boxes
• Uses industry-standard Cat5 or Cat6 cable
• High gain balanced line output for applications up to 400ft
• 120Hz/12dB low cut filter for mic/line
• Local mute switch
• Remote trigger output for remote amplifier turn on
• System priority mute function
• Input signal and peak indicators
• Energy-saving auto-sleep mode

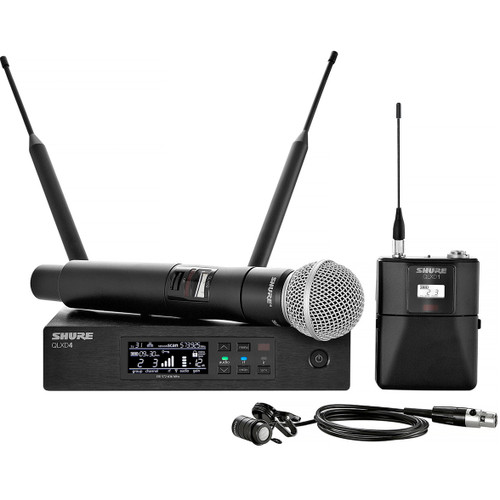

Shure QLXD124/85 Handheld and Lavalier Combo Wireless Microphone Systems:

• Interchangeable microphone capsule offers amazing flexibility
• Lavalier microphone allows for hands-free vocal performance
• Over 120dB of dynamic range provides ample headroom
• Digital predictive switching diversity ensures solid RF connection
• AES 256-bit encryption for secure transmission
• One-touch sync function for easy set up
• LCDs provide easy to navigate menus and controls
• Selectable display mode shows group/channel, frequency, or battery runtime
• Audio and RF LED meters let you monitor levels and signal strength
• External charging contacts for docked charging
• Mac, PC, and iOS-compatible for remote operation
• Rugged construction provides durability

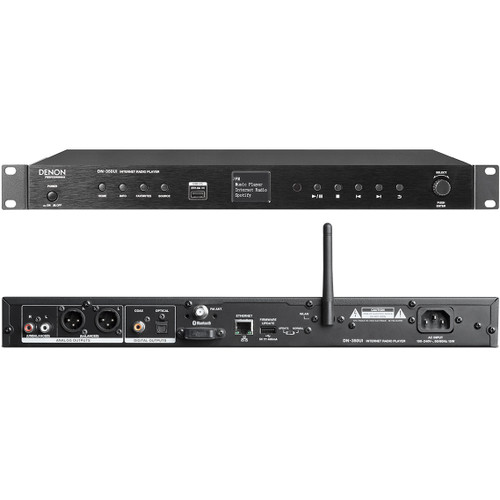

Denon Professional DN-350UI Internet Radio and Media Player with Bluetooth:

• Internet radio and FM tuner
• Enabled with Spotify Connect for direct music streaming
• Network-ready via Ethernet port
• Play files from USB media and Bluetooth devices
• Balanced XLR and unbalanced RCA outputs
• Digital coax and optical outputs



Bose ControlSpace ESP-880A DSP 8-Channel Sound Processor:

• High-quality analog circuitry offers both mic and line-level I/O, operates with ultra-low noise and 115 dB dynamic range
• Advanced digital signal processing supports audio at 48 kHz sample rate/24-bit, uses a floating-point open architecture DSP, and operates at low latencies for sound system precision
• Integrated AmpLink connection uses standard CAT 5 cables to send up to 8 channels of low-latency, uncompressed digital audio to compatible Bose amplifiers
• Bose ControlSpace Designer software enables a large set of signal processing modules, such as automatic mic mixing, multiband graphic and parametric EQs, Bose loudspeaker libraries, signal generators, routers, mixers, AGCs, duckers, gates, compressors, source selectors, and delays
• A variety of control options — ControlSpace ESP products are compatible with the programmable Bose CC-64 and CC-16 controllers, ControlCenter zone controllers, and ControlSpace Remote clients
• Supports industry-standard control systems using a comprehensive serial protocol through onboard RS-232 and Ethernet ports, with available drivers for AMX and Crestron-based systems

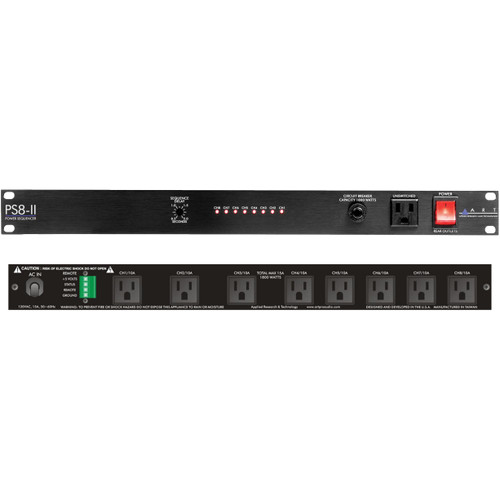

ART PS8-II Professional Power Sequencer:

• Adjustable sequence delay range from 0.5 to 2.0 seconds per output
• Eight individually sequenced outputs with front panel led indicators for each
• Rear mount remote control terminal block for remote sequence control
• Front panel unswitched and unregulated output
• 1800 watt total power capacity
• Front panel master breaker and power switch
• EMI and RFI filtering
• Surge and spike protection

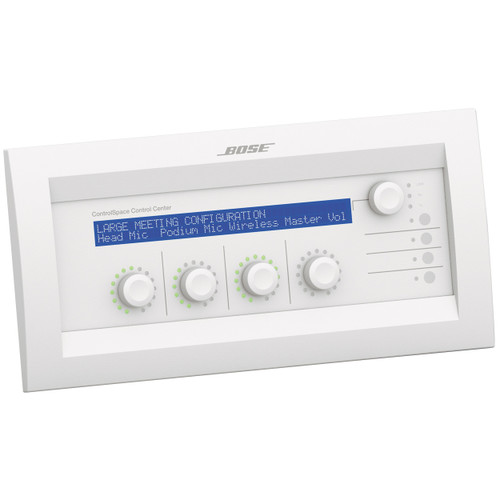

Bose ControlSpace CC-64 Control Center for ESP Processors and/or PowerMatch Amplifiers:

• Elegant styling with easy-to-read dynamic labeling for simplified end user operation
• 2-line by 40-character backlit LCD screen
• Four gain/selector control knobs (rotary/push) with LED rings
• Four bank switch buttons to change Gain/Selector control knob mapping for 16 unique controls
• One master scene/preset recall knob (rotary scroll/push to select)
• Simplified drag-and-drop setup using ControlSpace® Designer™ software
• Customizable on-screen wording provides easier system operation
• Supports programming of easy-to-select scenes – allowing multiple room usage scenarios to be recalled from the CC-64 by end users
• Programmable software lock-out
• Fits into a standard 5-gang electrical wall box

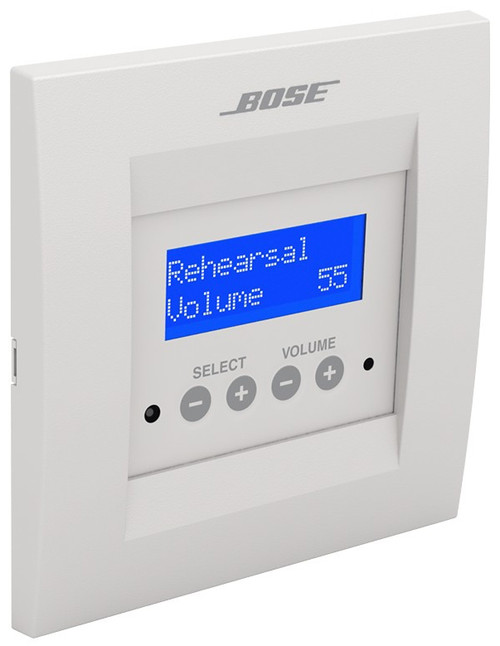

Bose ControlSpace CC-16 Zone Controllers:

• Elegant styling with intuitive controls for end user operation
• 122 x 32 pixel backlit blue LCD
• Sealed VOLUME +/- and SELECT +/- pushbuttons
• Simplified drag-and-drop setup using ControlSpace® Designer™
• DIP switch addressing on back of unit
• Programmable control of system elements (switching of audio sources, system configurations)
• Supports programming of easy-to-select scenes—allowing multiple room usage scenarios to be recalled from the CC-16 by end users
• Customizable on-screen wording provides easier system operation
• Programmable software lock out
• Fits into a standard 2-gang electrical wall box

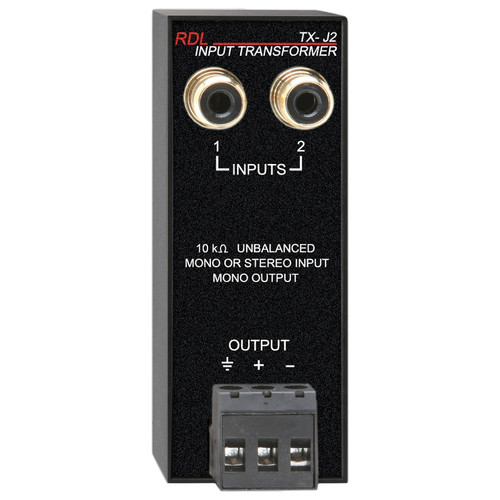

RDL TX-J2 Unbalanced Input Transformer:

• Mix two unbalanced audio signals to mono balanced
• Combine stereo into mono with balanced output
• Unbalanced to balanced conversion without gain
• Hum cancellation on unbalanced line inputs
• Frequency response 30 Hz to 20 kHz (+/- 1 dB)

• (12) Bose ArenaMatch Utility AMU108 8" IP55 Rated Outdoor Loudspeaker with 90° x 60° Coverage
• (4) Bose ArenaMatch Utility AMU105 5.25" IP55 Rated Outdoor Loudspeakers
• (8) Bose DesignMax DM5C 5.25" In-Ceiling Loudspeakers 60W UL Plenum Rated
• (4) Bose MB210-WR Outdoor-Rated 10" Compact Subwoofers
• (1) Bose PowerMatch PM8500N 8-Channel Configurable Power Amplifier with Ethernet Network Control

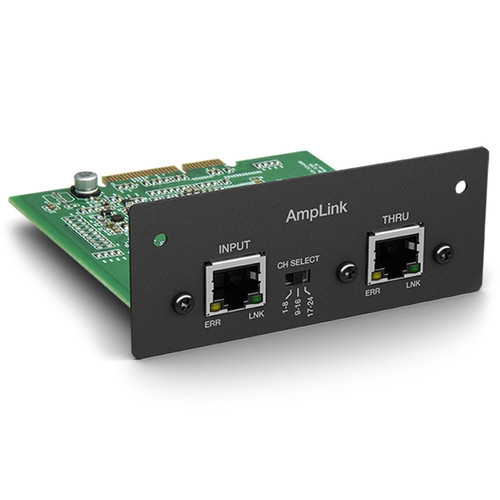

• (1) Bose AmpLink 24-Channel Input Card
• (1) Atlas Sound WTSD-MIX31K Indoor Outdoor 3x1 Analog Wall Mic / Line / Bluetooth / Aux Mixer
• (1) Atlas Sound WTSD-COVER All-Weather Security Cover for WTSD Wall Plates
• (2) Shure QLXD124/85 Handheld and Lavalier Combo Wireless Microphone Systems
• (1) Shure SBC200-US Dual Docking Battery Charger with PS45US Power Supply

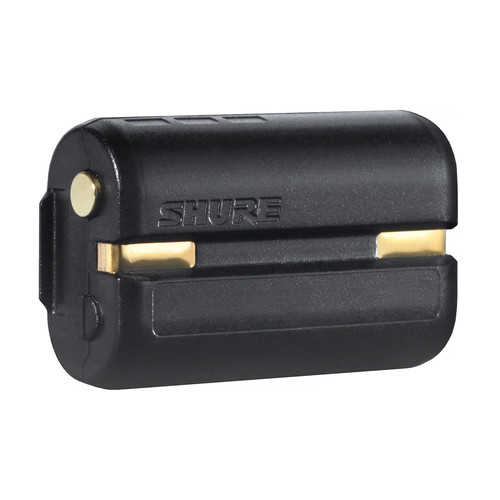

• (2) Shure SB900B Lithium-Ion Rechargeable Batteries
• (1) Denon Professional DN-350UI Internet Radio and Media Player with Bluetooth
• (1) Bose ControlSpace ESP-880A DSP 8-Channel Sound Processor (Balanced, Mic/Line Level) 8x8 I/O 48 kHz/24-Bit Sample Rate
• (1) ART PS8-II Professional Power Sequencer
• (1) Bose ControlSpace CC-64 Control Center for ESP Processors and/or PowerMatch Amplifiers
• (1) Bose ControlSpace CC-PS1 Universal Power Supply
• (2) Bose ControlSpace CC-16 Zone Controllers
• (1) RDL TX-J2 Unbalanced Input Transformer
• (1) Gator GRW2012509 12U 21" Deep Sectional Wall Rack with Glass Door

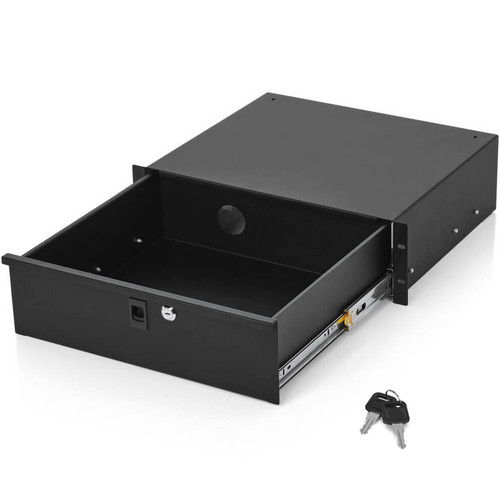

• (1) Gator GRW-DRW3 Rackworks Rack Drawer with Lock

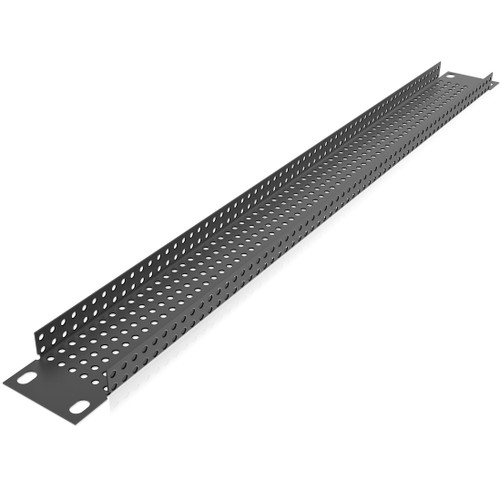

• (3) Atlas Sound PPR1 19" 1 RU Recessed Vent Rack Panels
• (1) Gator GRW-SCRW050 Rack Screws (50 Pack)
• (2) CBI MLN-3-PREP Prep Wire to Prep Wire Cables - 3ft

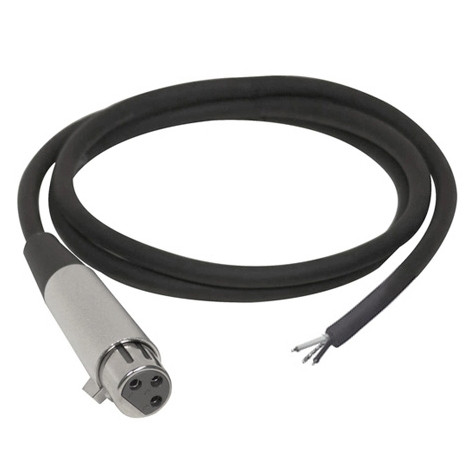

• (2) CBI MLN-3 Female XLR to Prep Wire Cables - 3ft

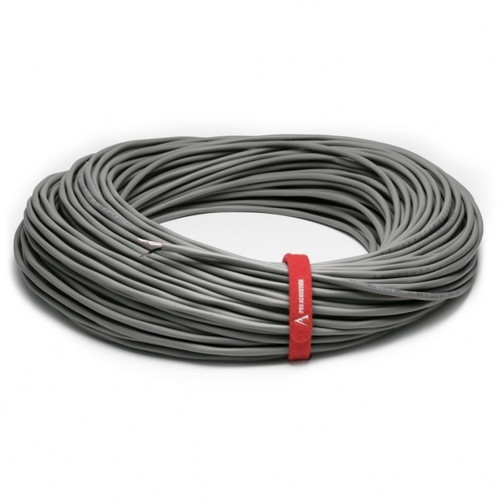

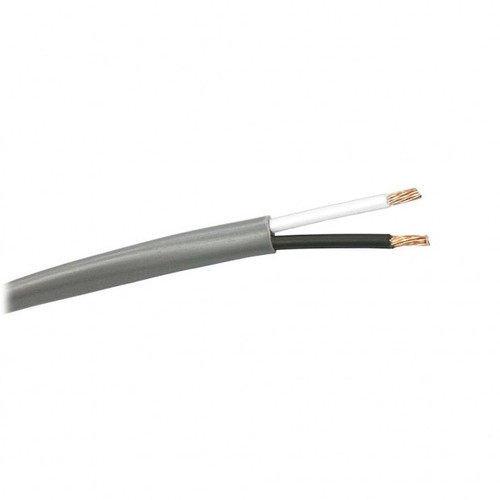

• (1) West Penn 227 12/2 Non-Plenum Audio Speaker Wire - 1,000ft
