Lexicon Omega Desktop Recording Studio (Discontinued)

Lexicon Omega Desktop Recording Studio (Discontinued)

Name: Lexicon Omega Desktop Recording Studio (Discontinued)
Brand: Lexicon
SKU: LEXICON-Omega
Price: 129 USD
Availability: OutOfStock

Write a Review

Part #:

Omega

Model #:

Omega

Current Stock:

Availability: No Longer Available

Contact us for comparable solutions.

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

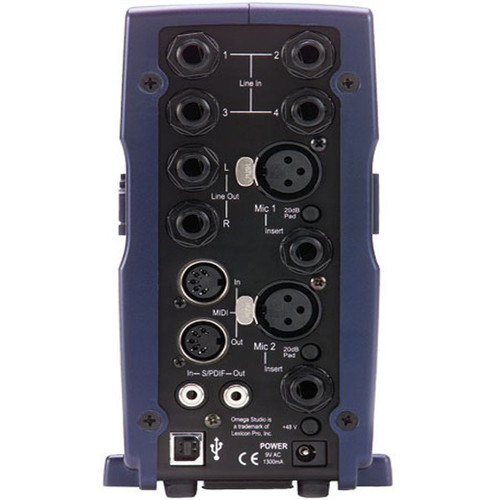

Unlike standard computer I/O boxes based on a patch bay concept, the Lexicon Omega Studio is designed and built around the same paradigm as large-format recording consoles. An 8-input, 4-Bus, 2-output USB I/O mixer with inserts, instrument input, MIDI I/O and complete metering and monitoring functions gives you the freedom to record up to 4 tracks at once and mix without the need for additional mixing hardware.

Description

Nothing is more frustrating than buying a "recording system," only to find out that you need a gaggle of extras just to make it all work. Omega Studio is a completely integrated computer recording system that includes the Omega 8x4x2 USB I/O Mixer, Steinberg's® Cubase LE audio and MIDI recording software, and Lexicon's world-class Pantheon VST Reverb plug-in. The Omega Desktop Recording Studio quite literally contains all the necessary components to transform your computer into a professional 24-bit recording studio - all in one box.

Features

Maximum Input Level +19 dBu (40 Ohm source impedance).
USB Type B Socket: Version 1.1, Version 1.1 hubs are not supported.
Send Level (ring) +19 dBu maximum.

Specifications

Microphone Inputs	(2) Female XLR Pin 2 Hot
Input Impedance	664 Ohms balanced
EIN	-118 dB @ 51 dB gain (150 Ohm source impedance) -120 dB A-weighted
Maximum Input Level	-2 dBu (150 Ohm source impedance)
Frequency Response	+0, -0.2 dB 20 Hz - 20 kHz, ref. 1 kHz
Microphone Inputs	Microphone Inputs
Input Impedance	Input Impedance
Input Impedance	+48 Volt
THD+N
Insert Inputs	(2) 1/4" TRS balanced or unbalanced
Send Level (ring)	+19 dBu maximum
Impedance	110 Ohms
Headphone Output	(1) 1/4" stereo jack 100 mW per channel at 50 Ohms
MIDI Interface	5 pin DIN connectors for MIDI in and MIDI out
Digital Audio Input	Digital Audio Input
Digital Audio Output	Coaxial RCA (S/PDIF format) always transmits the audio data from the USB stream
D/A and A/D Conversion Sample Rate	44.1 kHz or 48 kHz (determined by computer application)
USB Type B Socket	Version 1.1, Version 1.1 hubs are not supported
Power Requirements	PS0913-B adapter supplied
Dimensions	4.625" W x 7.25" H x 7.75" D (118mm x 184mm x 197mm)
Weight	2.65 lbs
