Library Sound Masking with Multi-Zone, Background Music and Paging Capabilities

Inside the Design

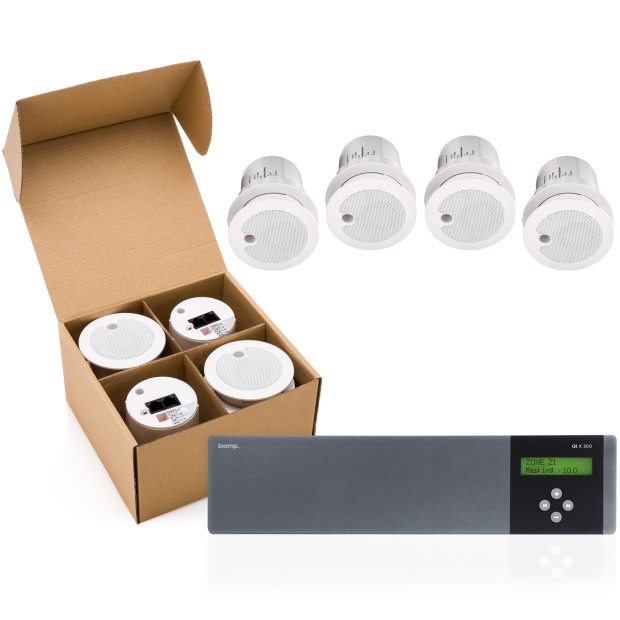

This library sound masking system is designed to improve acoustics and enhance speech privacy in study areas and multi-purpose learning spaces. Featuring eight Cambridge Qt Active Emitter loudspeakers, the system delivers uniform, unobtrusive masking sound while supporting paging and background audio. The Cambridge Qt X 300 3 Zone Sound Masking Generator with AVB Media Network provides flexible control over three separate zones, allowing library staff to tailor masking levels for optimal acoustical comfort. Power is supplied via the Cambridge Active Emitter Power Supply and Power Injector, ensuring reliable operation across all emitters.

Sound System Features:

• Three-zone sound masking coverage with precise control for medium-to-large spaces
• High-performance active emitters provide clear masking while supporting paging and background audio
• AVB media network-enabled generator for easy integration and remote control
• Expandable system design to accommodate additional emitters as needed
• External power supply and injector simplify wiring and installation
• Compact, unobtrusive speakers blend seamlessly into ceiling environments

About the System Components

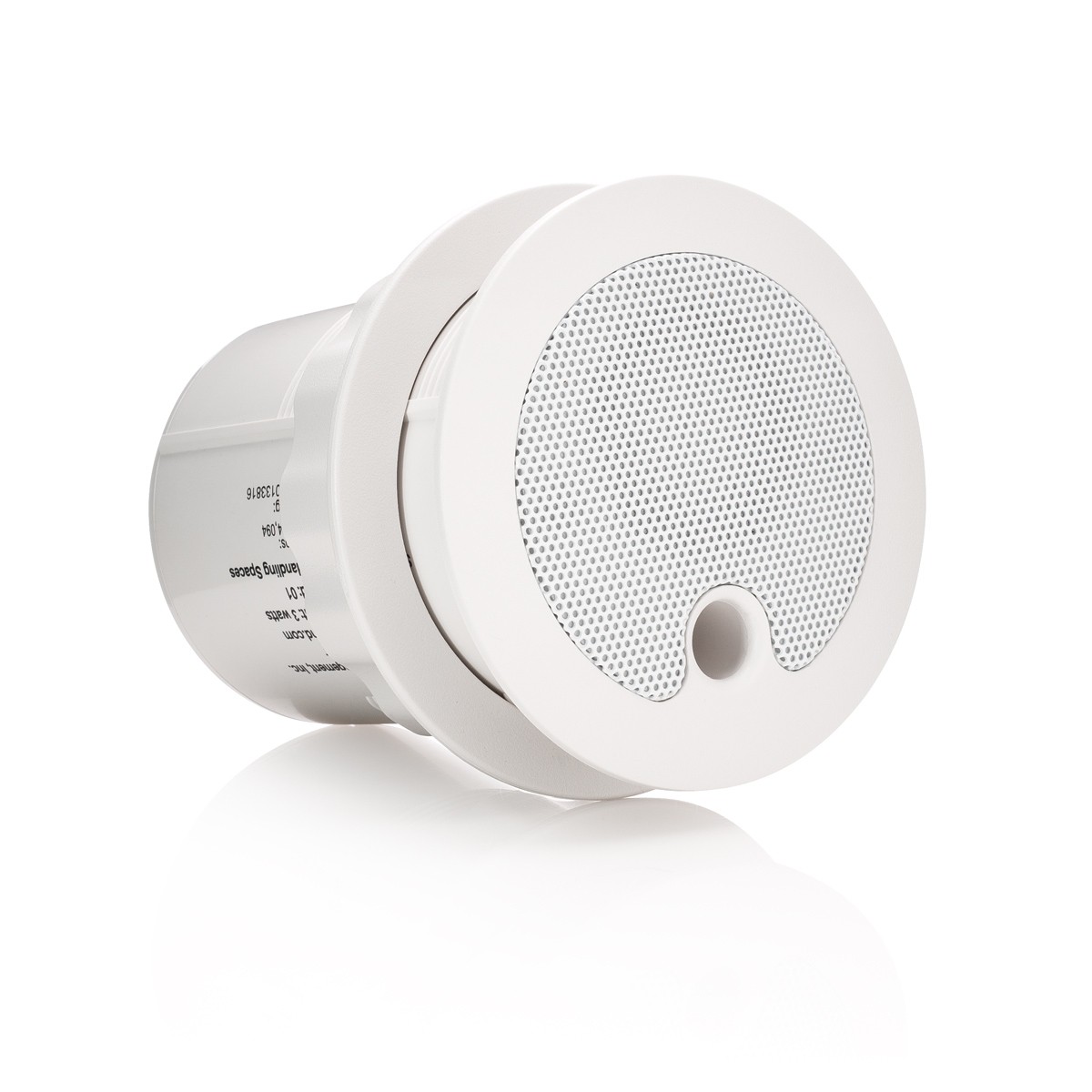

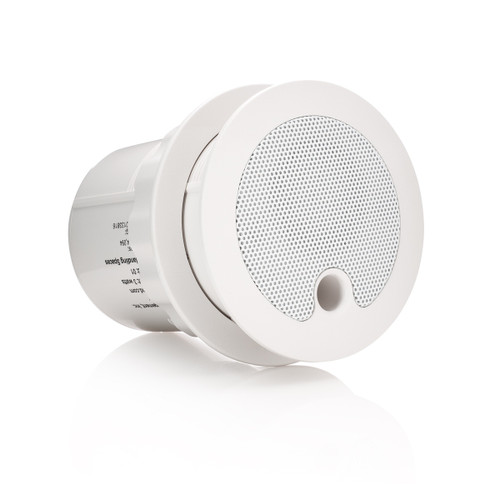

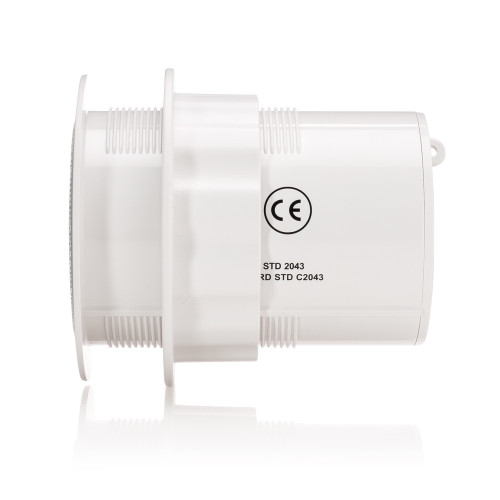

Cambridge Qt Active Emitter Loudspeakers

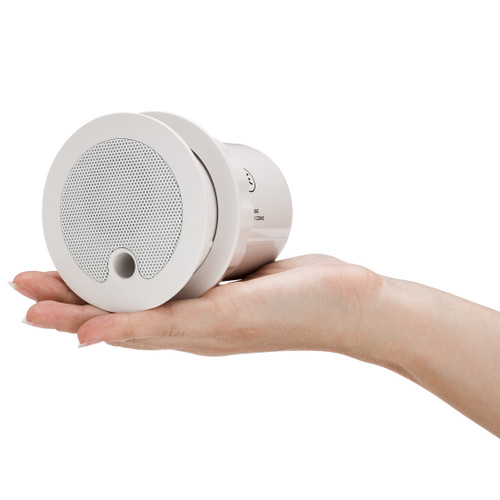

The Cambridge Qt Active Emitter is a compact, high-output speaker designed for direct field sound masking. It delivers consistent, uniform coverage across a wide frequency range, supporting both speech privacy and clear reproduction of paging and music signals. Once installed in finished or open ceilings, these emitters remain virtually invisible, providing effective sound masking without impacting the aesthetic of the space.

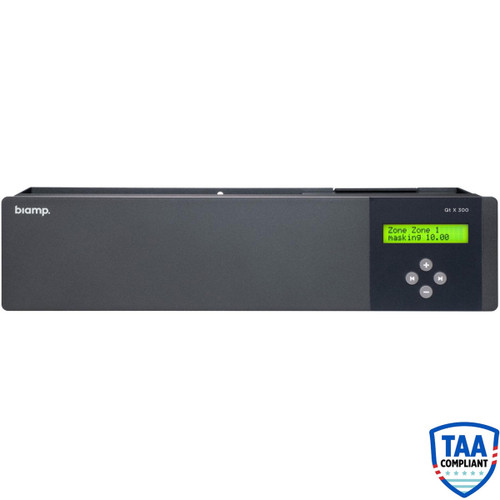

Cambridge Qt X 300 3 Zone Sound Masking Generator

The Cambridge Qt X 300 is a three-zone sound masking generator ideal for medium multi-zone spaces. With integrated AVB media network support, it allows flexible and precise control of masking levels and zones. Users can manage the system through an intuitive front panel or remotely via Qt Monitoring and Control software on a PC, Mac, or tablet. The generator also supports auxiliary audio inputs for paging or background music, making it a complete acoustical solution for libraries and study areas.

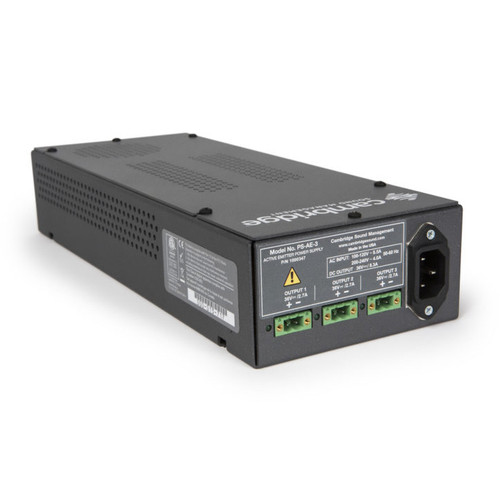

Cambridge Active Emitter Power Supply

The Cambridge Active Emitter Power Supply provides stable, reliable DC power to all Qt Active Emitters in the system. Designed for continuous operation, it ensures optimal emitter performance, consistent sound masking coverage, and efficient energy management in multi-zone installations.

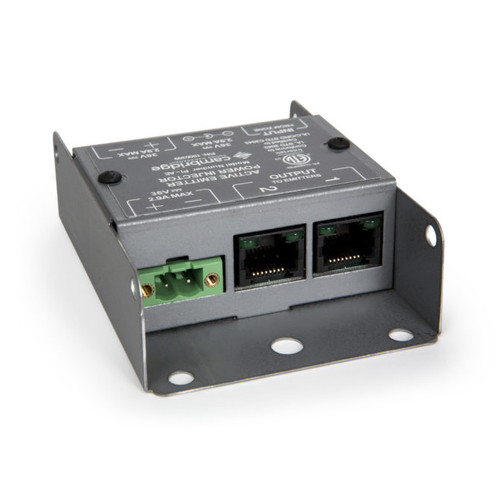

Cambridge Active Emitter Power Injector

The Cambridge Active Emitter Power Injector simplifies installation by delivering power to remote emitters over the same cable used for signal distribution. This reduces wiring complexity while maintaining reliable operation and consistent sound quality across the system.

System & Component Videos

Cambridge Qt Active Emitter Loudspeakers

• Active electronics power the speaker for consistent performance
• Ported enclosure extends low-frequency output to 125 Hz for sound masking and 115 Hz for paging/music
• 17 dB louder than previous direct-field emitter models
• Plenum-rated, UL-listed, and complies with UL 2043
• Delivers four uncorrelated audio channels to reduce phasing and comb-filtering
• Slip-ring mount included for easy acoustical tile ceiling installation

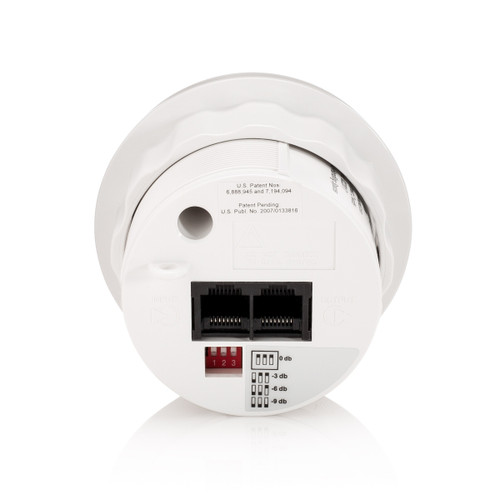

• Rear DIP switches allow fine volume reduction in 1.5 dB increments
• Compatible with Cambridge Qt 300 and Qt 600 control modules
• Web-based management allows remote control from any device

Cambridge Qt X 300 3 Zone Sound Masking Generator

• Powered by direct-field Quiet Technology to reduce acoustic interference
• Provides uniform sound masking from the emitter rather than through the ceiling
• Minimizes need for costly construction or sound-blocking materials
• Quick installation—each emitter takes less than 15 minutes and works in any ceiling type
• Supports three independent zones for flexible multi-area sound masking
• GreenSpec-listed and energy-efficient sound masking solution
• AVB Media Network enables seamless integration of paging and music signals

Cambridge Active Emitter Power Supply

• Provides reliable, consistent power to all Qt Active Emitter Loudspeakers
• Supports multiple emitters for larger system configurations
• Designed for efficiency and long-term operation
• Easy installation and compatible with standard building power
• Ensures optimal operation for sound masking, paging, and music

Cambridge Active Emitter Power Injector

• Delivers power over the signal lines directly to each Active Emitter
• Reduces need for additional cabling, simplifying system installation
• Compact, robust design integrates seamlessly with the Qt Active Emitter system
• Ensures stable operation and full functionality across all zones
• Enables flexible emitter placement throughout the space

Brochure

Qt X 300 Data Sheet

Qt Active Emitters Spec Sheet

• (8) Cambridge Qt Active Emitter Loudspeakers
• (1) Cambridge Qt X 300 3 Zone Sound Masking Generator
• (1) Cambridge Active Emitter Power Supply
• (1) Cambridge Active Emitter Power Injector
• (1) Signal Cable - Cat 3, 5, 5e, 6 UTP Category - Plenum Rated Cable
• (1) Power Cable - 14/2 Plenum Rated Cable for Qt Active Emitter Power Supply

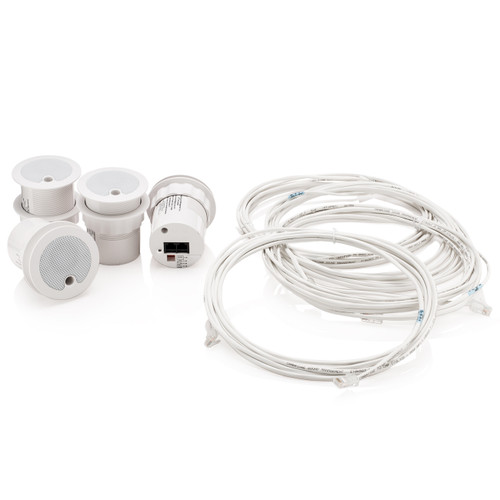

• (8) 16' Powered Signal Cables – Cat 3, 5, 5e, 6 UTP Category – Plenum Rated Cable
