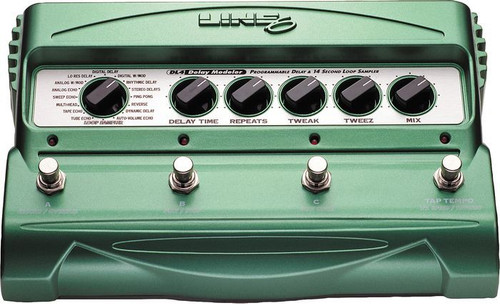

Line 6 DL4 Delay Guitar Effects Pedal (Discontinued)

Part #:
122094
Model #:
DL4
Availability: No Longer Available
Contact us for comparable solutions.
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL
The DL4 has in turn become a classic in its own right, as popular with guitarists as it is with singers, drummers, bassists, keyboardists, and anyone who wants a pure 24-bit true stereo signal path in the service of delays.

Description

You’d be insane to pack an original Roland® RE-101 Space Echo or Electro-Harmonix® Deluxe Memory Man into the back of your van for a club tour, but the DL4 packs models of those sounds and many more into a rugged, road-tested steel housing that can run for up to 30 hours on four “C” batteries or with the optional PX-2G power adaptor. Models of classic delay boxes—and the sweet choruses and vibratos that accompany many of them—are just the beginning; the DL4 also boasts innovative sounds like its “Auto-Volume Echo,” which combines a volume swell with a tweakable tape-style echo; or the outstanding “Reverse Delay,” which allows you to play stunning backwards guitar solos on the fly.

You also get those U2-style “Rhythmic Delays” in several metric flavors, super-cool “Ping-Pong Delay” effects, and outrageous stereo panned repeats. Look, if it ain’t in the DL4, it probably doesn’t exist . . . until you create it. What’s more, with its onboard 14-second looper, the DL4 is both the perfect practice tool and the ultimate creative canvas for crafting overdubs and creating textures, with its ½ speed and reverse modes ideal for sonic adventurers and arrangement-minded recordists alike.

Like all Line 6 stompbox Modelers, the DL4 boasts a simple and sturdy front panel design, with four footswitches for saving and recalling your sounds, and six knobs for selecting models and tweaking parameters, with distinct assignments for each knob depending on the delay model you’ve chosen. Paired with the optional EX-1 expression pedal, which lets you morph between two radically different settings for each of your sounds, the DL4 is truly the ultimate delay pedal, making the history of echo and delay available to your creative future.

Features

  • 16 vintage delay and echo effects including Tube Echoplex, Space Echo, Deluxe Memory Man, and more.
  • Provides for 3 programmable presets.
  • Tap tempo control.
  • 14 seconds of sample-loop memory.
  • True bypass switching.
  • Expression pedal input.

Specifications

Digital Effects 16
Factory Presets 18
User Programmable Channels 3
Controls Effect Selector, Delay Time, Repeats, Tweak, Tweez, Mix
Additional Controls Tap Tempo (included), EX-1 Expression Pedal (optional)
Mono/ Stereo Stereo in, Stereo out (Loop Sampler sums signal to mono)
Chassis Color Green
Dimensions Length: 10-inches/25.4 cm; Width/Depth: 6-inches/15.24 cm; Height: 2.5-inche
Weight 3.1 lbs
