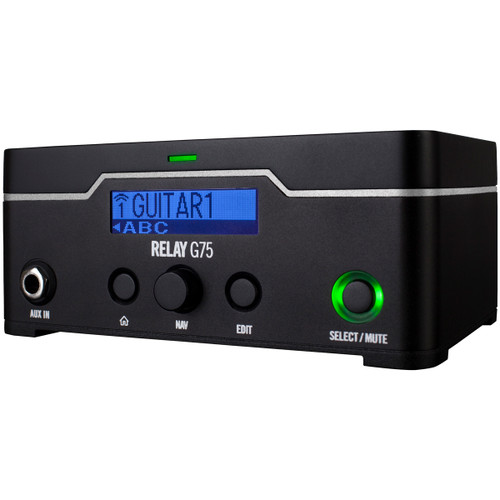

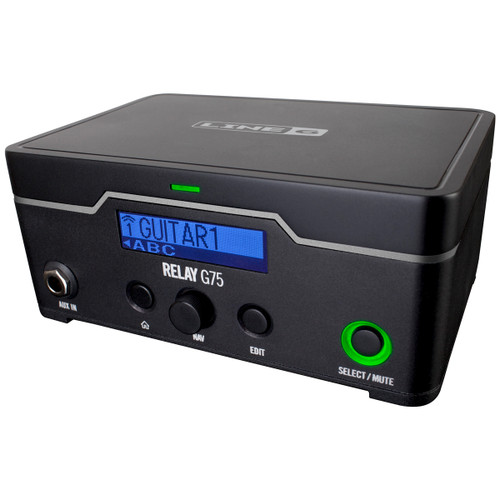

Line 6 RELAY G75 Wireless Digital Guitar System (Discontinued)

Proven on stages worldwide, Line 6 digital wireless technology delivers industry-leading audio specs and the lowest-available latency. Relay G70 and G75 build on that legacy to offer next-generation performance, unmatched sound quality and unprecedented flexibility for guitarists. Plug right into the locking 1/4" input on the transmitter-no special cables required. Easily add additional transmitters and instantly switch between instruments, complete with programmable presets for signal routing, levels and more. Featuring rugged metal construction and 8+ hours of battery life (with 50+ hours of standby time), Relay provides tried-and-true performance from stage to studio.

• 24-bit/48kHz uncompressed digital transmission
• Best-in-class DAC and ADC converters provide super-low noise transmission (better than 120dB dynamic range)
• Rugged metal transmitter and receiver construction
• Locking 1/4” input on transmitter—no special cables required
• Receiver accommodates multiple transmitters, with footswitch (G70) or pushbutton (G75) selection*
• Programmable scenes allow you to select signal input source, gain, Cable Tone and output routing for multiple instruments
• Select any combination of the two 1/4” outputs and one XLRDI output for each instrument
• 8+ hours of battery life with 50+ hours of standby time
• Breakthrough low latency (<1.5ms from analog input to analog output)
• Built-in, calibrated, quad antenna array with advanced dual receiver topology
• Auxiliary 1/4” input jack on receiver for plugging in directly without re-patching
• Onboard tuner and dedicated tuner 1/4” output
• High-quality XLR direct output with ground lift ensures consistent audio performance when connecting directly to the board or a modeler
