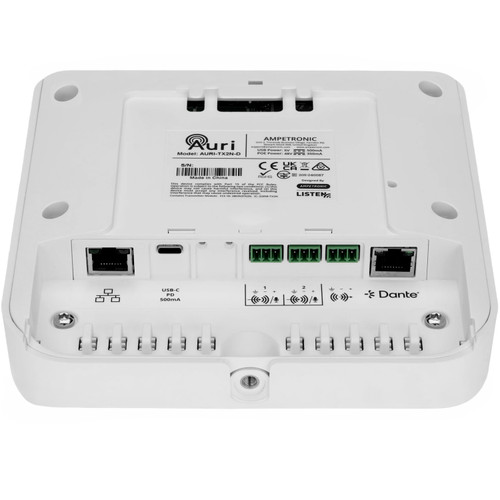

The AURI-TX2N-D Auri 2-channel transmitter with Dante is a sleek, low-profile transmitter designed for professional assistive listening installations. Its two balanced mic/line inputs with phantom power provide flexible connectivity for audio sources, while the Ethernet connection supports PoE, network management, and Audio over IP. Optional integrated Dante support provides additional networked audio flexibility for compatible installations.
Designed for straightforward installation, the transmitter includes a versatile mounting bracket for wall or ceiling applications, along with two radios that support flexible routing options and repeater mode for expandable coverage. USB-C or PoE power provides convenient installation options, while the balanced line output adds flexibility for connecting to additional audio equipment. The transmitter is finished in white for a clean, professional appearance that integrates easily into installed AV environments.
Note: The power supply is not included. The transmitter can be powered by PoE or with a USB-C power supply, available separately as the LA-425.
| Input Selection | 2 x audio inputs individually selectable between mic, line or optional Dante modes |
|---|---|
| Connection | 2x 3-way 3.5 mm pitch Euroblock Shared RJ45 with control and PoE |
| Input Impedance | 15 kΩ |
| THD+N | 0.03% at 0 dBu (line mode) 0.02% at -25 dBu (mic mode) |
| Common Mode Rejection | 56 dB |
| Max Level Before Clipping | -25 dBu |
| Sensitivity | -65 dBu |
| Channels | 2x stereo inputs, 2x stereo outputs |
| Format | Multicast RTP |
| Bit Depth | 16 bit |
| Sample Rate | 16 kHz, 24 kHz, or 48 kHz, matched to broadcast |
| Bandwidth | 0.5M bit/s (16 kHz) to 1.5M bit/s (48 kHz) per stereo stream |
| Latency | 5 ms nominal |
| Power Consumption | USB-C: 5V, 370 mA (1.85W) PoE: 48V, 53 mA (2.54W) |

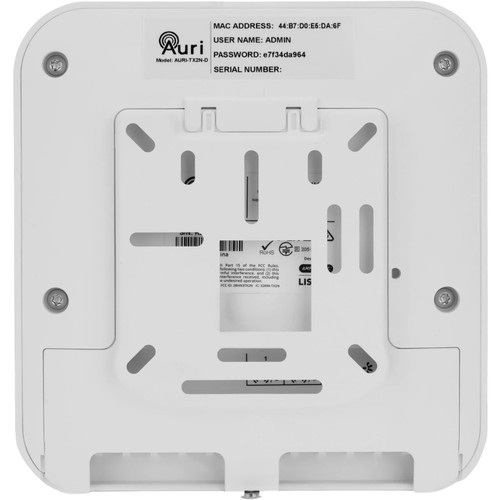

| Mounting | Removable wall/ceiling bracket. Multiple holes to support mounting on standard UK, EU and US electrical back boxes and VESA 75 |
| Dante | Integrated Dante |
| Color | White |
| Dimensions (H x W x D) | 7.20" (183 mm) x 6.81" (173 mm) x 1.89" (48 mm) |
| Weight | 1.04 lbs (0.47 kg) |
