Listen Tech LS-91 ListenIR iDSP Level II Infrared Assistive Listening System
LT-84-01 ListenIR Transmitter Radiator Combo front
LT-84-01 ListenIR Transmitter Radiator Combo back

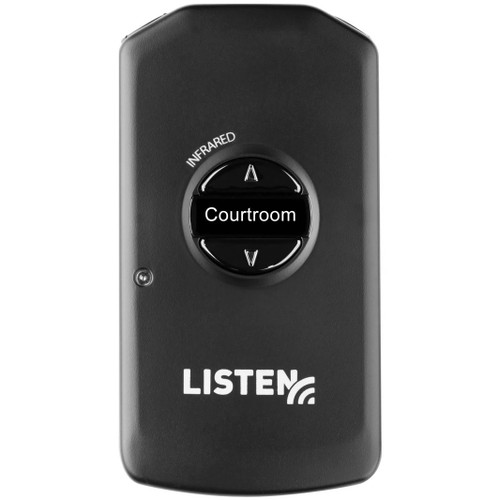

LR-4200-IR Intelligent DSP IR Receiver
LA-401 Universal Ear Speaker
LA-430 Intelligent Ear Phone Neck Loop Lanyard
LA-381-01 Intelligent 12-Unit Charging Tray

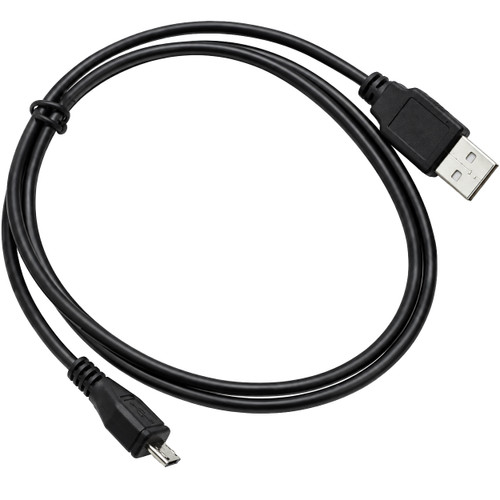

LA-422 USB to Micro USB Cable
LA-303 Multi-Lingual Assistive Listening Notification Sign
By Listen Technologies

Listen Tech LS-91 ListenIR iDSP Level II Infrared Assistive Listening System with 2 Receivers

Write a Review
Part #:
LS-91-01
Model #:
LS-91
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.

Shipping Notice:  We are moving! Shipping will be temporarily paused from October 15 to 20 and will resume on October 21.

Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The Listen Technologies LS-91 infrared assistive listening system is designed for venues with up to 50 seats. It includes an LT-84 transmitter-radiator combo, two iDSP receivers, T-coil-compatible neck loop lanyards, ear speakers, and a 12-unit charging tray for secure single-channel audio transmission.

Description

Listen Tech LS-91 ListenIR iDSP Level II Infrared Assistive Listening System

The LS-91 ListenIR iDSP Level II system from Listen Technologies comes complete with everything needed to begin transmitting audio and meeting assistive listening requirements.

Ideal for small or medium-sized venues with a capacity of up to 50 seats, the LS-91 offers a convenient way to add secure assistive listening capabilities to boardrooms, courtrooms, theaters, educational spaces, and more. Each system includes one LT-84 transmitter/radiator combo, two LR-4200-IR iDSP receivers, two LA-430 intelligent ear phone/neck loop lanyards, two LA-401 universal ear speakers, one LA-422 USB to micro USB cable, and one LA-381-01 intelligent 12-unit charging tray. Packaged together, the LS-91 gives businesses and venues a convenient way to meet assistive listening requirements while providing high-quality audio performance.

Features
  • Pre-configured infrared system comes with everything needed to begin offering secure, high-quality assistive listening in a venue
  • Provides outstanding coverage up to 2,787 m² (30,000 ft²) for single-channel transmission
  • Ideal for small or medium-sized venues with up to 50 seats
  • Includes a transmitter/radiator combo, iDSP receivers, and a 12-unit charging tray
  • Provides clear audio performance for listeners
  • Integrated neck loops/lanyards provide compatibility with T-coil-equipped devices
  • Designed for single-channel applications

Specifications
Intended Venue Size Small to medium venues, up to 50 seats
Wireless Technology Infrared audio transmission
Audio Channels Up to 2 audio channels
Carrier Frequencies 2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz
Maximum Coverage Area Up to 30,000 sq. ft. (2,787 m²), single-channel line-of-sight
Frequency Response 63 Hz-15 kHz (±3 dB)
Signal-to-Noise Ratio 60 dB or better
Total Harmonic Distortion Less than 2%
Audio Inputs 3.5 mm microphone, balanced Phoenix-type, unbalanced RCA per channel
Audio Processing Limiting, compression, noise gate
Transmitter 1 x LT-84-01 ListenIR Transmitter/Radiator Combo
Receivers 2 x LR-4200-IR Intelligent iDSP IR Receivers
Neck Loop Accessories 2 x LA-430 Intelligent Earphone/Neck Loop Lanyards
Ear Speakers 2 x LA-401 Universal Ear Speakers
Charging Tray 1 x LA-381-01 Intelligent 12-Unit Charging Tray
Included Cable 1 x LA-422 USB-to-Micro USB Cable
Hearing Aid Compatibility T-coil compatible via integrated neck loop
Receiver Battery Rechargeable, replaceable lithium-ion
Receiver Battery Life Up to 8 hours per full charge
Receiver Charging Time 2.5 hours or less when fully depleted
Expansion Capability Supports up to 4 expansion radiators, subject to system configuration
Primary Applications Boardrooms, courtrooms, theaters, classrooms, educational facilities
Accessibility Application Assistive listening for people with hearing loss

DOCUMENTS

In The Box
  • (1) LT-84-01 ListenIR Transmitter/Radiator Combo
  • (2) LR-4200-IR Intelligent DSP IR Receivers
  • (2) LA-430 Intelligent Ear Phones/Neck Loop Lanyards
  • (2) LA-401 Universal Ear Speakers
  • (1) LA-422 USB to Micro USB Cable
  • (1) LA-381-01 Intelligent 12-Unit Charging Tray
  • (1) LA-303 Multi-Lingual Assistive Listening Notification Sign
