Listen Technologies LT-800 216 MHz Transmitter with 19 Wide Band and 38 Narrow Band Channels
The Listen Technologies LT-800 offers outstanding audio clarity, digital signal strength, and 57 selectable channels, making it a perfect RF transmitter choice for a wide range of applications.
Connected to your main audio system, the LT-800 broadcasts strong, reliable audio to both belt pack receivers and stationary receivers, ideal for providing listeners with the best possible assistive listening experience. The end result – your audience can hear and understand the presentation better because of improved speaker placement or because they have their own belt pack and headset.
The LT-800 features Look and Listen LCD display for quick channel, programming, and channel lock status information, while balanced and unbalanced inputs allow you to connect with a variety of audio sources. It also features a built-in auto processor that optimizes audio (voice or music) prior to transmission. The VU level meter and test tone allow for simple installation and set up.
| RF | |
|---|---|
| RF Frequency Range (216 MHz) | 216.025 - 216.975 MHz |
| Number of Channels (216 MHz) | 57 (19 wide, 38 narrow) |
| Frequency Accuracy (72 MHz / 216 MHz) | +/- .005% stability 0 to 50C |
| Transmitter Stability (72 MHz / 216 MHz) | 50 PPM |
| Output Power (216 MHz) | 100mW (Max allowed by FCC) |
| Antenna Cable (72 MHz / 216 MHz) | RF-58 or RG-8 coaxial cable |
| Antenna Connector (216 MHz) | BNC |
| Audio | |
| System Frequency Response (216 MHz) | 50 Hz - 10 kHz (± 3dB) |
| System Signal to Noise Ratio (A-weighted) (216 MHz) | SQ enabled: 80 dB; SQ disabled 50 dB |
| System Distortion (216 MHz) | |
| Audio Input 1 (72 MHz / 216 MHz) | Rear panel. Female-XLR and 1/4 in combo connector, balanced,0/-55 dBu nominal input level adjustable |
| Audio Input 2 (72 MHz / 216 MHz) | Rear panel. (2) Phono connectors, unbalanced, -10/+10 dBu nominal input level adjustable, +30 dBu max |
| Controls | |
| Front Panel | Power, Test Tone on/off, Channel up/down, Input Level, Mix Level, Contour, Headset Level |
| Rear Panel | Input 1 Level (Line, Mic, Mic-Phantom Power), Input 2 Level (-10/+10 dBu), RF Power (low, mid, high) |
| Internal Adjustments | Compression ratio for audio processor |
| Programming | SQ on/off, Processing on/off |
| Indicators | |
| Input 1 and Input 2, Mix VU | 8 Green, 2 Red |
| SQ and Processing | Indicated by a green LED when on |
| RF Power | Indicated on the LCD Display |
| Power | Red LED illuminates when the unit is powered up |
| LCD Display | Channel designation, lock status, RF Power Level, programming |
| Test Tone | Red LED illuminates when test tone enabled |
| Physical | |
| Dimensions (H x W x D) | 1.75" (45 mm) x 8.50" (216 mm) x 9.12" (232 mm) |
| Unit Weight | 3 lbs (1.4 kg) |

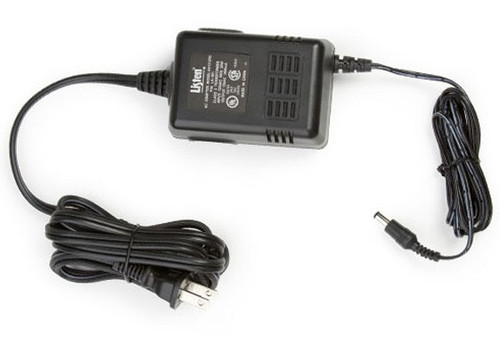

| Unit Weight (with LA-201 Power Supply) | 4.4 lbs (2 kg) |
| Shipping Weight | 6 lbs (2.72 kg) |
