Part # LT-84-01

Model # LT-84-01

The new LT-84 ListenIR 2-Channel Transmitter-Radiator is the only product of its kind that provides complete coverage in a wide variety of venue spaces.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

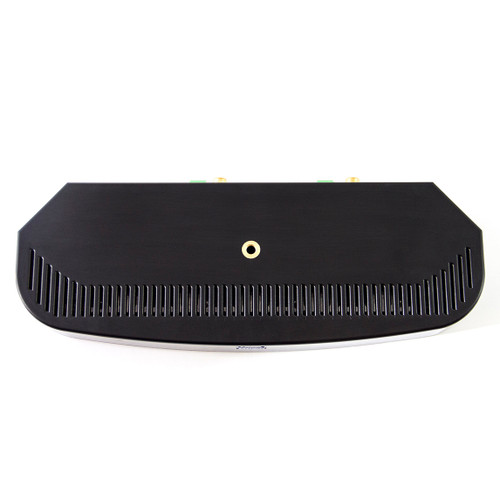

The new LT-84 ListenIR 2-Channel Transmitter-Radiator is the only product of its kind that provides complete coverage in a wide variety of venue spaces. This advanced IR product is simple to use, cost-effective, designed to blend in to any environment, and offers twice the amount of IR power of similar products, and up to six times the coverage area.

A single unit provides up to 2,787 m² (30,000 ft²) coverage area with LR-4200-IR/LR-5200-IR receivers or 697 m² (7,500 ft²) with LR-42/LR-44 receivers in single channel mode, ensuring that the entire room has coverage without gaps or null spots.

The LT-84 is the first IR system with Expansion Radiators (LA-141) that implement delay compensation—no signal cancellation drop outs.

It is the only two channel Transmitter-Radiator with up to four frequencies; 2.3 MHz, 2.8 MHz, 3.3 MHz, or 3.8 MHz, providing flexibility in the field and eliminating the need to purchase a specific frequency based transmitter-radiator.

In addition four (4) Expansion Radiators (LA-141) can be added for additional coverage, when mounted within 30.48 m (100 ft.) cable length from the LT-84.

A single CAT-5e cable carries both power and signal to the LA-141 Expansion Radiators making it a true one-cable connection.

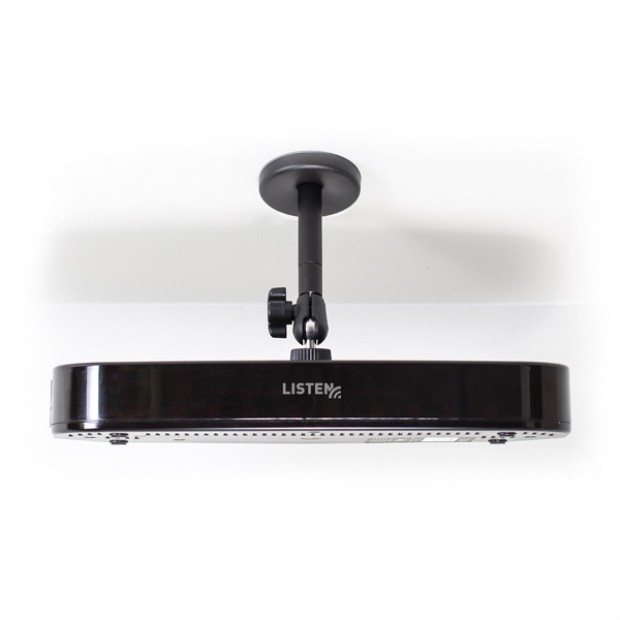

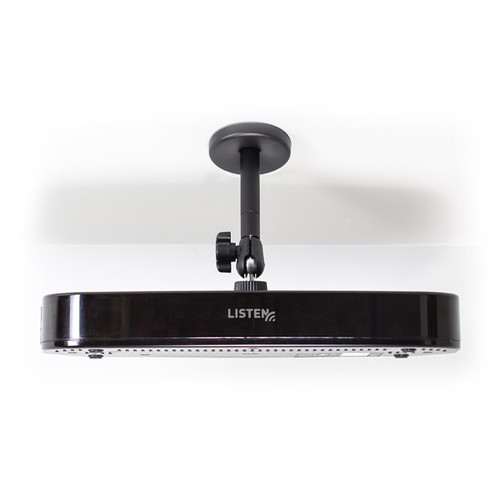

Easy installation includes mounting hardware for wall, ceiling, or table mounting and a multi-lingual legislative compliance sign. Flexible frequency selection and input connectivity minimizes on-site installation hassles.

Features

Features

The best, most cost-effective solution for secure assistive listening in smaller spaces such as; classrooms, courtrooms, corporate meeting rooms, and theaters
The only product of its kind that provides complete, gap-less coverage in small-to-medium spaces
This advanced IR product is simple to use, cost-effective, designed to blend in to any environment, and offers more coverage than similar products
The LT-84 with one channel covers up to 2,787 m² (30,000 ft²) with LR-4200-IR/LR-5200-IR receivers or 697 m² (7,500 ft²) with LR-42/LR-44 receivers
Add up to (4) four expansion radiators (LA-141) for additional coverage, when mounted within 30.48 m (100 ft.) cable length from the LT-84
Flexible frequency selection of 2.3, 2.8, 3.3, 3.8 MHz in a single unit
True one-cable connection via single CAT-5e cable which carries both power and signal to the LA-141 expansion radiators

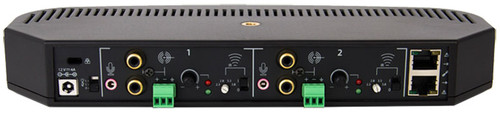

Flexible input connectivity of Mic, RCA stereo sum, and Phoenix line level summed on each input channel simplifies installation

Specification

Audio
Frequency Response	20 Hz - 20 kHz (+/- 1 dB) Line Input63 Hz - 15 kHz (+/- 3 dB) System Specification (Wireless End-to-End with LR-44)
Signal-to-Noise Ratio	> 70 dB (SNR) Line Input> 60 dB (SNR) System Specification (Wireless End-to-End with LR-44)
Microphone Input	Two (2) 3.5 mm (0.14 in.) Tip/Sleeve Connector, -30 dBu Nominal Input, +14 dB Headroom, Impedance 4.4k Ohms, 5 VDC Bias Supply
Total Harmonic Distortion	< 0.1% (THD) Line Input< 2% (THD) System Specification (Wireless End-to-End with LR-44)
Unbalanced Line Input	Stereo/Mono Input. Two (2) Dual (RCA) Phono connectors, Unbalanced, -10 dBu Nominal Input, +14 dB Headroom, Impedance 10k Ohms
Balanced Line Input	Mono Input. Two (2) Phoenix Type Connector, Balanced, + 4 dBunominal Input, +14 dB Headroom, Impedance 100k Ohms
Controls
Power Switch	Three (3) Position Switch - Power OFF, Power ON-Indicator Lights OFF, Power ON-Indicator Lights ON
Carrier Frequency Selection	Two (2), Four (4) Position Rotary Switches (2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz)
Level Control Knob	Two (2) Audio Taper Rotary Potentiometer, Counter-clockwise Decreases Input Mix Level, Clockwise Increases Input Mix Level
Indicators
Power Supply LED	Green LED on In-Line Power Supply Indicates AC Power is Applied
Audio Level Indicators	Two (2) Green LEDs, Two (2) Red LEDs, Green LED indicates Audio Presence and Red LED Indicates Peaks in the Audio
RJ-45 Amber LED	Solid Amber Indicates Carrier is Present and IR is Being Transmitted
RJ-45 Green LED	Solid Green Indicates Power is Applied to Unit, Flashing Indicates Unit has Entered Power Save Mode
RF
Carrier Frequencies	2.3 MHz, 2.8 MHz, 3.3 MHz, 3.8 MHz, Selectable
Number of Channels	Two (2) Channels, Selectable Carrier Frequency
Frequency Accuracy	+/- .005% Stability 0 to 50 °C
Transmitter Stability	50 PPM
Modulation	FM Wideband, ±50kHz Deviation Max, 50 ?S Pre-Emphasis
Power Save Mode	Carrier Will Shut Off When No Audio is Present For 15 Minutes on Both Channels to Preserve Radiator Life
Expansion Link Output	Two (2) RJ-45 Connectors - Provides RF Signal and Power, CAT-5e cable 24 AWG, 100 ft. Maximum Cable Length, two (2) LA-141s Per Output Connector
IR
Coverage Area	2,787 m² (30,000 ft²) Single Channel with LR-4200-IR/LR-5200-IR Receivers or 697 m² (7,500 ft²) Single Channel with LR-42/LR-44 Receivers
IR Emitter Power	1.49 W
Power
Power Supply Input	100-240 VAC, 50-60 Hz
Power Supply Output	12 VDC, 4 A, 48 W
Power Supply Connector	2.5 mm ID Barrel Connector, Center Positive
Power Output	Two (2) RJ-45 Connectors. Providing Power and RF Signal for Up to Two (2) LA-141 Expansion Radiators on Each Output
Power Supply Type	In-Line Switching Mode Power Supply, Listen Part Number LA-210
Power Supply Line Cord	IEC Line Cord, North America Type B (LT-84-01), Asia and UK Type G (LT-84-02), Euro Type C (LT-84-03), Australia Type I (LT-84-04)
Environmental
Temperature - Operation	14 °F (-10 °C) to +104 °F (40 °C)
Temperature - Storage	-4 °F (-20 °C) to +122 °F (50 °C)
Relative Humidity	0 to 95% Relative Humidity, Non-Condensing
Compliance
Standards	FCC part 15, ICS-03, CE, UL, CUL, C-Tick, CCC, PSE, KC, GS, RoHS, WEEE
Power Supply Compliance Marks	CUL, UL, CE, CCC, C-Tick, KC, PSE, GS, FCC, RoHS
Physical
Color	Black with White Silk Screening
Mounting	Can be Mounted on A Wall, Ceiling, or Table with Provided Hardware (Screws and Hollow Wall Anchors Not Provided). Optional LA-347 Wall Box Mounting Plate is Available for Mounting to a Standard Single Gang Electrical Box.
Dimensions (H x W x D)	1.5" (3.81 mm) x 10.7" (27.2 mm) x 4.1" (10.5 mm)
Unit Weight	0.8 lbs (0.4 kg)
Unit Weight with Power Supply	1.8 lbs (0.8 kg)
Shipping Weight)	3.4 lbs (1.54 kg)
