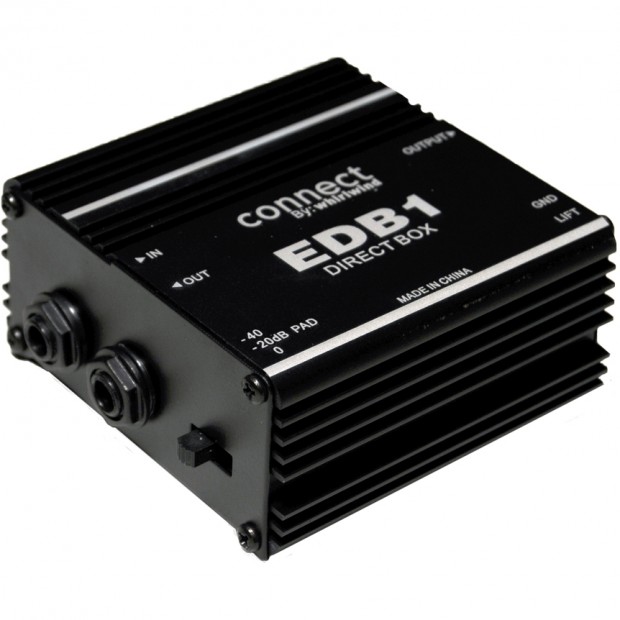

The EDB1 is an imported economy direct box offering rugged construction while maintaining exceptional sound quality. For input of the signal from the source, the source may be the output of any type of musical instrument or amplifier speaker output. A male XLR provides a balanced low impedance (150 Ohms) signal for connection to balanced, low-Z equipment (mixing console, workstation, etc.)

Most instruments will operate properly when set to the 0 position. It can also be set to the 20dB position for use with very "hot" instrument signals or to -40 or when connecting to the speaker output of an amplifier. It disconnects the ground between the input and the XLR output when set to the LIFT position to help eliminate hum. The ground remains connected when set to the GND position.

• 1/4" In and Through jacks
• XLR output
• Pad switch for connection to "hot" signal sources
• Ground Lift switch to help isolate hum and buzz
• Metal construction and quality transformer
