Electro-Voice EVF-1122D/66-WHT Premium 12" 2-Way 2400W Arrayable Point-Source Loudspeaker with 60° x 60° Coverage - White

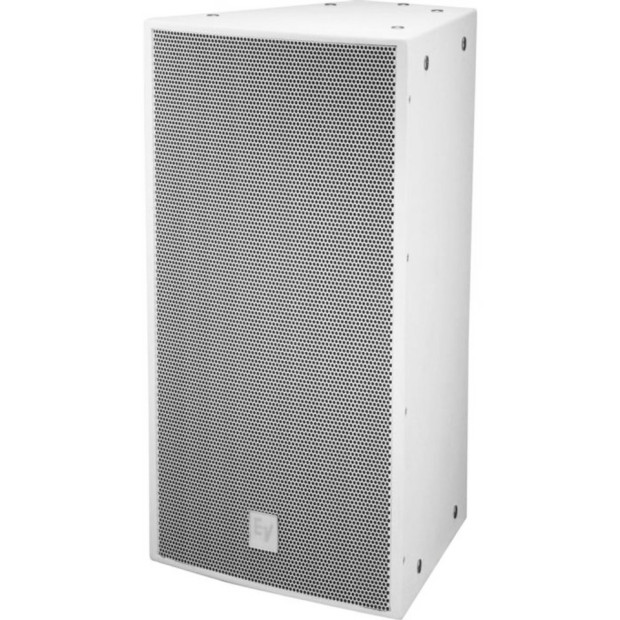

Electro-Voice EVF-1122D/66-WHT Premium 12-Inch 2-Way Point-Source Loudspeaker

The EVF-1122D/66-WHT is a high-power, 12-inch, two-way point-source loudspeaker engineered for premium sound reinforcement in fixed installations. Its clean white, weather-resistant birch enclosure is coated with durable EVCoat, offering both performance and protection for indoor or partially exposed environments. With a continuous power rating of 600W (2400W peak) and a maximum SPL of 131 dB, it delivers exceptional clarity and headroom for demanding venues such as houses of worship, theaters, and performance halls.

At its core, the EVF-1122D/66-WHT features a DH7N 3-inch titanium compression driver coupled to a rotatable 60° x 60° constant directivity waveguide for precise coverage and uniform sound dispersion. A DVX3121A 12-inch woofer, optimized through FEA technology, ensures low distortion, high efficiency, and smooth frequency response across the vocal and mid-range spectrum. The advanced crossover network employs steep 24 dB/octave slopes and HF protection for reliable, long-term operation.

Designed for installation flexibility, this loudspeaker supports vertical or horizontal array configurations, compatible with the entire EVF and EVH series. It includes both Phoenix-style connectors and provisions for optional NL4 or gland-nut plates for weatherized use. The white finish enhances its discreet appearance in professional installations, while optional 70V/100V transformer kits expand system versatility.

• 12" arrayable two-way point-source loudspeaker
• 60° x 60° rotatable constant directivity waveguide
• 97 dB sensitivity, 131 dB maximum SPL
• 600W continuous/2400W peak power handling
• Weather-resistant white birch enclosure with EVCoat finish
• Compatible with EVF/EVH series for flexible array configurations
• Passive/active operation selectable via external jumper
• Optional 70V/100V transformer kit for distributed audio systems
