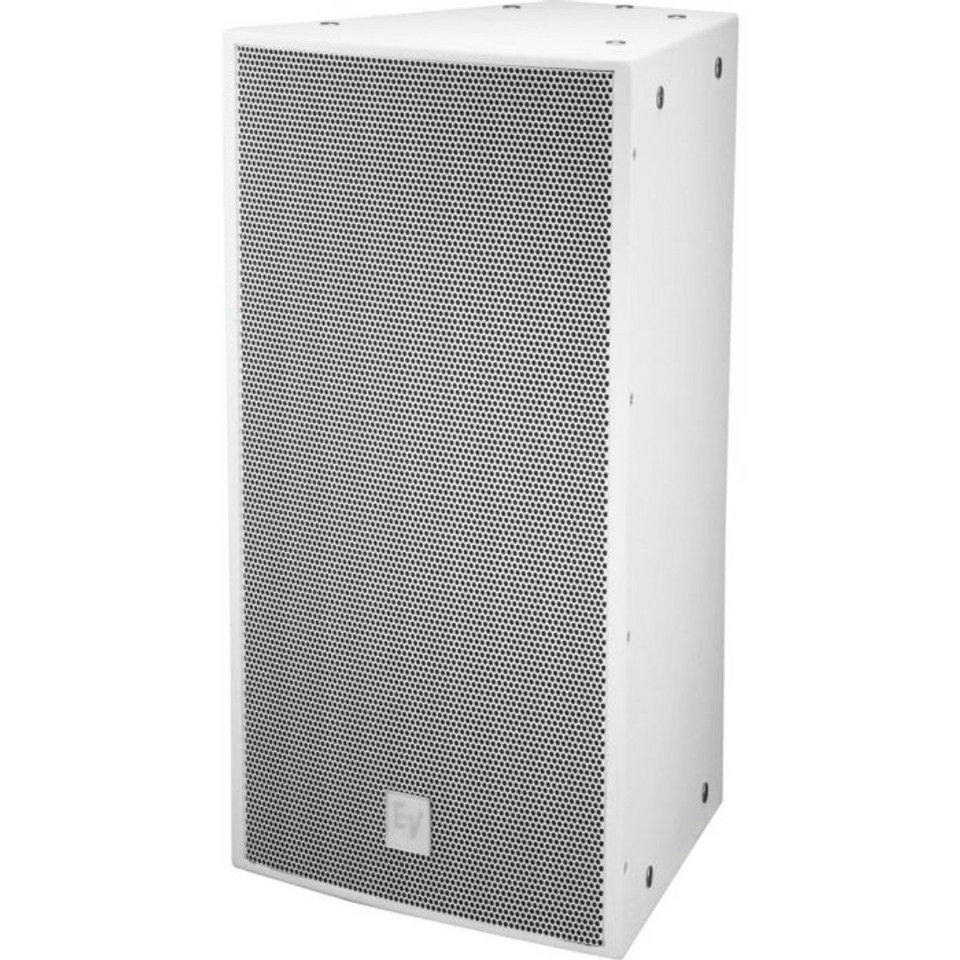

Electro-Voice EVF-1122D/96-WHT Premium 12" 2-Way 2400W Arrayable Point-Source Loudspeaker with 90° x 60° Coverage - White

Electro-Voice EVF-1122D/96-WHT Premium 12-Inch 2-Way Point-Source Loudspeaker

The EVF-1122D/96-WHT is a premium white 12-inch, two-way arrayable point-source loudspeaker engineered for superior sound reinforcement in permanent installations. With 2,400 watts of peak power, 600 watts of continuous power, and a sensitivity of 97 dB, this compact yet powerful system delivers exceptional clarity, projection, and full-range performance. Its rotatable 90° x 60° constant directivity waveguide ensures consistent coverage and precise sound dispersion, making it ideal for venues that demand both flexibility and accuracy, such as houses of worship, theaters, arenas, and performance spaces.

At the core of the EVF-1122D/96-WHT is the DH7N 3-inch titanium compression driver paired with the DVX3121A 12-inch woofer, both optimized using FEA modeling for reduced distortion and enhanced efficiency. The 24 dB/octave crossover features tailored equalization for smooth response and balanced off-axis performance, while an integrated HF protection circuit ensures long-term reliability even at high output levels. The externally accessible passive/active jumper allows for easy system configuration, and an optional 70V/100V transformer kit enables use in distributed audio systems.

Built to last, this loudspeaker features a clean white EVCoat finish over a weather-resistant birch plywood trapezoidal enclosure, designed to withstand demanding environments while maintaining a professional appearance. Its intelligent rigging design supports vertical and horizontal array configurations with other EVF and EVH series loudspeakers, offering maximum system design flexibility. Available in partially-weatherized (PI) and fully-weatherized (FG) versions with stainless-steel grilles and gland nut connections, the EVF-1122D/96-WHT combines premium Electro-Voice engineering, durable construction, and a sleek white finish to deliver outstanding performance for any fixed-install sound application.

• Premium white 12" 2-way arrayable point-source loudspeaker
• 2400W peak/600W continuous power handling
• 97 dB sensitivity, 131 dB maximum SPL
• Rotatable 90° x 60° constant directivity waveguide
• High-performance DH7N 3" titanium compression driver
• DVX3121A 12" woofer for high efficiency and low distortion
• Weather-resistant white birch plywood enclosure with EVCoat finish
• Externally selectable passive or active operation
• Optional 70V/100V transformer kit for distributed systems
• Flexible rigging for vertical or horizontal array configurations
• Available in partially-weatherized (PI) and fully-weatherized (FG) versions
