Audio-Technica ATW-2192xb Wireless Headworn Microphone System - Black

Part # ATW-2192XBI

Model # ATW-219xb

The Audio-Technica ATW-2192xb wireless MicroSet omnidirectional condenser headworn microphone system is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship.

Availability:

Qty:

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Audio-Technica's ATW-2192xb with the ATW-R2100b receiver and ATW-T210a body-pack transmitter with BP892xcW MicroSet® omnidirectional condenser headworn microphone is a 10-channel frequency-agile UHF wireless system designed to suit a variety of applications, including MI/live performance, fixed installation, public address, A/V rental houses and places of worship. It offers all the advantages of a high-quality, professional wireless system at an extremely affordable price. Features switchable antenna power. Also, the optional ATW-CHG2 two-bay recharging station provides power to recharge NiMH batteries in two ATW-T220a handheld transmitters and/or ATW-T210a transmitters in any combination.

Offering 10 selectable channels and True Diversity UHF wireless technology, the 2000 Series features automatic frequency scanning. At the touch of a button, this function automatically determines and sets the best available frequency. Any of the 2000 Series’ 10 channels may be used together without any frequency coordination problems or group selection issues. The 2000 Series also incorporates Audio-Technica’s Tone Lock™ squelch plus an easy-to-read LCD information display.

Features

Features

Serious advances in affordable professional wireless
Clear sound quality and rock-solid, dependable performance
Automatic frequency scanning
10 compatible user-switchable channels
Antenna power available for powered antennas & other in-line RF devices
True Diversity operation selects the better signal from the two receiver sections, reducing dropouts
Tone Lock™ tone squelch system fights interference
Rugged metal half-rack receiver with soft-touch controls and LCD display
Balanced XLR and unbalanced 1/4" output jacks enable use with a wide variety of audio gear
Switchable transmitter power output with high and low settings offered
Includes rack-mount kit and detachable UHF antennas
Ground-lift switch helps eliminate audible hum caused by ground loops between the sound system and receiver
ATW-T220a Handheld Microphone/Transmitter features PRO 41 Capsule for maximum feedback rejection and consistent sound
ATW-CHG2 charger available for ATW-T220a & ATW-T210a transmitters

Specification

General
Operating Frequencies (UHF)	Band I: 487.125 to 506.500 MHz
Number of Channels	10 total
Modulation Mode	FM
Maximum Deviation	±40 kHz
Dynamic Range	> 110 dB (A-weighted), typical
Total Harmonic Distortion	< 1% (at 1 kHz, ±20 kHz deviation)
Operating Range	300' (100 m), typical open range environment with no interfering signals.
Operating Temperature Range	5º C to 45º C 41º F to 113º F Battery and LCD performance may be reduced at very low temperatures.
Frequency Response	100 Hz to 15 kHz (+1 dB, -3 dB)
ATW-R2100 Receiver
Receiving System	Dual independent receivers,automatic-switching diversity
Image Rejection	55 dB nominal, 50 dB minimum
Signal-to-noise Ratio	>100 dB at 40 kHz deviation (A-weighted),maximum modulation 40 kHz
Total Harmonic Distortion	<1% (±10 kHz deviation at 1 kHz)
Sensitivity	20 dBμV (S/N 60 dB at 5 kHz deviation,IEC -weighted)
Intermediate Frequency	65.75 MHz, 10.7 MHz
Audio Output (AF Level set at	Unbalanced: 25 mV (at 1kHz, ±5 kHz deviation,100k ohm load) Balanced:12.5 mV
Output Connectors	Unbalanced:1/4" phone jack Balanced:XLRM-type
Power Supply	120V AC 60 Hz, or 12–18V DC, 350 mA,with external supply
Dimensions (H x W x D)	1.73" (44 mm) x 8.27" (210 mm) x 6.39" (162.2 mm)
Weight	2.2 lbs (1 kg)
ATW-T210 Transmitter
RF Power Output	12 mW
Spurious Emissions	Under federal regulations
Input Connections	High impedance, low impedance, bias
Batteries (not Included)	Two 1.5V AA alkaline
Current Consumption	150 mA typical
Battery Life	Approximately 9 hours (depending on batterytype and use pattern)
Dimensions (H x W x D)	3.63" (92.3 mm) x 2.60" (66 mm) x 0.89" (22.5 mm)
Net Weight (without Batteries)	0.17 lbs (80 g)

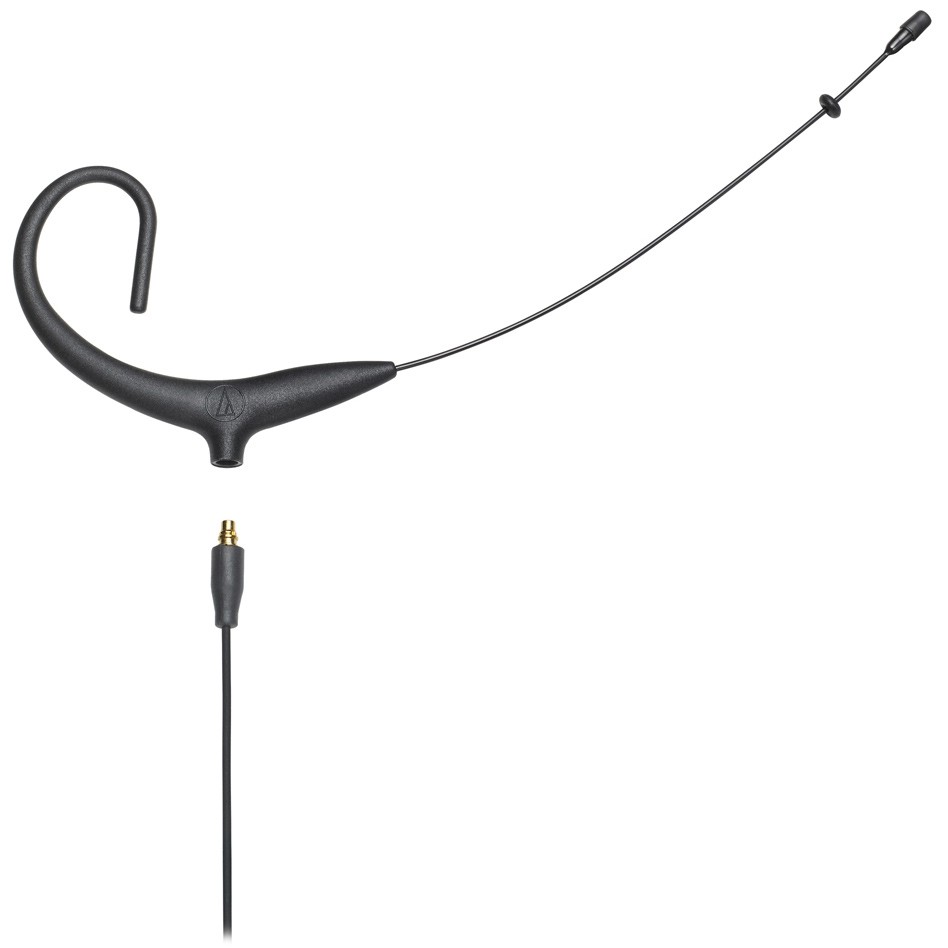

BP892xcW Headworn Microphone
Element	Fixed-charge back plate, permanently polarized condenser
Polar Pattern	Omnidirectional
Frequency Response	20 - 20,000 Hz
Open Circuit Sensitivity	-43 dB (7.2 mV) re 1V at 1 Pa
Maximum Input Sound Level	136 dB SPL, 1 kHz at 3% T.H.D.
Signal-to-Noise Ratio	63 dB, 1 kHz at 1 Pa
Current Consumption	0.2 mA typical at 5V (wireless only)
Voltage Range	2.5-10V (wireless only)
Dimensions (Dia x L)	0.10" (2.6 mm) x 0.37" (9.5 mm)
Weight	0.0057 lbs (2.6 g)
