- Description
Details
Featuring the SM35 headset microphone, QLXD14/SM35 combines professional features with simplified setup and operation.
The QLXD14/SM35 Headworn Wireless Microphone System is part of the QLX-D wireless systems family.
QLX-D® delivers outstanding wireless functionality ideal for mid-size events and installations in businesses, hotels, and government offices with conferencing spaces; schools, houses of worship, and live performance spaces.
- Features
Features
SM35 Performance Headset Condenser Microphone:
- Wireframe headset fits securely and comfortably for active performers and multi-instrumentalists
- Tight, unidirectional cardioid polar pattern rejects signal bleed and feedback for use on loud stages and behind floor monitors
- Flexible gooseneck design allows for optimized placement that further improves source isolation
- Lightweight and low-profile form enables comfortable, long-wearing use
- TA4F (TQG) connector is compatible with any Shure wireless bodypack
- Locking snap-fit windscreens tame plosives, breath, and wind noise for clean and intelligible sound
- Tailored frequency response refined for clear, crisp vocal reproduction
- Included in BLX and GLX-D® wireless systems, renowned for their ease of use and reliable performance
- Legendary Shure precision engineering for durability and performance
QLXD1 Wireless Bodypack Transmitter:
- Over 120 dB of dynamic range: no transmitter gain adjustments needed
- AES 256-bit encryption for secure transmission
- Optional Shure SB900A lithium ion rechargeable battery reports remaining runtime in hours and minutes
- External charging contacts for docked charging
- Backlit LCD with easy to navigate menu and controls
- Selectable display mode showing group/channel, frequency, or battery runtime
- 4-Pin male mini connector (TA4M)
- Rugged metal construction
- Detachable ¼ wave antenna
- Frequency and power lockout

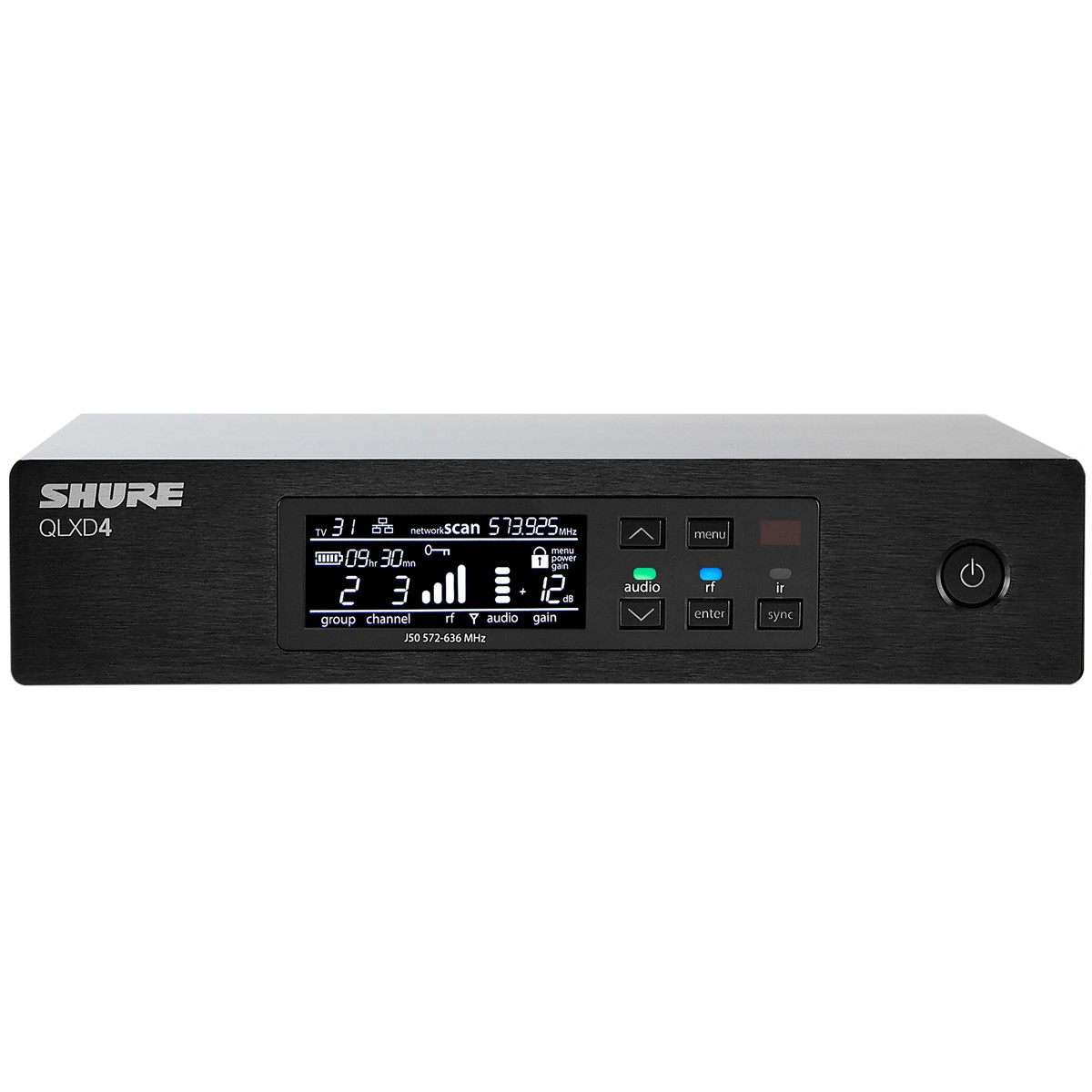

QLXD4 Digital Wireless Receiver:
- 64 MHz tuning bandwidth (region dependent)
- More than 60 preset compatible channels per frequency band (region dependent)
- Up to 17 compatible systems per 6 MHz TV channel; 22 systems per 8 MHz channel
- Digital predictive switching diversity ensures solid RF connection
- AES 256-bit encryption for secure wireless transmission
- Up to 60 dB of adjustable audio gain
- High-contrast LCD menu and controls with lockout feature
- Audio and RF LED meters with peak indicator
- Detachable ½ wave antennas
- Mic / line switchable XLR output
- ¼" Instrument output
- Durable aluminum construction with brushed finish
- Specification
QLX-D System RF Carrier Frequency Range 470–937.5 MHz, Varies by Region Image Rejection >70 dB, Typical Latency <2.9 ms RF Sensitivity -97 dBm at 10-5 BER Working Range 100 m (328 ft.) Line-of-Sight Note: Actual Range Depends on RF Signal Absorption, Reflection and Interference Audio Frequency Range 20 Hz to 20 kHz Note: Dependent on Microphone Type Audio Dynamic Range (System Gain @ +10) >120 dB, A-Weighted, Typical Total Harmonic Distortion < 0.1% (−12 dBFS Input, System Gain @ +10) Polarity Positive Pressure on Microphone Diaphragm Produces Positive Voltage on Pin 3 with Respect to Pin 1 (Ground) Operating Temperature Range -18°C (0°F) to 50°C (122°F)
Note: Battery characteristics may limit this rangeSM35 Headset Microphone Type Electret Condenser Frequency Response 40 Hz to 20,000 Hz Polar Pattern Unidirectional (Cardioid) Output Impedance
@ 1 kHz2400 Ω Audio Output Level -59.0 dBV/Pa Signal-To-Noise Ratio
@ 1 kHz55 dB Maximum SPL
1000 Ω load, @ 1% THD153.0 dB Maximum SPL
1000 Ω load, @ 1% THD153.0 dB Dynamic Range
@ 1 kHz, 1000 Ω load114.0 dB Equivalent Output Noise
Typical, A-Weighted39 dB Power Requirements +5 V DC (Nominal), 10 V Maximum (DC Bias) Polarity Positive Pressure on Diaphragm Produces Positive Voltage on Pin 3 with Respect to Pin 1 Connector TA4F Cable 45" (1100 mm) Net Weight 0.158 lbs (0.072 kg) QLXD4 Digital Wireless Receiver Power Requirements 12V DC @ 0.4 A, Supplied By External Power Supply (Tip Positive) Housing Steel RF Input Spurious Rejection >80 dB, Typical Connector Type BNC Impedance 50 Ω Audio Output Gain Adjustment Range -18 to +42 dB in 1 dB Steps Configuration 1/4 Impedance Balanced (Tip=Audio, Ring=No Audio, Sleeve=Ground) Configuration XLR Balanced (1=Ground, 2=Audio+, 3=Audio−) Impedance 1/4" (6.35 mm): 100 Ω (50 Ω Unbalanced)XLR: 100 Ω Full Scale Output 1/4" (6.35 mm): +12 dBVXLR: LINE Setting= +18 dBV, MIC Setting=−12 dBV Mic/Line Switch 30 dB Pad Phantom Power Protection 1/4" (6.35 mm): YesXLR: Yes Networking Network Interface Single Port Ethernet 10/100 Mbps Network Addressing Capability DHCP or Manual IP Address Maximum Ethernet Cable Length 100 m (328 ft) Dimensions (H x W x D) 1.63" (41 mm) x 7.75" (197 mm) x 5.94" (151 mm) Weight 1.71 lbs (0.78 kg) Without Antennas QLXD1 Wireless Bodypack Transmitter Mic Offset Range 0 to 21 dB (in 3 dB Steps) Battery Type Shure SB900 Rechargeable Li-Ion or AA Batteries 1.5 V Battery Runtime @ 10 mW
Shure SB900 - Up to10 Hours
Alkaline - Up to 9 HoursHousing Cast Aluminum Audio Input Connector 4-Pin Male Mini Connector (TA4M) Configuration Unbalanced Impedance 1 MΩ Maximum Input Level 1 kHz at 1% THD 8.5 dBV (7.5 Vpp) Preamplifier Equivalent Input Noise (EIN) System Gain Setting ≥ +20 -120 dBV, A-Weighted, Typical RF Output Connector SMA Antenna Type 1/4 Wave Impedance 50 Ω Occupied Bandwidth <200 kHz Modulation Type Shure Proprietary Digital Power 1 mW or 10 mW Dimensions (H x W x D) 3.38" (86 mm) x 2.57" (65 mm) x 0.92" (23 mm) Weight 0.306 lbs (0.138 kg) - Documents
- In The Box
In The Box
- (1) SM35 Performance Headset Condenser Microphone
- (1) QLXD1 Wireless Bodypack Transmitter
- (1) QLXD4 Digital Wireless Receiver
- (1) Power Supply
- (2) AA Batteries
- (2) 1/2 Wave Antennas
- (2) BNC Cables
- (1) Zipper Bag
- (2) BNC Bulkhead Adapters
- (1) Rackmount Kit
- (1) User Guide
