Shure GLXD14+ Dual Band Instrument System

The GLXD14+ digital dual-band wireless instrument system from Shure delivers professional-grade wireless performance for guitar, bass, and other instrument applications. This system pairs the included WA302 instrument cable with the GLXD4+ tabletop receiver, offering a seamless wireless setup with automatic frequency management and dual-band technology for dependable, interference-free operation.

Equipped with Shure's proprietary Lithium-Ion rechargeable batteries, the system provides up to 12 hours of continuous use, ensuring extended performance without interruptions. Its rugged construction and intuitive design allow musicians to focus on playing while enjoying consistent, high-quality audio.

Setup is simple: just connect your instrument with the WA302 cable, power on the transmitter and receiver, and the system automatically selects the best frequency for interference-free audio. Whether on stage, in rehearsal, or recording, the GLXD14+ combines ease of use, professional sound quality, and long-lasting reliability in one compact system.

Features

Features

Dual Band technology for reliable, interference-free operation
Includes WA302 guitar cable for instant instrument connectivity
GLXD4+ tabletop receiver with intuitive interface
Shure Lithium-Ion rechargeable batteries, up to 12 hours of use
Automatic frequency management for seamless setup
Compact and rugged design for stage or studio use
Ideal for guitar, bass, and other instruments

Specification

GLXD4+
Power Requirements	14.5V - 17V, 600 mA (efficiency level VI power supply)
Antenna Type	Dual-band 1/2 Wave Sleeve Dipole, non-removable
Audio Outputs	XLR balanced (100 Ω), 6.35 mm (1/4") balanced/unbalanced (50 Ω unbalanced) Max Levels: +1 dBV / +8.5 dBV
Gain Adjustment	-20 to 40 dB, 1 dB increments
Phantom Power Protection	Yes
Dimensions (H x W x D)	1.6" (40.3 mm) x 7.2" (182.8 mm) x 4.8" (122 mm) (folded antenna)
Weight	0.68 lbs (0.31 kg)

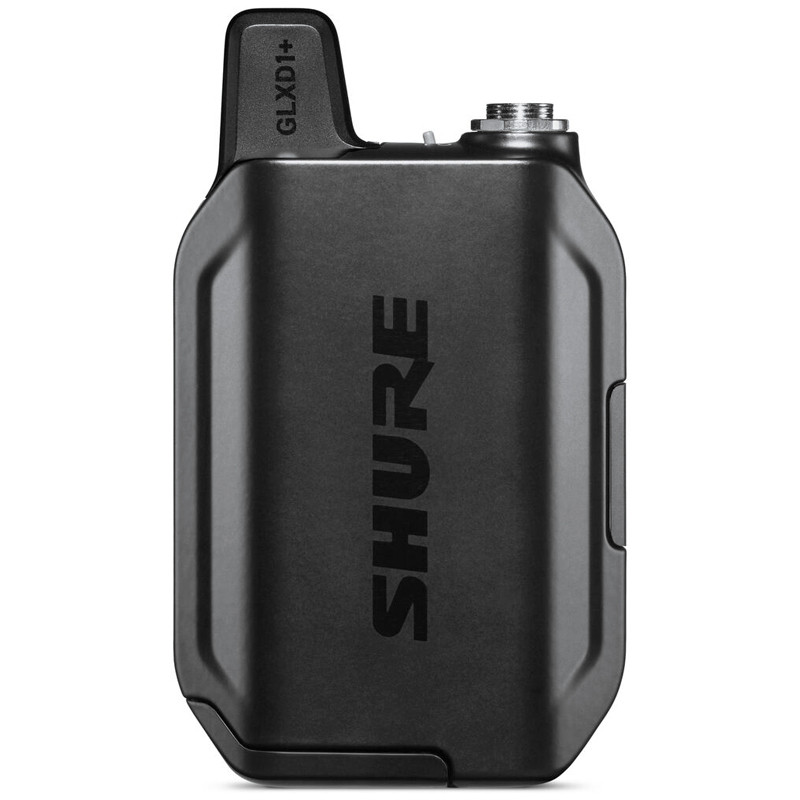

GLXD1+
Power Requirements	Shure Rechargeable Li-Ion Battery, USB Power Supply (US/Canada), SB904, SBC10-USB15WSUSTWJ
Antenna Type	Dual-band Internal Monopole
Housing	Aluminum alloy, ABS plastic
TX Input Connector	4-pin male mini connector (TA4M)
Maximum Input Level	+8.4 dBV (7.5 Vp-p)
Dimensions (H x W x D)	4.5" (115 mm) x 2.6" (66.94 mm) x 1.1" (28.51 mm)
Weight	0.34 lbs (0.15 kg) (without battery)
