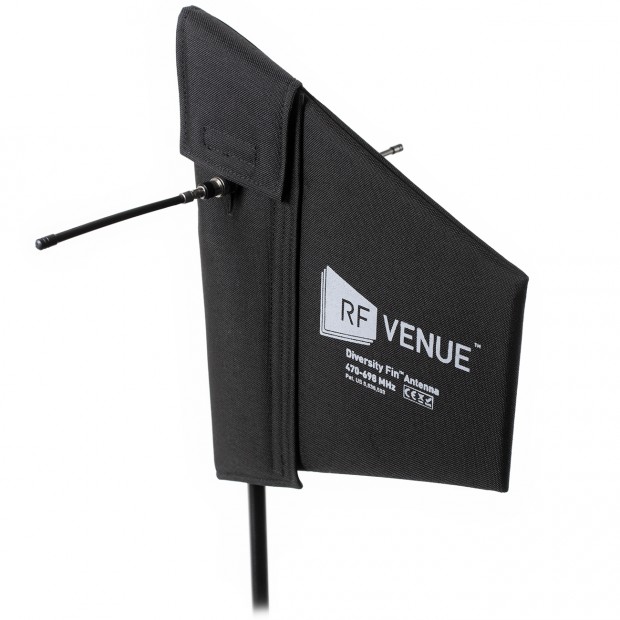

RF Venue Diversity Fin Polarization Diversity Antenna
The Diversity Fin Antenna is a multi-purpose antenna designed to be used with wireless microphone systems and other UHF receivers incorporating dual branch diversity reception, and comprises orthogonal directional LPDA and bi-directional dipole elements in order to eliminate mulit-path fade. One element captures vertically polarized waves, and the other horizontally polarized waves—achieving optimal polarization diversity reception and improving signal constancy in indoor and reflective environments.
Connect two receiver (or antenna distributor) branches to the Diversity Fin via coaxial cables (not supplied).
The Diversity Fin has found widespread adoption across multiple pro audio segments for its performance, convenience, space, and cost benefits. The Diversity Fin has two elements and requires two coax cables (not included).
- Features
Features
- Designed to be used with wireless microphone systems
- Dual branch diversity reception
- Optimal polarization diversity reception
- Improves signal constancy in indoor and reflective environments
- Specification
Electrical Characteristics Operating frequency 468 - 740 MHz Bandwidth 272 MHz Average return loss -9.4 dBm Impedance 50 Ω Pattern type Dual Omni-Unidirectional LPDA Beam width 140º Azimuth F/B Ratio 8 dB F/S Ratio 5 dB Gain 5 dBd Polarization Vertical Dipole Beam width 100º Azimuth F/B Ratio 5 dB F/S Ratio 13 dB Gain 1.8 dBd Polarization Horizontal Physical Characteristics Mounting Block 1/4-20, 3/18-16, 5/8-27 Operating temperature -23 -54C/-10-130F Connector BNC female (2) Dimensions (L x H) 12" (300 mm) x 15" (370 mm) Weight 1 lb (0.45 kg) - Documents
- In The Box
In The Box
- (1) DFIN Diversity Fin Antenna
- (1) DFIN Cover
