- Description
Details

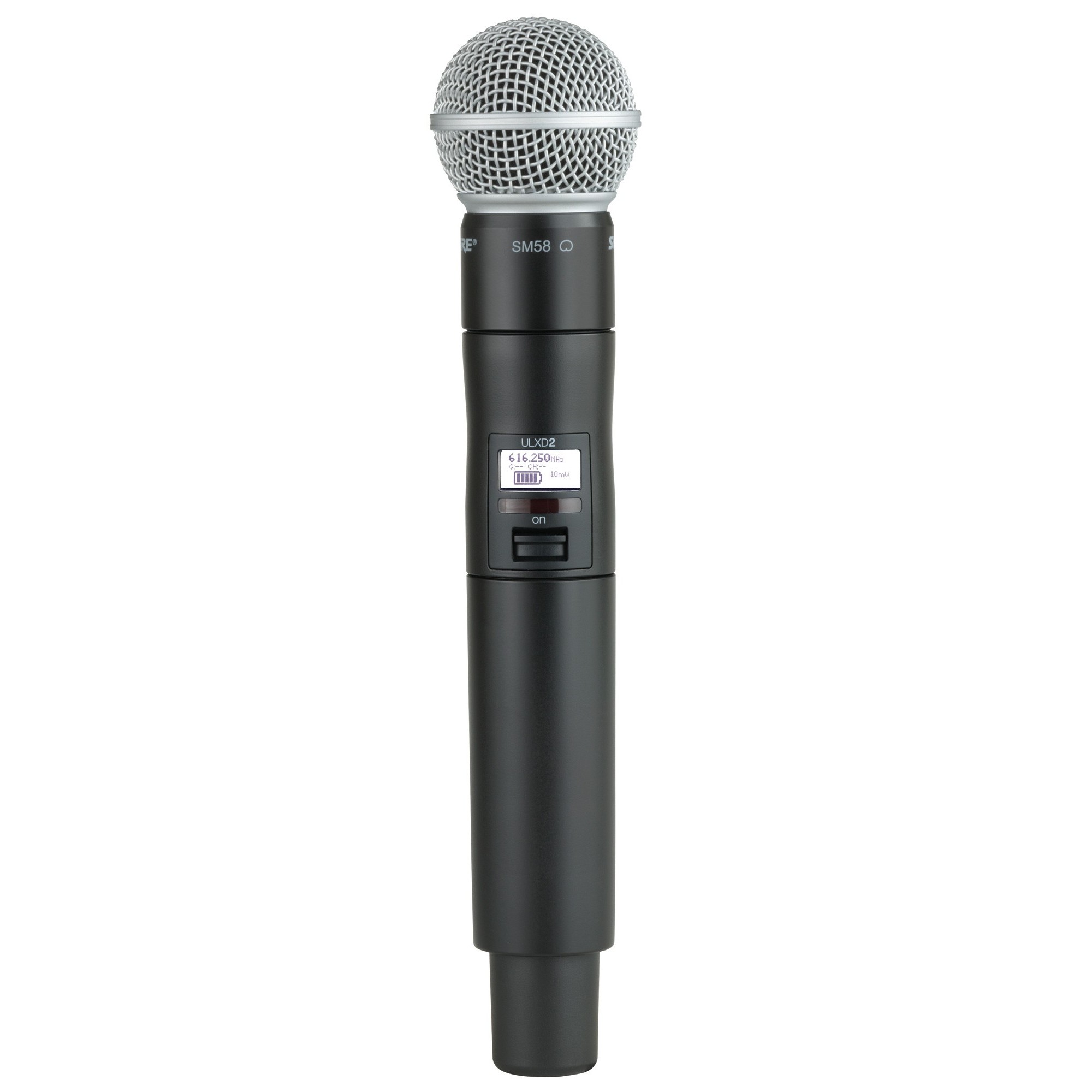

The Shure ULXD2 is a handheld wireless transmitter compatible with ULX-D Digital Wireless Systems. Offering premium 20 Hz – 20 kHz audio quality, advanced rechargeability options, and a wide selection of interchangeable Shure microphone heads, the ULXD2 delivers uncompromising wireless performance for professional sound reinforcement applications.
With an interchangeable SM58 microphone cartridge, the ULXD2/SM58 delivers uncompromising audio quality and RF performance, and AES 256-bit encryption for secure transmission. The ULXD2/SM58 Handheld Wireless Microphone Transmitter works with ULX-D Wireless Systems.
Note: When purchasing separate wireless components, please match their frequency bands to ensure proper system operation.- Features
Features
- Works with ULX-D Wireless Systems
- AES 256-bit encryption for applications for which secure transmission is needed
- Proprietary Shure Gain Ranging optimizes the system’s dynamic range for any input source
- Optional Shure SB900 lithium-ion rechargeable battery pack provides over 12 hours of battery life
- External charging contacts for docked charging (with the SBC200 Dual Docking Charger)
- Transmitter Mute Mode repurposes the On/Off switch into a mute switch
- Backlit LCD with easy to navigate menu and controls
- Rugged metal construction
- Frequency and power lockout
- Includes ULXD2/SM58, 2 AA batteries, microphone clip, zipper bag, and user guide
- Specification
ULXD2 AUDIO INPUT Configuration Unbalanced Maximum Input Level (1 kHz at 1% THD) 145 dB SPL (SM58), typical Preamplifier Equivalent Input Noise (EIN), System Gain Setting = +20 120 dBV, A-weighted, typical RF Output Antenna Type Integrated Single Band Helical Occupied Bandwidth <200 kHz Modulation Type Shure Proprietary Digital Power 1 mW, 10 mW, 20 mW Audio Frequency Response 30 Hz to 20 kHz (±1 dB), flat Dynamic Range >120 dB Operating Range 300 ft (100 m) Gain Offset Range 0 to 21 dB (in 3 dB steps) Battery Type Shure SB900 Rechargeable Li-Ion or AA batteries Battery Runtime @ 10 mW Shure SB900: >12 hours Alkaline: 11 hours Housing Machined aluminum SM58 Type Dynamic (moving coil) Frequency Response 50 to 15,000 Hz Polar Pattern Unidirectional (cardioid), rotationally symmetrical about microphone axis, uniform with frequency Sensitivity (at 1,000 Hz Open Circuit Voltage) -54.5 dBV/Pa (1.85 mV) Impedance Rated impedance is 150 ohms (300 ohms actual) for connection to microphone input rated low impedance Polarity Positive pressure on diaphragm produces positive voltage on pin 2 with respect to pin 3 Connector Three-pin professional audio connector (male XLR type) Case Dark gray, enamel-painted, die cast metal; matte-finished, silver, spherical steel mesh grille Dimensions (H x Diameter) 10.1" (256 mm) x 2.0" (51 mm) Weight (Without Batteries) 0.749 lbs (340 g) - Reviews
