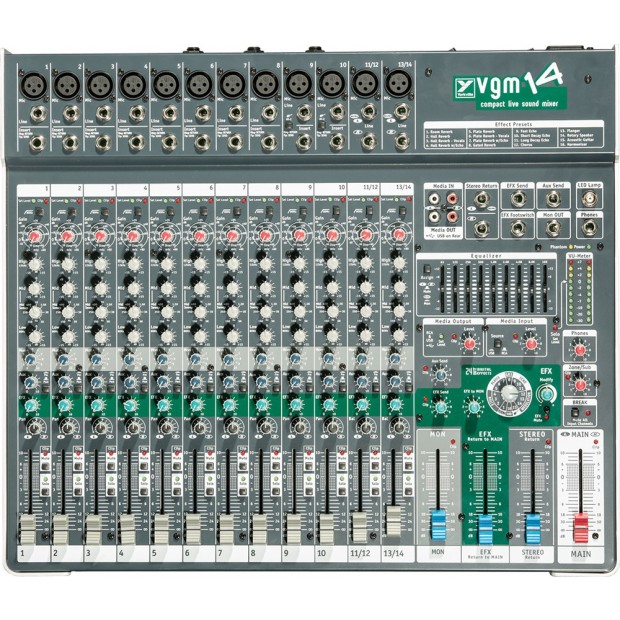

Yorkville VGM14 Compact Live Sound Mixer
The VGM14 delivers the essential features needed in a professional ultra-compact live sound mixer. All metal chassis design, effective fully featured input channel design, high quality 60mm faders throughout, 24-bit digital effects, and break switch make the VGM14 the perfect mixer for live music applications and for small installs. An IEC AC input (no proprietary adaptor or wall-wart required) for ultra reliable mobile operation. USB Audio I/O, additional media inputs, two High Impedance instrument level inputs for acoustic guitars or bass offer maximum connectivity for various audio sources.
- Features
Features
- Ten Mono Input Channels with XLR and ¼-inch TRS inputs
- Channel 9 and 10 Mono Inputs have a Hi-Z input switch
- Two Additional stereo line input channels (11/12 and 13/14)
- Additional XLR mono input per stereo channel for maximum 12 Mic inputs
- Input gain level control with Non-defeatable soft multi-slope compressor on every input
- 3-band EQ with Sweep Mid, High Pass Filter, Monitor, Aux and Effect Send, Clip LED, Mute Switch and Pan control per Channel. 4-band EQ's on Stereo Channels
- 60mm Faders Throughout
- Global 48 volt Phantom Power
- Stereo 9-band graphic EQ Assignable Main/Monitor
- Stereo RCA Media Outputs with Level Control
- BREAK Switch (mutes all input channels)
- Stereo RCA Media Input Jacks with Rotary Level Control (returns pre equalizer, post BREAK switch)
- USB Audio I/O
- Zone/Sub Output with Level Control
- Main stereo TRS phone and XLR outputs
- Sixteen 24-bit digital audio effects
- Effects TRS output jack
- Effects defeat footswitch jack
- Effects return to Main and Monitor
- Stereo Return TRS jacks with fader
- Headphone Level Control
- Dual 10-segment LED Output Meter
- IEC removable line cord receptacle (No Adaptors)
- Universal Power Supply from 90VAC to 264VAC at either 50Hz or 60Hz
- Specification
Number of Channels 14 Channel Inserts 10 Mono Channel EQ 3-Band w/mid Sweep Stereo Channel EQ 4-Band Balance Controls 11/12, 13/14 Pan Controls 1 to 10 Channel Overload Protection Yes Inputs - XLR (bal) 12 Inputs - 1/4-inch 14 Inputs - RCA (unbal) 1 Stereo Pair Solo Switches Yes - All Channels Mute Switches Yes - All Channels Hi Pass Switches Yes - All Channels Activity / Solo LED Yes - All Channels Clip / Mute LED Yes - All Channels Phantom Power 48 volt + LED indicator Internal Effects 24 Bit Stereo / 16 Effects w/Modify Control Auxiliary Sends Yes Effects Send Yes Effects Return Yes Effects Return to Main Yes Effects Return to Monitor Yes Reverb / Effects Footswitch Yes Record Outputs Yes (RCA and USB) Max Gain to Line Out -Mic Input (dB) 80dB Max Gain to Line Out -Line Input (dB) 65dB Mixer - Signal to Noise Ratio (dB) Greater than 100dB Mixer - Freq Response 20Hz - 20kHz (Tone and EQ Flat,±2dB) Mixer - Input Ref Noise to Line Out -118dBv (@ 150 ohms) Mixer THD (Main out w/ -10dB input) Less Than 0.05% Typical crosstalk -1 kHz Less Than -60dB CMRR @ 60Hz (min/typ) 55dB/65dB Power Consumption (typ/max) 26VA (typical) Cooling Fan Transformer Type SMPS Chassis Construction Steel Console Lamp Connector 12V DC (BNC) Yes - 12V DC (BNC) Other Features Zone Output, Hi-Z Inputs (Ch 9 & 10) USB I/O Dimensions (H x W x D) 2.8" (71.12 mm) x 19" (483 mm) x 16" (406.4 mm) Weight 13 lbs (5.9 kg) - Documents
