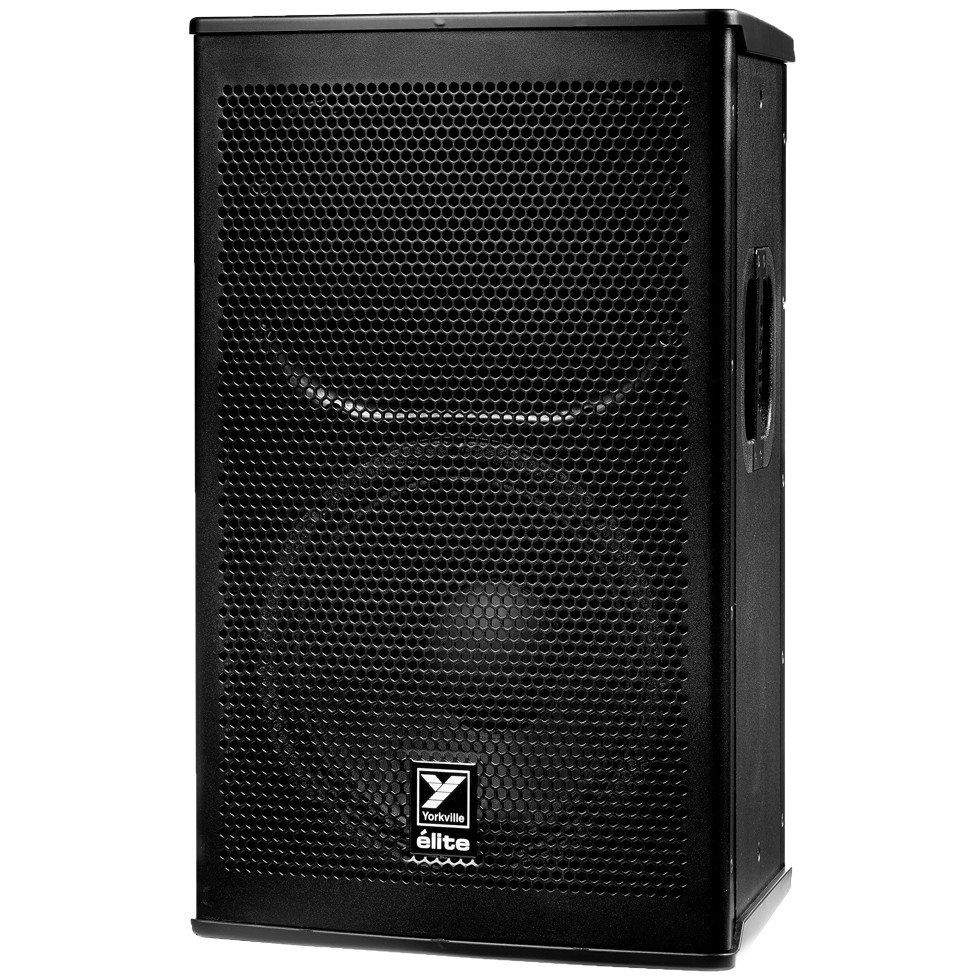

Yorkville Elite EF12P 12" Active Loudspeaker High Output, High Quality
and Extremely Durable Dedicated Front of House BoxIn the 1980's, Yorkville Sound changed the face of high-powered portable speakers with the launch of the élite series. Indestructible wood cabinets with high output drivers offered PA professionals & weekend warriors alike a new level of high SPL speakers in portable packages. 30 years later, and we are changing the rules again.
- Features
Features
- High output, high quality and extremely durable dedicated front of house box
- Completely redesigned next generation elite cabinet
- ABS coated birch plywood cabinet construction
- Multiband DSP limiting with 4 preset playback performance modes
- 3-inch titanium diaphragm compression driver for reduced distortion at high SPL
- 12-inch neodymium woofer with 3-inch voice coil
- iOS and Android app for added cabinet control (coming soon)
- Specification

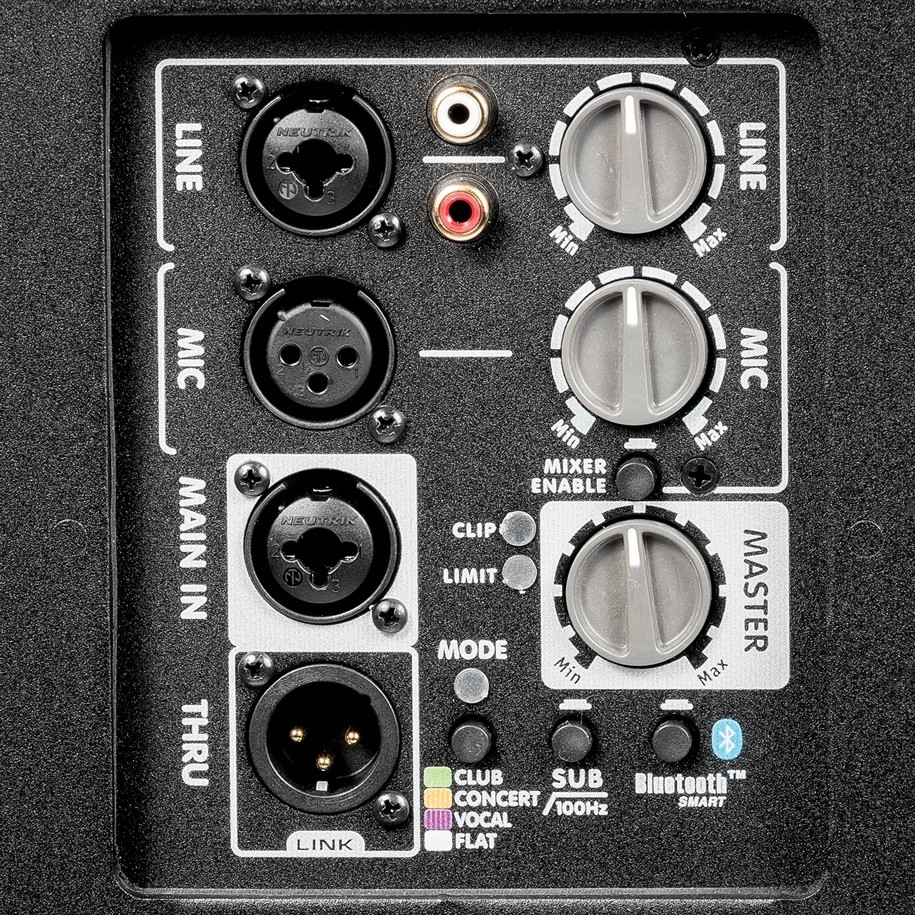

System Type 2-Way Active or Passive Active Program Power (Watts) 1200 Watts (2400 Watts Peak) Max SPL (dB) 131dB Peak (125dB Continuous) Frequency Response (Hz +/- 3dB) 47 - 16k (Hz +/- 3dB) Crossover Frequency (Hz) 1100 Driver Configuration 12-inch, 3-inch Diaphragm HF Driver(s) 3-inch Voice coil (Titanium Diaphragm) HF Dispersion (°H x °V) 60 x 40 LF Driver(s) 12-inch Neo magnet w/3-inch Voice coil HF Power Amplifier (Watts) 300 HF Amplifier Type 3-Tier High Headroom LF Power Amplifier (Watts) 900 LF Amplifier Type Class-D Power Cable 25 ft (7.6m) Heavy Gauge Detachable IEC Current Draw 2A Typical, 3.2A Max In / Out Connections 1 x XLR & 1/4-inch Combi-jack, RCA Line Inputs
1 x XLR microphone Input
1 x XLR & 1/4-inch Combi-jack Main Input
1 x XLR-M ThruputInput Impedance (Bal/UnBal) 95KOhms / 90kOhms Input Sensitivity (Vrms Sine) +4dBv / 1.23V Controls Mixer Enable
Mic Input w/level
Line Input w/level
DSP Mode (Club, Concert, Vocal, Custom)
Sub (100Hz HP Filter)
Bluetooth Control Enable
Master LevelBar Handles 2 x Side / 1 x Top Flypoints 8 x ¼-20 (2 Top, 2 Bottom, 2 Each Side, 2 Pullback) Pole Mount Adapter 1 Bottom (1 3/8-inch / 3.5cm) Enclosure Materials ABS Coated Baltic Birch Plywood Dimensions (H x W x D) 28.2" (716.28 mm) x 18.6" (472.44 mm) x 14.5" (368.3 mm) Weight 59 lbs (26.8 kg) - Documents
