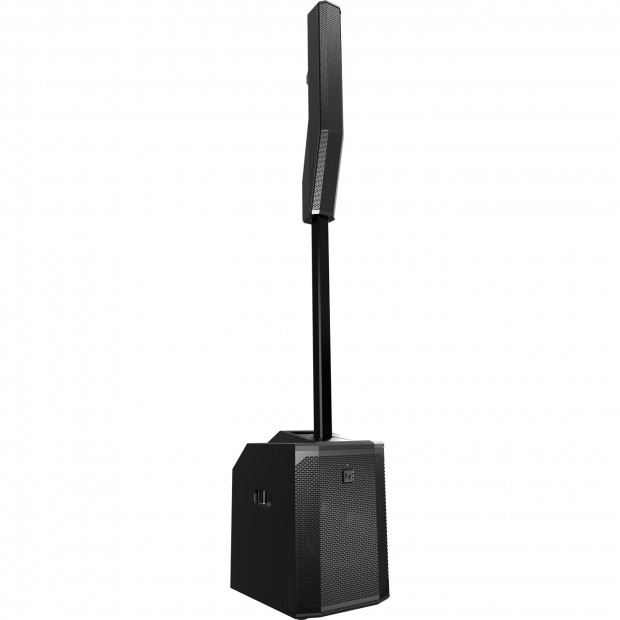

The EVOLVE 50 Portable Column System is a three component loudspeaker system powered by a 1000 W Class-D amplifier and driven by Electro-Voice's QuickSmartDSP.
The system consists of a 15 mm wooden, ported, powered subwoofer enclosure that houses a 12" subwoofer capable of a functional frequency output down to 37 Hz.
The bi-directional aluminum pole’s connection to the subwoofer is secured using a magnet, and the column array is gravity-held to the sub pole. The signal is internally routed to the components.

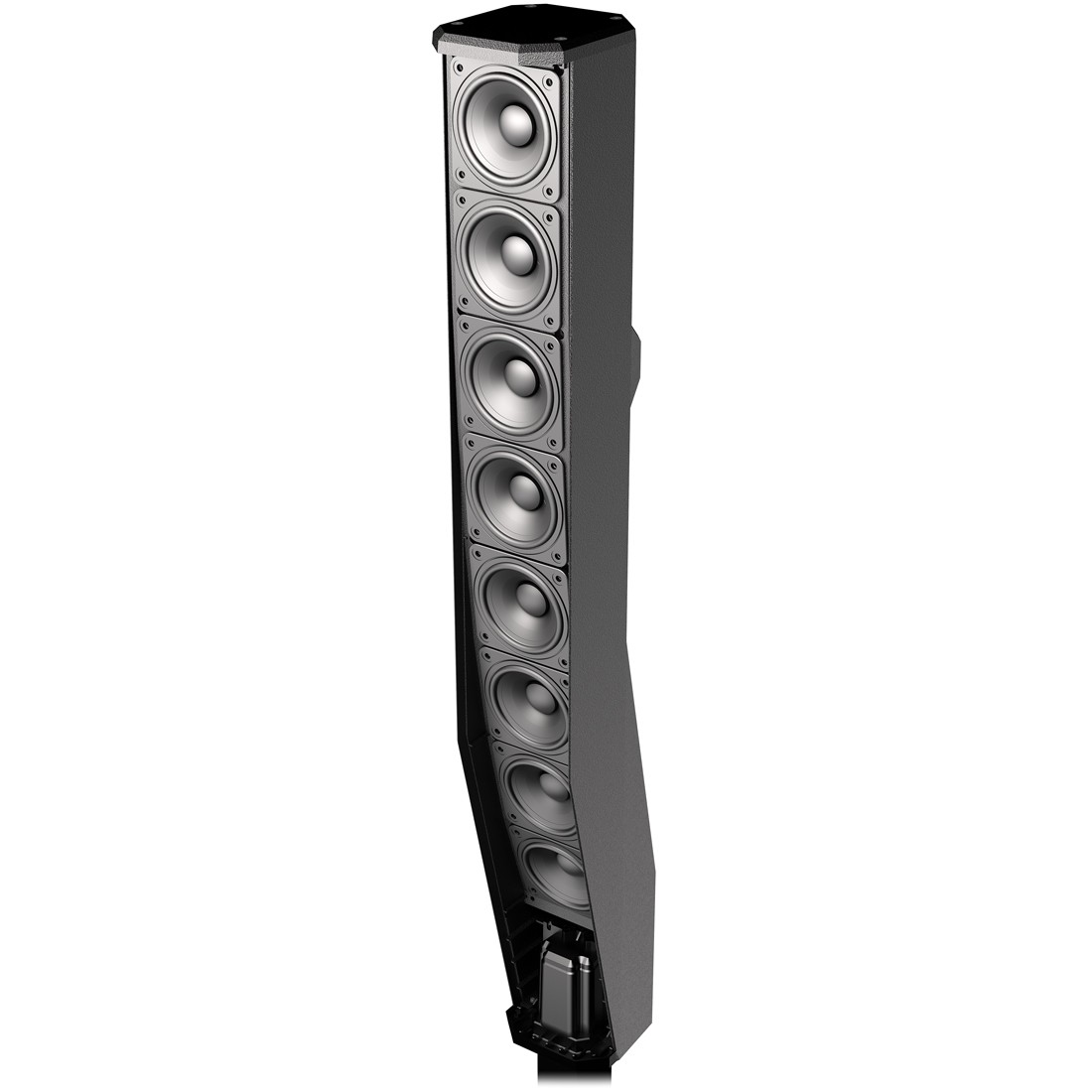

Eight 3.5" neodymium drivers in the column array coupled with the 12" subwoofer delivers up to 127 dB SPL. The eight composite waveguides control high-frequencies with 120° of horizontal coverage, and 40° of asymmetrical (down-facing) vertical coverage to ensure suitable output for sitting and standing audiences. The sub pole and column array come prepackaged in a carrying bag.
The processing engine allows for easy setup via four presets (Music, Live, Speech, and Club), three-band EQ, five user-programmable presets (Store and Recall settings), output delay, phantom power (+15V), visual monitoring of limiter status, input level control and meters, and master volume control to ensure optimal gain structure.
The new Electro-Voice QuickSmart Mobile application utilizes Bluetooth® Low Energy (BTLE) technology for the wireless configuration, control, and monitoring of up to six EVOLVE 50 systems simultaneously. High-resolution Bluetooth® audio streaming adds convenience for wireless music playback in breakout rooms, intermission, and musical accompaniment. Bluetooth® is available in select countries.
- Features
Features
- Clean, compact design — built to blend in
- Lightweight column speaker array with cable‑free connection quickly secures pole to sub.
- Easy transport and setup

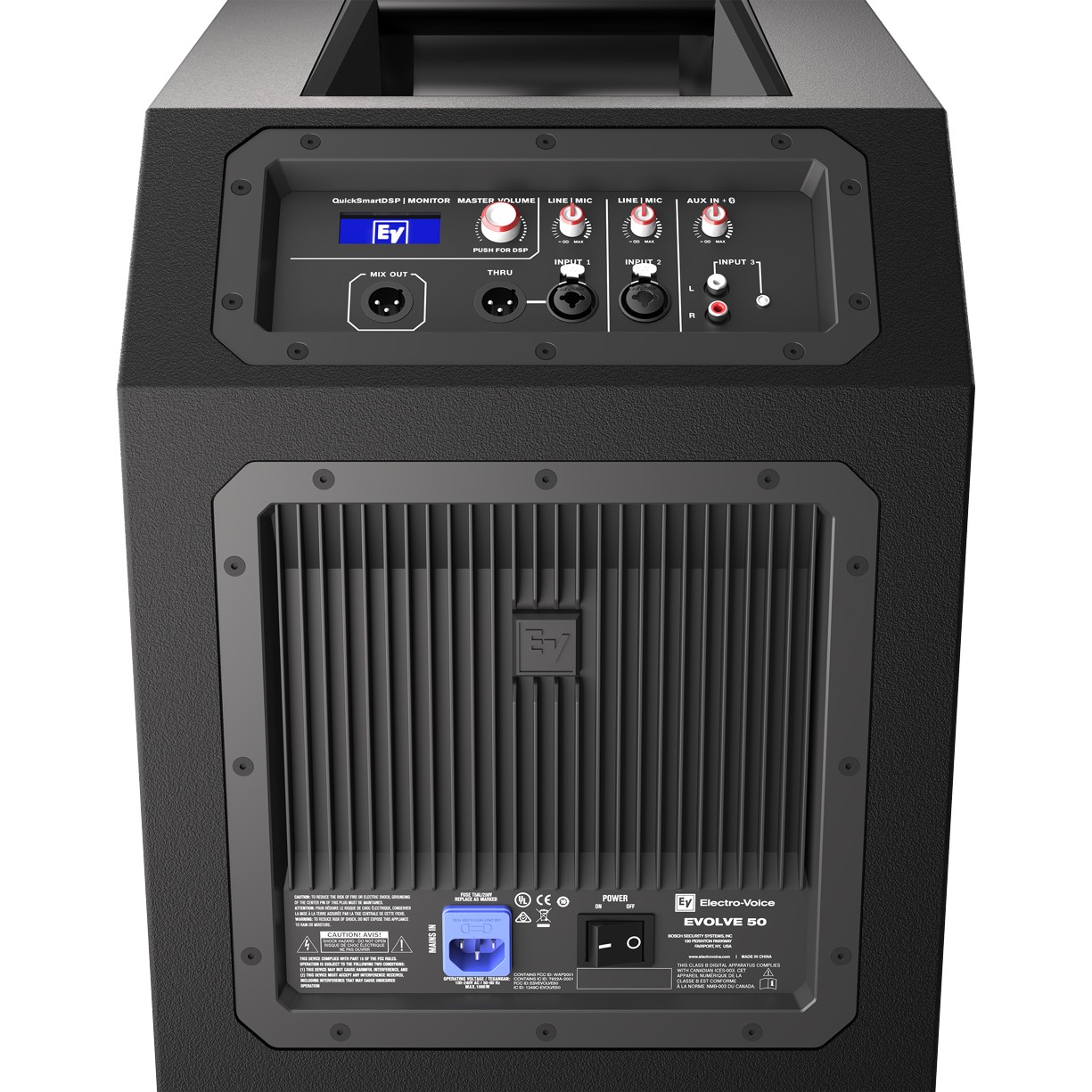

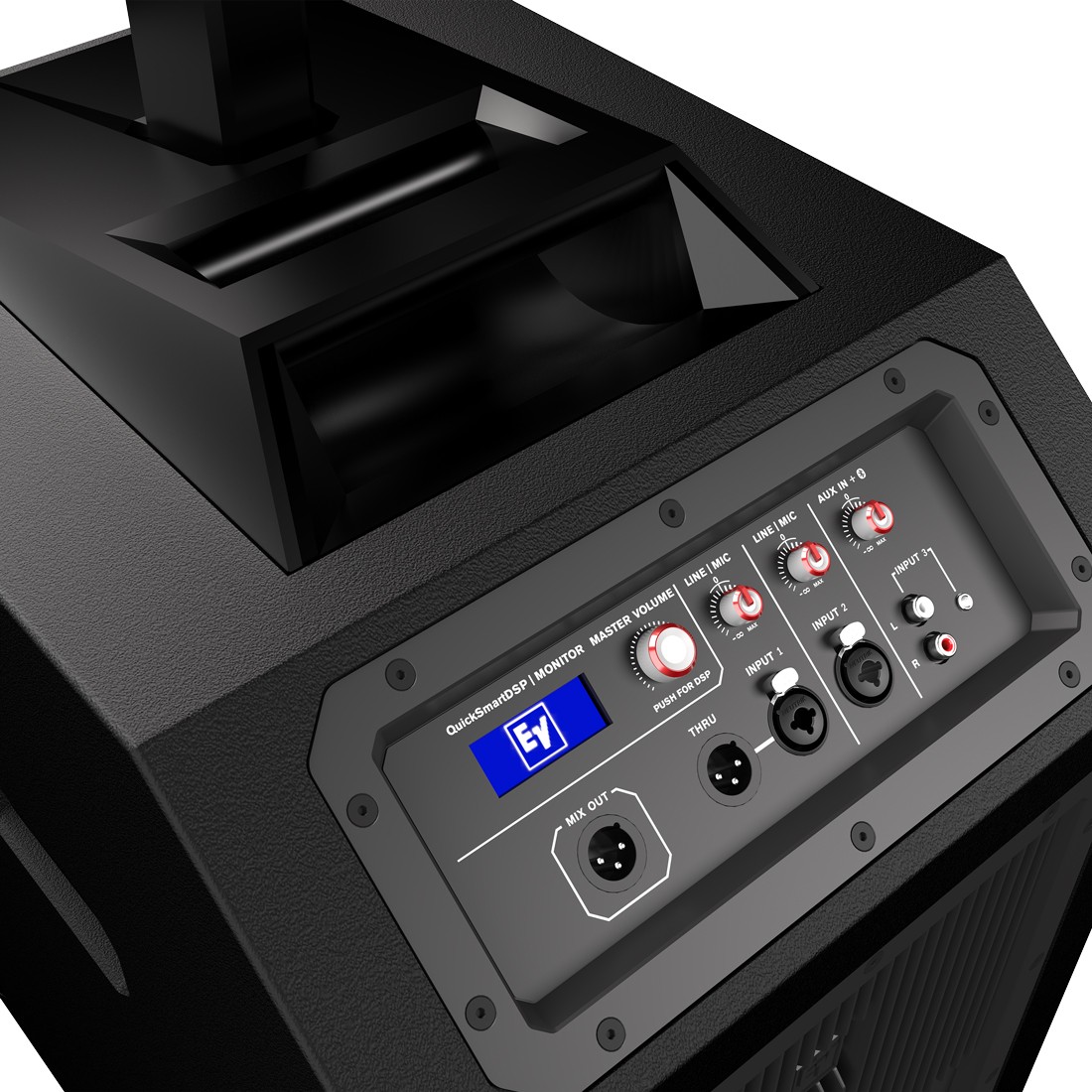

- Ergonomically designed handles on both the array and the sub to enhance portability. Angled interface gives the user easy access to make adjustments and connections on the input panel.
- Real PA performance
- Legendary EV audio quality via eight 3.5‑inch full‑range drivers and a 12‑inch subwoofer, powered by a three‑channel amp for high output. Cutting‑edge components and tuning provide full‑sized sound in a super‑streamlined, plug‑and‑play format.
- Wide, even coverage
- Custom waveguides provide ultra-wide 120° horizontal coverage and array‑formed 40° asymmetrical vertical pattern control. No energy is wasted — exceptional audience coverage and clarity from front to back.
- High‑quality Bluetooth®* audio
- For convenient streaming of background music or musical accompaniment direct from any mobile device.
*Bluetooth® is available in select countries. - Wireless control and monitoring via the new Bluetooth®* QuickSmartMobile app
- Quickly configure up to six EVOLVE 50 systems simultaneously, and receive immediate notification during critical performance conditions.
- QuickSmartDSP provides best‑in‑class processing via EV's signature single‑knob user interface with LCD
- Easy setup via four presets (Music, Live, Speech, Club), three‑band EQ, five user‑programmable presets, output delay, phantom power, input level control and metering, and master volume control to optimize gain structure.
- Specification
Frequency Response (-3 dB) 43 Hz – 20 KHz Frequency Range (-10 dB) 37 Hz – 20 KHz Maximum SPL 127 dB Coverage (H x V) 120° x 40° LF Channel Rating 500W HF Channel Rating 500W Amplifier Rating 1000W Crossover Frequency 200 Hz Connectors 2x XLR/TRS combo jack input
1x 3.5 mm Input
1x Stereo RCA input
1x Wireless Bluetooth® audio input
1x XLR THRU output
1x XLR MIX OUT outputEnclosure Sub: 15 mm plywood
Column: Composite
Pole: AluminumGrille Steel with black powder coat Color Black Power Consumption 100 - 240 V AC, 50 - 60 Hz, 1.5 - 0.6 A Dimensions (H x W x D) Sub: 20.9" (530 mm) x 13.6" (345 mm) x 18.5" (471 mm)
Column: 32.5" (825 mm) x 4.0" (102 mm) x 6.9" (172 mm)
Pole: 36.6" (929 mm) x 1.9" (48.5 mm) x 2.2" (55 mm)Net Weight Sub: 44.66 lbs (20.3 kg)
Column: 10.34 lbs (4.7 kg)
Pole: 2.75 lbs (1.25 kg)
Sub Cover: 0.9 lbs (0.4 kg)
Bag for Column and Pole: 1.87 lbs (0.85 kg)Shipping Weight Sub Box: 50.71 lbs (23 kg)
Column Box: 18.30 lbs (8.3 kg)- Documents
Documents
- In The Box
In The Box
- (1) EVOLVE50-TB
- Column Array Speaker
- Pole
- Carry Bag
- (1) EVOLVE50-SB Subwoofer
- (1) Power Cord
- EVOLVE 50 Installation Manual
- Warranty Card
- Safety Manual
