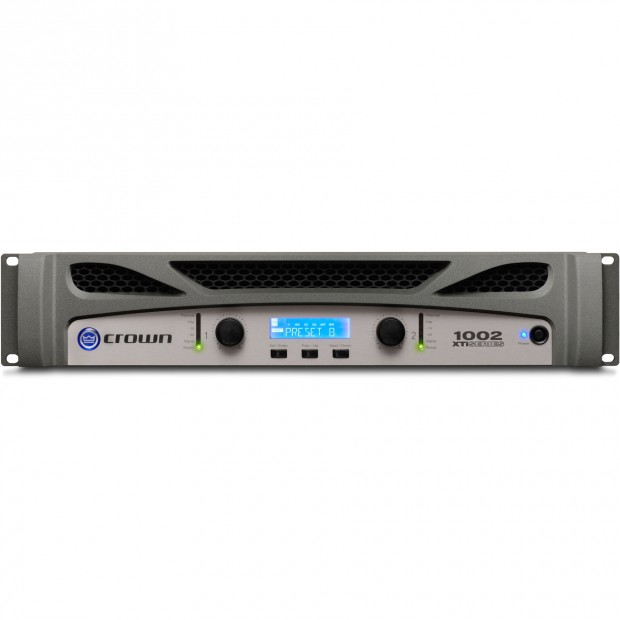

Crown XTi 1002 2-Channel Stereo Power Amplifier 2 x 215W @ 8 Ohms
Part # NXTI1002-U-US
Model # XTI1002

The Crown XTi 1002 is one of the most powerful and innovative amplifiers on the market today with unmatched performance and value, delivering the goods night after night without breaking a sweat.

Availability: Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email [email protected] or call us at 888-256-4112.

Need Quantity Pricing?

We provide quantity discounts for contractors & installers, schools, government, and military buyers on select brands and products.

Talk To An Engineer

Description

Details

Crown XTi 1002 2 x 215W @ 8 Ohms Power Amplifier

There's no debate – when you choose Crown's XTi 2 Series, you're choosing one of the most powerful and innovative amplifiers on the market today. That's because the all-new XTi 2 Series amps continue to set the standard for unmatched performance and value, delivering the goods night after night without breaking a sweat.

With such innovations as a universal tracking switch-mode power supply and a fully integrated suite of speaker processing tools, these amps are at the top of their class when it comes to thermal efficiency and system flexibility.

You also have greatly improved control capabilities. The addition of Peakx Plus™ Limiters gives you full command over threshold, attack and release, and we enhanced the Subharmonic Synth so you can easily manage frequency, gain and filter type, allowing for application-specific tuning.

Plus, you'll now be able to tailor fan speed for specific applications and have software visibility of the Power Supply Temperature and AC Line Voltage. Combine all of that with integrated cast-aluminum rack handles for maximum durability and portability and you have the power to move you – and the world.

Features

Features

  • Peakx Plus™ Limiters provide the ultimate in system performance and protection by allowing full control over threshold, attack and release
  • Enhanced Subharmonic Synth section provides user control over frequency, gain and filter type for system-specific tuning
  • 3 User-defined fan mode controls – normal, early and fullspeed – for matching fan performance to a specific application
  • New system monitoring provides software visibility of AC line voltage and power supply temperature
  • Integrated cast-aluminum handles for easy handling and enhanced durability
  • Locking power cord clip provides a secure connection between the amplifier and power cord
  • Updated HiQnet Band Manager™ and System Architect™ control software
  • Increased number of presets to a total of 30; 29 of which are user definable
Specification
Input EQ6 parametric filters per channel with adjustable Q, ±15 dB boost/cut
Crossover FiltersHighpass and Lowpass per channel. Butterworth 6/12/18/24 dB per octave
Output EQ8 parametric filters per channel with adjustable Q, ±15 dB boost/cut
DelayFor signal alignment of driver; 50 mS of total delay
SubHarmonic SynthTakes the low-frequency content of the input signal and "synthesizes" a new signal
Peak Plus LimiterUser defeatable limiter that allows users to control Threshold, Attack, and Release times
Presets30 total presets, 29 of which are user-definable
Sensitivity1.4 Vrms
Frequency Response+0 dB, –1 dB (at 1 watt, 20 Hz - 20 kHz)
Signal-to-Noise Ratio100 dB (A weighted) below rated 1kHz power at 8 ohms
Total Harmonic Distortion< 0.5%
Damping Factor 20 Hz to 1 kHz> 500
Crosstalk20 kHz - 1 kHz: > 70 db
Input Impedance20k ohms balanced, 10k ohms unbalanced
Maximum Input Signal+22 dBu typical
AC Line Voltage and Frequency Configurations100 VAC, 120 VAC, 220-240 VAC 50/60 Hz
AC Line Current6.8A; no more than 38W at idle
Operating Temperature0°C to 40°C at 95% relative humidity (non-condensing)
LevelTwo front-panel rotary level controls, one for each channel
Power SwitchOn/Off switch applies AC power to the amplifier
Sel/Prev/Next ButtonsThree buttons near the LCD screen that are used to access menu items and front panel lockout
LCD ScreenBacklit liquid crystal display that shows preset and processing status
Input ConnectorsXLR, one per channel
Link/Out ConnectorLoop-thru signal from input connector for linking another amplifier, one per channel
Output ConnectorsTwo Neutrik Speakon NL4MP output connectors
HiQnet USB ConnectorType B, connects to HiQnet network
ChassisSteel
Front PanelCast-Aluminum
CoolingProportional speed fan with front-to-rear airflow
2Ω Stereo (per ch)700W
4Ω Stereo (per ch)275W
8Ω Stereo (per ch)215W
4Ω Bridge-Mono1400W
8Ω Bridge-Mono1000W
Dimensions (H x W x D)3.5" (88.9 mm) x 19" (482.6 mm) x 12.25" (311.15 mm)
Net Weight18.5 lbs (8.4 kg)
Shipping Weight21.5 lbs (9.8 kg)
