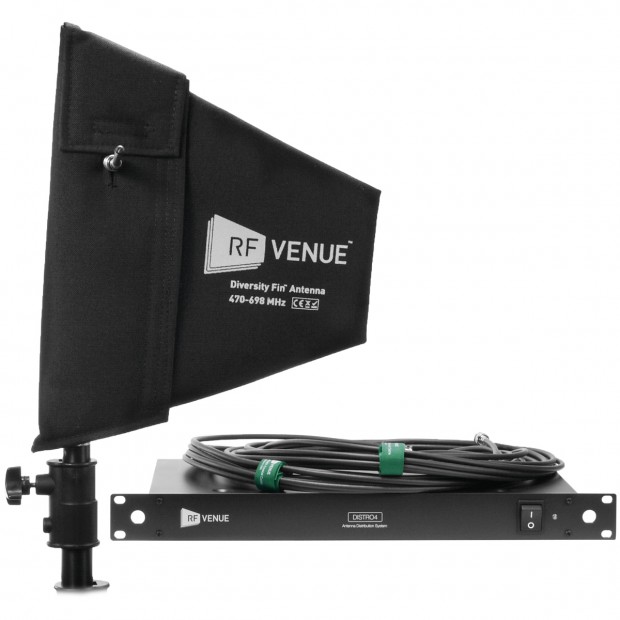

RF Venue DFINDISTRO4 Diversity Fin Antenna DISTRO4 Bundle

The RF Venue Diversity Fin Antenna DISTRO4 Bundle is a complete kit for wireless microphone systems now with networked remote RF spectrum monitoring.

The 4-Channel Antenna Distributor with Cloth-Covered Diversity Fin Antenna and Cables Bundle from RFvenue features the DISTRO4 which supplies RF and DC power to four wireless microphone systems of any brand, allowing for splitting two incoming antenna signals across multiple receivers.

This premium bundle for wireless microphone systems includes:

• Diversity Fin Antenna - the leader in remote antennas
• DISTRO4 - 4 channel antenna distributor with cascade
• RG8X 25' Made and tested in USA premium coaxial cables



The bundle also includes the cloth-covered DFIN Diversity Fin Antenna, a portable, simple to operate wireless microphone antenna that reduces microphone dropouts and interference in tough RF environments. Multiple-thread microphone stand mounts are provided.

DC and RF jumper cables required for four-channel microphone system operation are also included, along with two 25-foot RG8X coaxial cables.

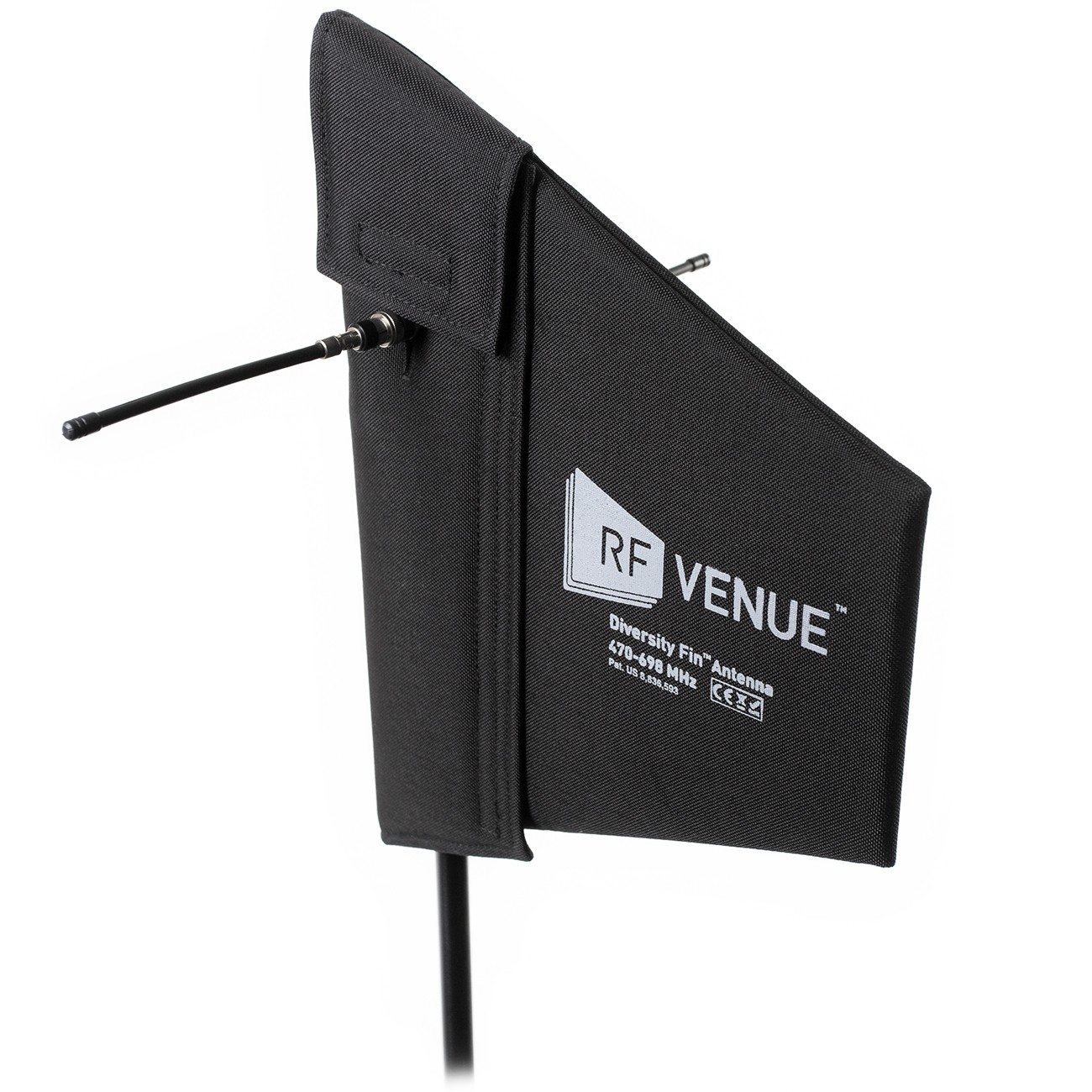

DFIN Diversity Fin Antenna with Cover:

• Designed to be used with wireless microphone systems
• Dual branch diversity reception
• Optimal polarization diversity reception
• Improves signal constancy in indoor and reflective environments



DISTRO4 Antenna Distribution System with Cascade:

• Two or more units may be cascaded together to accommodate five or more receivers
• 2000 mA internal power supply
• Supplied accessories: (10) BNC Jumpers, (4) DC Cables, (1) AC Cable

DFIN Diversity Fin Spec Sheet

DISTRO4 Distribution Spec Sheet

Two Zone Distribution Diagram

Polarization Diversity Application Notes

• (1) Diversity Fin Antenna
• (1) DISTRO4 - 4 Channel Antenna Distributor with Cascade
• (2) RG8X 25' Premium Coaxial Cables
• (4) Coaxial RF Cables
• (4) DC Power Jumpers
