Conceived, engineered and built with precision in the United Kingdom, VX Series represents the latest evolution of Tannoy’s core philosophies in professional loudspeaker design. VX 5.2 is a new type of device, adding new capabilities to the range with its exceptional acoustic clarity, precise definition and balanced acoustical performance. It provides a sonically superior solution for smallscale performance sound reinforcement as well as high performance speech reproduction where clarity and natural vocal reproduction are paramount. The VXP 5.2 been sonically matched with the wider range of VXP Series models, this allows consistency in installations where a mix of products is utilized.

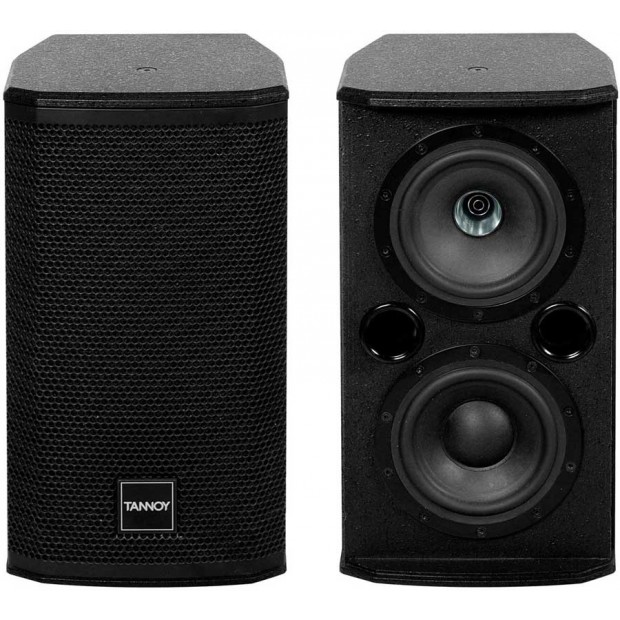

The VX 5.2 is built around two discrete transducers, a 125 mm (5”) Dual Concentric™ driver and a 125 mm (5”) bass driver for low-mid extension. Both are mounted in a rugged birch plywood cabinet with aesthetically profiled edges and AirnetTM-backed, powder-coated steel grille. The latest high power-handling 125 mm (5”) version of Tannoy’s exclusive point source, constant directivity Dual Concentric drive unit technology ensures high power output with high sensitivity and exceptional efficiency. VX 5.2 delivers a well defined 120 degree horizontal by 90 degree vertical dispersion for optimum coverage, exceptional forward gain plus the added benefit of improved low-mid extension from the new twin driver configuration.
Audio connection is via connector strip or NL 4MP speakON located on the termination panel. An extensive range of high performance steel mounting hardware, custom designed for VX 5.2 includes a yoke bracket and omni-mount for wall and ceiling location and eyebolt location points. For absolute security and installers’ peace of mind, all hardware has been tested and certified to guarantee greater than 5:1 safety ratio.
The VX 5.2 is available in black or white textured paint finish as standard (with matching grilles), and is also available in custom matched RAL colours as an option. The optional weather protected specification (WP) includes LINE-X cabinet outer-coating, internal sealing and treated transducers with perforated Grade 316 stainless steel grilles. All steel hardware is upgraded to Grade 304 stainless steel, while all connector panel points are protected by a cover plate and weather-proof cable gland. Additional ordering lead time applies to all non-standard specifications.- Features
Features
- 125 mm (5”) Dual Concentric full-range driver and 125 mm (5”) bass driver
- Well defined 120 x 90 degree dispersion for optimum coverage and forward gain
- Peak output 117 dB SPL @ 1 m, recomended amp power 280W @ 8 ohms
- Versatile mounting via optional custom designed hardware
- Exceptional sound and performance in a highly compact cabinet
- Rugged birch plywood enclosure
- Available in black or white textured paint finish – custom colors optional
- Available in weather protected specification (optional)
- Specification
Frequency Response (-3 dB) 87 Hz - 35 kHz Frequency Range (-10 dB) 65 Hz - 45 kHz System Sensitivity (1W @ 1m) 90 dB (1W = 2.83V for 8 ohms) Dispersion (-6 dB) 120 degrees (H) x 90 degrees (V) Driver Complement 1 x 125 mm (5”) constant directivity Dual Concentric 1 x 125 mm (5”) bass driver Rated Max SPL 111 dB (average)
117 dB (peak)Power Handling Average: 130W
Programme: 260W
Peak: 520WRecommended Amplifier Power 260W @ 8 ohms Connectors 1 x speakON NL 4MP, 2 x 4 mm binding posts Dimensions (H x W x D) 13.1" (333 mm) x 7.1" (180 mm) x 7.9" (200 mm) Net Weight 11 lbs (5 kg) Shipping Weight 23.1 lbs (10.5 kg) - Documents
