Lowell 25LVC 25W Mono Volume Control - Stainless Steel

By Lowell

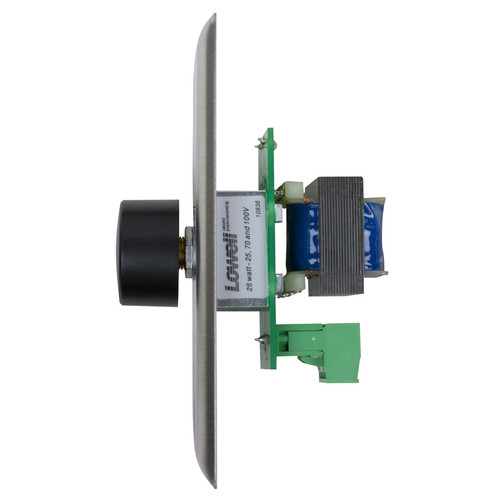

Lowell 25LVC 25W Mono Volume Control - Stainless Steel

Name: Lowell 25LVC 25W Mono Volume Control - Stainless Steel
Brand: Lowell
SKU: LOWELL-25LVC
Price: 48.93 USD
Availability: InStock

Write a Review

Part #:

25LVC

Model #:

25LVC

Current Stock:

MSRP: $55.60

$48.93

Availability: Usually arrives in 5-9 business days.

Quantity:

Adding to cart… The item has been added

Certified Audio
Expertise

FREE Custom
System Design

Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

The Lowell 25LVC volume control is a 25W autoformer attenuator (volume control) with 3dB steps, It's great for use with a 100/70/25V speaker line. It includes a 1-gang standard wall plate with a rotary knob in variety of colors and is ETL Listed.

Description

Lowell's 25LVC volume controls are installer-friendly and provide high-quality level adjustment of single or multiple speaker lines. The Lowell 25LVC is a single gang unit that mounts in a minimum depth of 2.125". All units have phoenix-style removable screw termination strips for pre-wire with capacity for 14G wire. It's 3db/step or 1.5db/step as noted. Models with priority relay (24VDC @ 5mA) allow emergency and paging signals to bypass (override) the attenuator.

This 25W autoformer attenuator (volume control) with 3dB steps for great for use with a 100/70/25V speaker line. It includes a 1-gang standard wall plate with a rotary knob in a variety of colors and is ETL Listed.

Features

25W power rating
3dB per step attenuation
Rotary switch (10–Off). Stops at "Off" and "10" (noncontinuous rotation)
Easy-connect, phoenix style plug-in screw termination strips for pre-wire convenience; wire capacity up to 14-gauge
Standard or decorator style one-gang wall plate in various colors
Fits standard single gang E.O. box with minimum depth of 2.125" (order separately)
ETL Listed

Specifications

Power Rating	25W
Attenuation	3dB per step (33dB total)
Use With	25/70/100V speaker line
Activation	Rotary dial
Volume Positions	0-10
Termination	Phoenix-style
Wire Capacity	14-gauge
Wall Plate	1-gang standard
Finish	Stainless Steel
Dimensions (H x W x D)	2.75" (69.85 mm) x 4.5" (114.3 mm) x 1.75" (44.45 mm)
Weight	1 lbs (0.454 kg)
