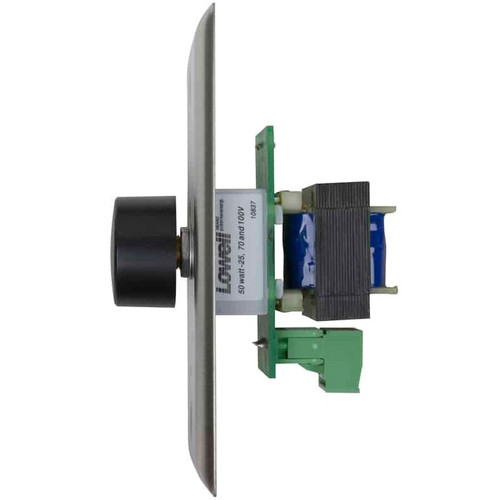

The 50LVC volume control provides high quality level adjustment of single or multiple speaker lines. The Lowell 50LVC is a single gang unit that mounts in a minimum depth of 2.125". All units have phoenix-style removable screw termination strips for pre-wire with capacity for 14ga wire. It is 3db/step or 1.5db/step as noted. Models with priority relay (24VDC @ 5mA) allow emergency and paging signals to bypass (override) the attenuator.
This 50W autoformer attenuator (volume control) with 3dB steps is for use with 100/70/25V or 8ohm speaker line (depending on model selected). Includes 1-gang standard wall plate with rotary knob. Wall plates are offered in variety of finishes. ETL Listed.
| Model | 50LVCS |
|---|---|
| Product Type | Stereo Volume Control Attenuator |
| Power Rating | 50W |
| Type | Auto-trans |
| Switch Type | Rotary |
| Switch Positions | 10-off |
| Attenuation Step / Total | 3dB / 33dB |
| Mounts E.O. Box (Order Separately) | E.O. Box with 2.5” Minimum Depth Also Mounts Lowell’s P1X 1-Gang Surface Box |
| Dimensions (Plate Width) | 2.75" |
| Dimensions (Plate Height) | 4.5" |
| Dimensions (Recessed W x H x D) | 1.875" x 2.875" x 2.5" |
| Weight | 1 lbs |
