Lowell ES-8-RIB Rough-in Bridge for 8" ES Series Ceiling Speakers
Lowell ES-8-RIB Rough-in Bridge for 8" ES Series Ceiling Speakers
Lowell ES-8-RIB Rough-in Bridge for 8" ES Series Ceiling Speakers
By Lowell

Lowell ES-8-RIB Rough-in Bridge for 8" ES Series Ceiling Speakers

Write a Review
Part #:
ES-8-RIB
Model #:
ES-8-RIB
MSRP: $26.20
$23.06
Availability:

Must Be Purchased in Multiples of 10.
Usually arrives in 5-9 business days.

Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

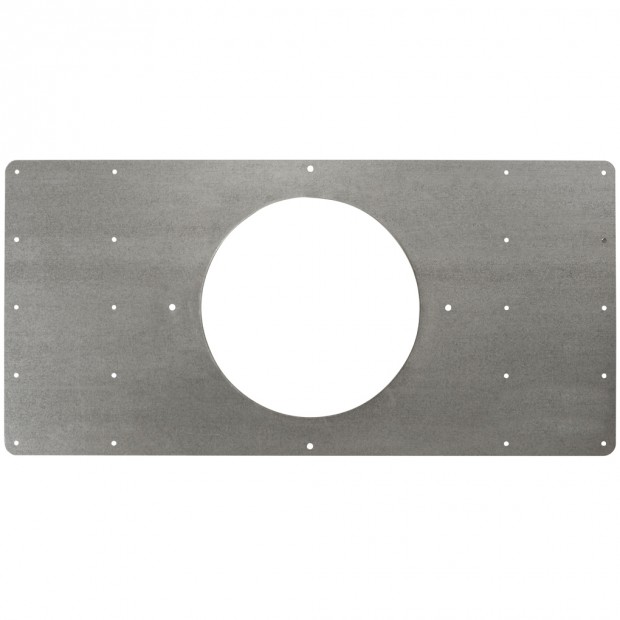

This Lowell ES-8-RIB rough-in bridge is designed to be mounted in new construction, drywall or plaster ceiling before finished ceiling is installed to serve as a placeholder for ES-82CDT, ES-8TSUB, or ES-82T ceiling speakers.

Description

This Lowell ES-8-RIB rough-in bridge is designed to be mounted in new construction, drywall or plaster ceiling before finished ceiling is installed to serve as a placeholder for ES-82CDT, ES-8TSUB, or ES-82T ceiling speakers. Built tough with 20-gauge steel construction with a galvanized finish, it features 3/16" diameter mounting holes on 16" and 24" centers.

Features
  • Construction: Formed 20-gauge steel construction — lightweight, rigid support
  • Finish: Galvanized finish
  • Mounting Holes: Pre-set (3/16" diameter) mounting holes on 16" and 24" centers
  • Dimensions: 25" x 16.5"
  • Center Opening: 11.75" diameter
  • Origin: Made in the U.S.A.

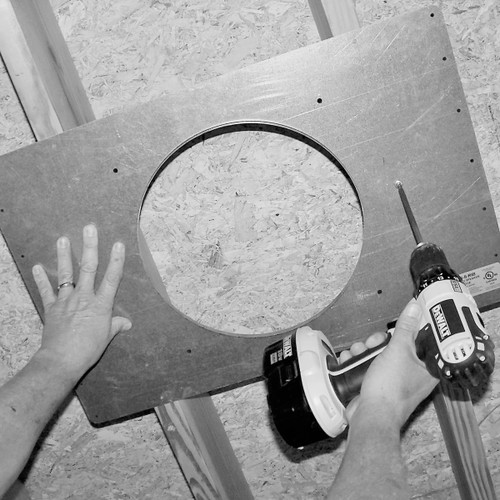

  • Installation: Mount to joists, rafters, trusses, metal rails, or other ceiling support structures. NOTE: Because the types of screws required to mount the bridge vary widely depending on the construction of the ceiling structure, mounting screws are not included with the bridge and should be supplied by the installer
  • Compatible Speakers (sold separately): Lowell ES-82T: 8" 120W coaxial speaker with transformer, grille, enclosure -  Lowell ES-82CDT: 8" 150W coaxial speaker w/transformer, grille, enclosure - Lowell ES-8TSUB: 8" 120W subwoofer w/transformer, grille, enclosure

Specifications
Dimensions 25" (635 mm) x 16.5" (419.1 mm)
Center Opening 11.75" diameter
Mounting Holes Pre-set (3/16" diameter) mounting holes on 16" and 24" centers
