The ESP Series pendant speakers are engineered to acoustically match the ES Series of recessed speakers, enabling the integration of exceptional performance with even coverage no matter the type of architecture encountered. ESP speakers feature a built-in bracket for mounting with pipe or cable but they also have threaded insert points to add an optional U-bracket for wall or truss-mount. The sleek design, quality performance and versatile mounting options make the ESP Series suitable for a wide variety of applications that require clear speech and full frequency music. Includes driver, transformer, enclosure, grille.

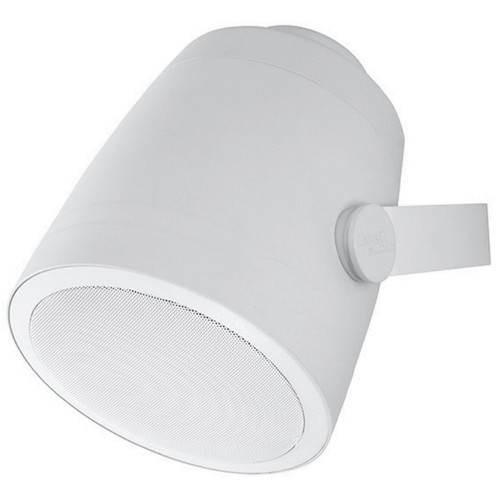

The magnetic-mount top hides an integral bracket for cable or pipe installation. An optional U-bracket can be added to threaded insert points on the sides for wall or truss-mount.
| Power Handling | 50W RMS (at 8 ohms) measured per EIA Standard RS-426B |
|---|---|
| Sensitivity | 88.6 dB log average SPL (at 8 ohms) @1W/1M over the frequency response range, measured in full-space |
| Maximum SPL | 105.6 dB (calculated based on power rating and measured 8 ohm sensitivity) |
| Impedance | 8 ohms (nominal), 4.0 ohms @ 12461 Hz (min.) Note: Selector knob shows 4 ohm position as mandated by UL for minimum impedance |
| Frequency Response | 64Hz – 20kHz (±6dB) |
| Conical Dispersion Angle | 120 degrees conical @2kHz octave (-6dB) |
| Crossover Frequency | 3kHz |
| Transformer Taps | 100V (32, 16, 8, 4.2W); 70V (32, 16, 8, 4, 2W); 25V (4.4, 2.2, 1.1, .55, .28W) |
| Input Terminals | 4-conductor removable Phoenix-style connector |
| Optional Mounting Accessories | ESP-CBL Gripple Cable & Fastener Kit: Includes 2 Gripple No. 2 hook-end hanging cables with quick-install Express fasteners, load rating of 100 lbs. ESP-6-BRKTW Bracket: Black U-style bracket attaches to the speaker at threaded insert points for wall or truss-mount. ESP-6-PG Paint Guards: Plastic guards for 6-1/2 inch speakers. 10-pack. |
| Dimensions (H x Dia) | 12.6" (320.2 mm) x 10" (255 mm) |
| Weight | 8.3 lbs (3.76 kg) |
| Shipping Weight | 10 lbs (4.53 kg) |
Installation: The pendant speaker can hang from cable or pipe. It can also be used for wall- or truss-mount by adding the optional U-bracket. Order all mounting hardware separately.
