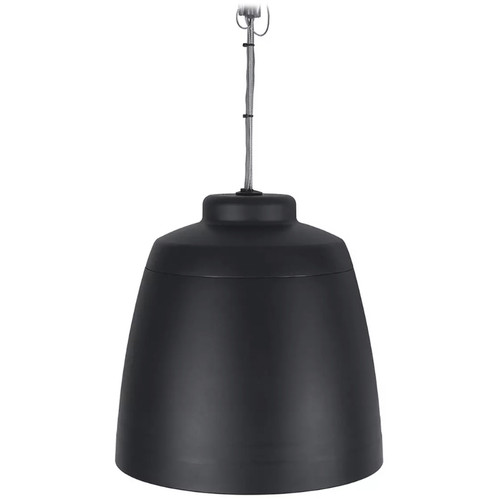

Lowell ESP-82TB 8" 120W Coaxial Pendant Speaker - Black

Description

Lowell ESP-82TB 8" 120W Coaxial Pendant Speaker

The ESP Series pendant speakers are engineered to acoustically match ES Series Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered. The speaker can be mounted with cable or pipe, or an optional U-bracket can be added to surface-mount. Includes driver, transformer, enclosure, grille.

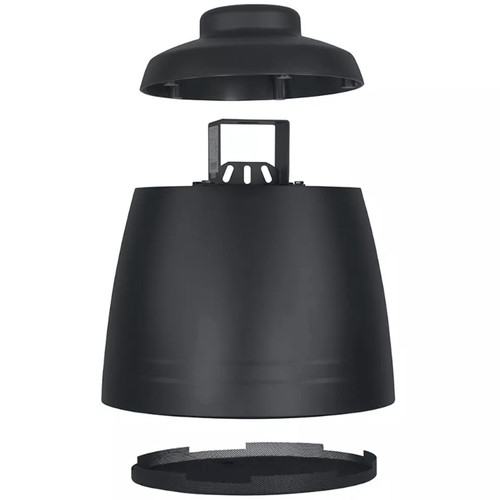

The magnetic-mount top hides an integral bracket for cable or pipe installation. An optional U-bracket can be added to threaded insert points on the sides for wall or truss-mount.

Features

• Performance:  ESP Pendant Speakers are engineered to acoustically match the ES Series of Recessed Speakers, enabling high performance to integrate with even coverage no matter the type of architecture encountered
• Quick Install:  The sleek tapered enclosure with press-fit grille has a magnetic-mount top that easily clicks into position, hiding the integral top bracket and wiring connections
• Extremely Versatile:  The speaker can be mounted with cable or pipe, but it's also suitable for wall- or truss mount if the optional U-bracket is mounted to the threaded side insert points

Specifications

Power Handling	120W RMS (at 8 ohms) measured per EIA Standard RS-426B
Sensitivity	90.0 dB log average SPL (at 8 ohms) @1W/1M over the frequency response range, measured in full-space
Maximum SPL	110.8 dB (calculated based on power rating and measured 8 ohm sensitivity)
Impedance	8 ohms (nominal), 4.6 ohms @ 14 kHz (min.)
Frequency Response	64Hz – 20kHz (±6dB)
Conical Dispersion Angle	105 degrees conical @2kHz octave (-6dB)
Crossover Frequency	1.8kHz
Transformer Taps	100V (120, 60, 30, 15W) 70V (120, 60, 30, 15, 7.5W) 25V (15, 7.5, 3.75, 1.88, 0.94W)
Input Terminals	4-conductor removable Phoenix-style connector
Optional Mounting Accessories	ESP-CBL Gripple Cable & Fastener Kit: Includes 2 Gripple No. 2 hook-end hanging cables with quick-install Express fasteners, load rating of 100 lbs. ESP-8-BRKTB Bracket: Black U-style bracket attaches to the speaker at threaded insert points for wall or truss-mount. ESP-8-PG Paint Guards: Plastic guards for 8 inch speakers. 10-pack.
Dimensions (H x Dia)	13.8" (349.3 mm) x 13.38" (339.73 mm)
Weight	15.6 lbs (7.08 kg)
Shipping Weight	19.4 lbs (8.80 kg)

DOCUMENTS

In The Box

• Driver: 8" 120W coaxial driver
• Transformer: 120W transformer with tap selector switch mounted behind grille. Tap selections for 25V, 70V or 100V speaker systems plus 4 ohm transformer bypass position
• Enclosure: Tapered durable ABS plastic enclosure with matching magnetic-mount top to hide wiring connections and rigging bracket. The ported enclosure is tuned for extended bass response. Removable phoenix-style connector
• Grille: Fine mesh 20-gauge CRS press-fit grille with UV-rated black powder coating includes scrim and pull-tool
