Lowell LER-3527 35U Enclosed Stand-Alone Rack
Lowell LER-3527 35U Enclosed Stand-Alone Rack
Lowell LER-3527 35U Enclosed Stand-Alone Rack
Lowell LER-3527 35U Enclosed Stand-Alone Rack
By Lowell

Lowell LER-3527 35U Enclosed Stand-Alone Rack

Write a Review
Part #:
LER-3527
Model #:
LER-3527
MSRP: $1,486.00
$1,307.68
Availability: Usually arrives in 5-9 business days. Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112
Email

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM 1-888-256-4112
Email Contact us by email or
our simple form. SEND EMAIL

The LER-3527 enclosed or stand-alone floor rack offers solid structural support for electronics. Includes rear door. Front door is optional (order separately).

Description

The LER-3527 enclosed or stand-alone floor rack offers solid structural support for electronics. Includes rear door. Front door is optional (order separately).

The EIA/TIA/RoHS compliant, stand-alone LER-3527 floor rack is 67.375" H x 27" D x 23.06" W with panel space of 35 rack units. The load capacity is 3150 lbs.This rack includes a recessed rear door with vents and key lock, welded side panels with vents, top with 7U opening and combination knockouts, open base with grounding stud, one pair adjustable front mounting rails with printed RU increments, combination knockouts above and below rear door, and provisions to mount an optional surface-mount front door or rear rails (ordered separately). Manufactured in the U.S.A. with certified U.S. steel and has a black wrinkle powder epoxy finish, UL Listed to UL2416.

Features
  • Frame: Fully welded 16-ga. steel with 14-ga. base, reinforced at load-bearing junctions for strength equivalent to 11-ga. steel. Overall height is 67.375" (35U useable) Overall depth is 27" (24.34" useable)
  • Front: Open front with beveled corners and vents above and below main opening. Clearance from rails to outside frame (flush) is 1.75." A surface-mount front door is available as an option

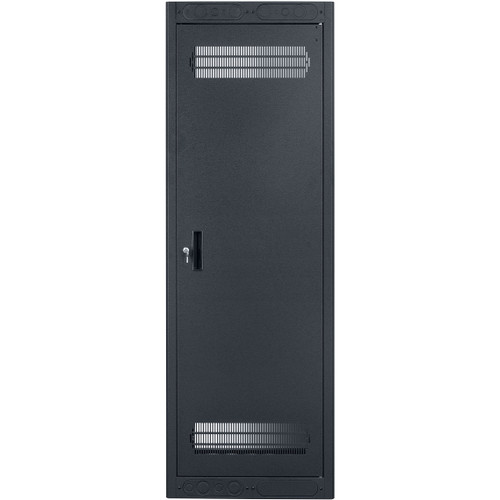

  • Rear: Includes recessed rear door with vents and key lock. Door can be omitted by ordering Model No. LER-3527-LRD. Combination knockout panels above and below rear door include .5" for wireless antennas, .75-.5" and 1.5-1" for conduit. A blank project panel is located below rear door
  • Top: Features 7U opening with riveted rails, taped 10-32, which can be closed with 2 black steel panels included as shipping stiffeners. Optional 19" accessories can also be mounted here. The top also features a 6"D rear plane with 3 combination knockouts for conduit (2-1"), 2 for conduit (1.5- 1") plus room to use a Greenlee style punch for 4" conduit. Four .5" knockouts for BNC style wireless antennas
  • Open Base: 14-ga. steel frame with full size opening facilitates floor entry of cables. The base has provisions to readily accept mounting an optional mobile or stationary platform base or leg levelers (pg. 3), as well as anchor bolts (not included). Includes grounding stud in one corner

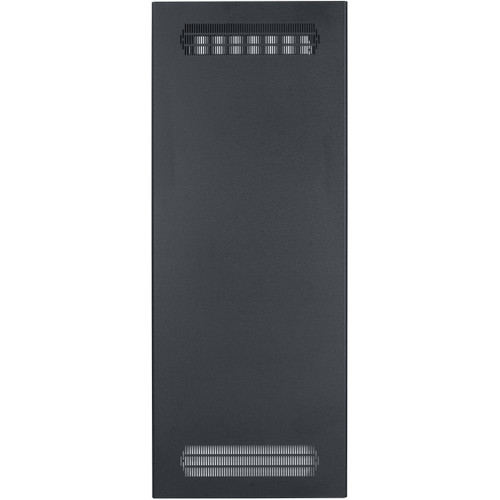

  • Welded Side Panels: Vents at top and bottom are designed to accept optional fan kits
  • Adjustable Rails: Includes 1 pr. front mounting rails tapped 10-32 with printed rack unit increments for quick set-up. Rails are fully adjustable and can be set anywhere along side rail supports. Rear rails are optional
  • Cable Management: Combination knockouts above and below rear door
  • Thermal Management: Vents in top, sides, and rear door are made to accept optional fan kits
  • Load Capacity: 3150 lbs
  • Compliance: EIA/TIA/RoHS compliant, UL2416 Listed
  • Finish: Black wrinkle powder epoxy
  • Hardware PilotPoint™ screws with captive washers
