Lowell SM810A UL Listed Sound Masking Speaker - White

Part #:
SM810AW
Model #:
SM810AW
MSRP: $132.80
$96.28
Availability: Call for Availability Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Adding to cart… The item has been added
Certified Audio
Expertise
FREE Custom
System Design
Get Expert
Help Fast

Ask an Expert

Our expertly trained Sales Engineers are ready to help!

(888) 256-4112

Get a Quote, Price or Support Fast!

We want to make contacting us as fast and as easy as possible. Please reach out if you have any questions or concerns about our products, system design, technical support, or orders.
Phone Monday - Friday
8:00 AM - 5:00 PM
1-888-256-4112
Email Contact us by email or
our simple form.
SEND EMAIL

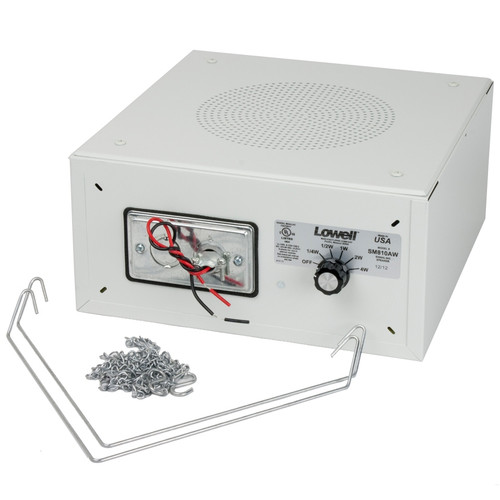

The Lowell SM810AW UL Listed SM series sound masking speaker, which consists of a speaker 8”dual cone, transformer, steel enclosure with grille, and choice of mounting hardware.

Description

A sound masking system helps provide greater conversational privacy and productivity in the workplace by adding specially shaped ambient noise to an open-office environment. Sound masking speakers are typically positioned above the finished lay-in tile ceiling in plenum space; however, models with a white finish are sometimes specified for use in open-architecture truss-type ceilings.

Along with a sound masking speaker, you will need a specially designed sound masking generator to feed the system, as well as an amplifier. Lowell offers stand-alone sound masking generators (that can feed a mic or line level signal to an external amplifier), as well as generators with built-in power amplifiers. Order the generator and amplifier separately from the speaker.

Features

  • UL Listed, ready to install
  • Choice of speaker type (8" 15W dual cone, 8" 50W coaxial, 4" single cone)
  • Factory-wired transformer (taps at 4, 2, 1, 1/2, 1/4 @ 70V)
  • 760 cu.in. steel enclosure (acoustically lined with fiberglass) and grille. Black or white finish
  • SG handibox cover with dual combination knockouts for flex conduit. Romex connector for installations without conduit
  • Externally accessible input leads
  • Mounting hardware (hangers with S-hooks and chain for single-point suspension OR bridge rails for installation directly on lay-in tile ceiling grid)

Specifications

Speaker Type 8" dual cone
Transformer Taps 4, 2, 1, 0.5, 0.25 @ 70V
Enclosure Volume 760 cu. in.
Frequency Response 117 Hz - 6.9 kHz ± 7 dB
Sensitivity 97.1 dB
Dispersion 115° conical
Mounting Hardware Included Wire hangers/chain
Weight 8.6 lbs (3.9 kg)
