By Mackie

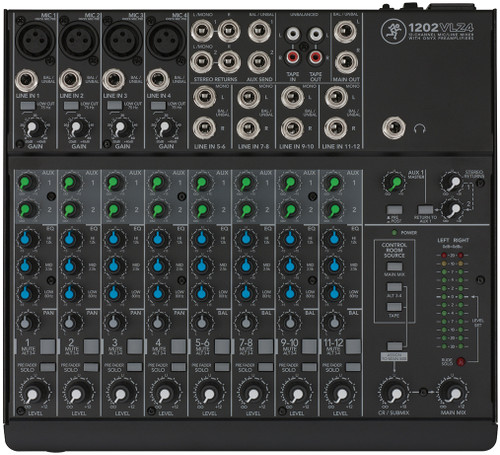

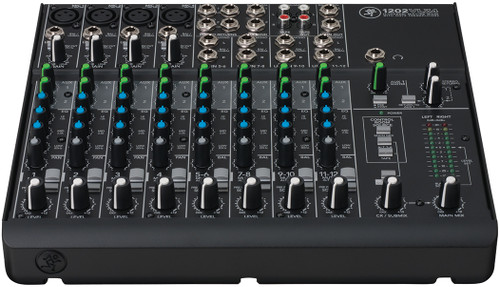

Mackie 1202VLZ4 12-Channel Compact Mixer
Write a Review
Mackie 1202VLZ4 12-Channel Compact Mixer
Part #:
2060195-00
Model #:
1202VLZ4
MSRP:
$330.00
$329.99
Availability:
Usually arrives in 5-9 business days.
Please be aware that global supply shortages outside our control may interfere with our normal delivery times and product availability. For more information, email sales@proacoustics.com or call us at 888-256-4112.
Certified Audio Expertise
FREE Custom System Design
Get Expert Help Fast
Description
The 12-channel 1202VLZ4 delivers the outstanding quality of Mackie’s flagship Onyx preamps in a compact mixer design with the high-headroom/low-noise performance your professional application demands. From every input to every output, you can count on the industry-proven performance you expect from a VLZ mixer. Plus, it is truly “Built-Like-A-Tank” with a ridiculously rugged solid steel chassis plus high-contrast controls for ultimate tactile control. And with features like a dedicated control room section, the 1202VLZ4 offers a true step up in flexibility and performance that’s ideal for your professional application.
Features
- 12-channel mixer featuring Mackie signature high-headroom/low-noise design
- 4 boutique-quality Onyx mic preamps
- Ultra-wide 60dB gain range
- 128.5 dB dynamic range
- +22 dBu line input handling
- Extended frequency response
- Distortion under 0.0007% (20Hz – 50kHz)
- Improved RF rejection perfect for broadcast applications
- Phantom power for condenser mics
- 12 high-headroom line inputs
- 4 balanced inserts perfect for integrating outboard gear
- 3-band EQ (80Hz, 2.5kHz, 12kHz)
- 18 dB/oct 75Hz low-cut filter on mic input channels
- 2 aux sends, level, pan and PFL solo on each channel
- 2 stereo returns for connecting FX processor or other stereo source
- ALT 3/4 stereo bus for added routing flexibility
- Control room / phones source matrix
- High-resolution 12-segment stereo meters
- Sealed rotary controls resist dust and grime
- “Built-Like-A-Tank” rugged steel chassis with powder-coat finish
- High-visibility, high-contrast controls deliver convenient “at-a-glance” visual feedback
- Rack-mountable design using optional rack ear kit
- Multi-voltage power supply for worldwide use
Specifications
| Main Mix Noise | |
|---|---|
| Main Mix (Knob Down, Channel Gain Knobs Down) | –100 dBu |
| Main Mix (Knob Unity, Channel Gain Knobs Down) | –86.5 dBu (90 dB Signal to Noise Ratio, ref +4 dBu) |
| Total Harmonic Distortion (THD) | |
| Mic Pre @ Insert | 0.0007% |
| Attenuation (Crosstalk) | |
| Main Mix Knob Down | –75 dBu |
| Channel Alt / Mute Switch Engaged | –85 dBu |
| Channel Gain Knob Down | –87 dBu |
| Frequency Response | |
| Mic Input to Main Output (Gain @Unity) | +0, –1 dB, 20 Hz to 50 kHz +0, –3 dB, 100 kHz |
| Equivalent Input Noise (EIN) | |
| 150Ω Termination | –128.5 dBu 20 Hz–20 kHz |
| Common Mode Rejection Ratio (CMRR) | |
| 1 kHz | better than –70 dB |
| Maximum Levels | |
| Mic In | +22 dBu |
| Tape In | +16 dBu |
| All Other Inputs | +22 dBu |
| Main Mix XLR Out | +22 dBu |
| All Other Outputs | +22 dBu |
| Impedances | |
| Mic In | 2.5 kΩ |
| Channel Insert Return | 2.5 kΩ |
| All Other Inputs | 10 kΩ or greater |
| Tape Out | 1.1 kΩ |
| All Other Outputs | 120 Ω |
| EQ | |
| High Shelving | ±15 dB @ 12 kHz |
| Mid Peaking | ±15 dB @ 2.5 kHz |
| Low Shelving | ±15 dB @ 80 Hz |
| Power Consumption | |
| Watts | 252W |
| Fuse Rating | |
| 100-120V | 500 mA slo blo, 5 x 20 mm |
| 220-240V | 250 mA slo blo, 5 x 20 mm |
| Dimensions (H x W x D) | 10.7" (272 mm) x 11.9" (303 mm) x 3" (75 mm) |
| Weight | 6.5 lbs (3.0 kg) |
